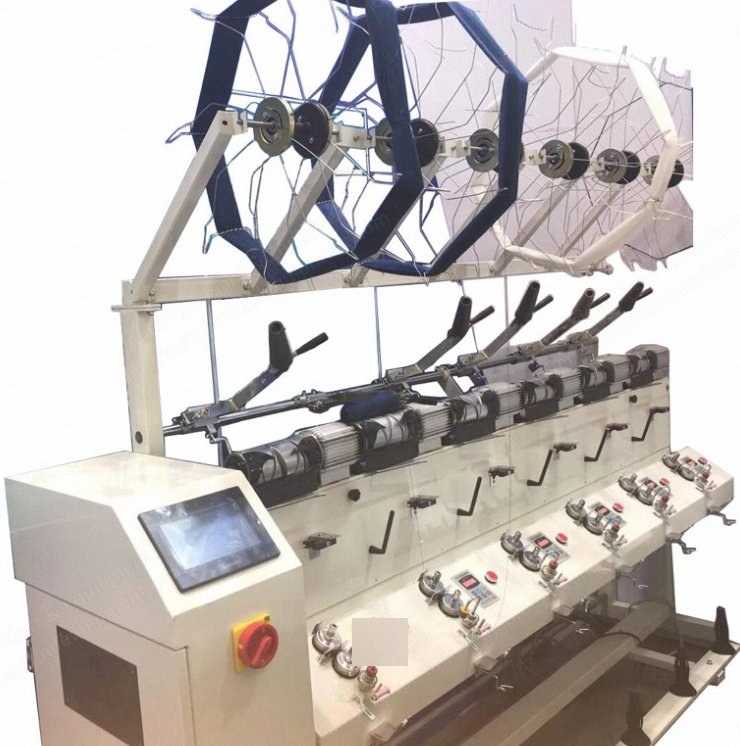

NovaStar, WN350, Cone to Hank Winding Machine, 4 Spindles, 100-800 m/min, AC220V (New)

NovaStar, WN350, Cone to Hank Winding Machine, 4 Spindles, 100-800 m/min, AC220V

Description

  1. Overview
    1. Cone to hank winding machine is used for winding the cone yarns to a specified length of hank yarns.
  2. Features
    1. It can wind the yarns from cone tube to yarn reel.
    2. It supports uniform control for all the spindles and individual control for each spindle.
    3. The uniform control is through touch panel, the individual control is through microcontroller.
    4. Driven by brushless dc motor.
    5. The winding speed can be adjusted.
    6. Each spindle has auto-stop function when yarn breaks.
    7. Mini-type design, easy to clean, set and maintain.
  3. Key Specifications
    1. Spindle number: 4 or specify.
    2. Hank number: same as spindle number.
    3. Spindle speed: 100~800 m/min, adjustable.
    4. Wobb range: 0~30%.
    5. Count range: 0~999,999, settable.
    6. Amplitude: ±5%.
    7. Duration: 3.0 s.
    8. Power supply: AC220V, 50 Hz.
    9. Dimensions: 1.610 x 650 x 2.000 mm (L x W x H).
    10. Net weight: 165 kg.
