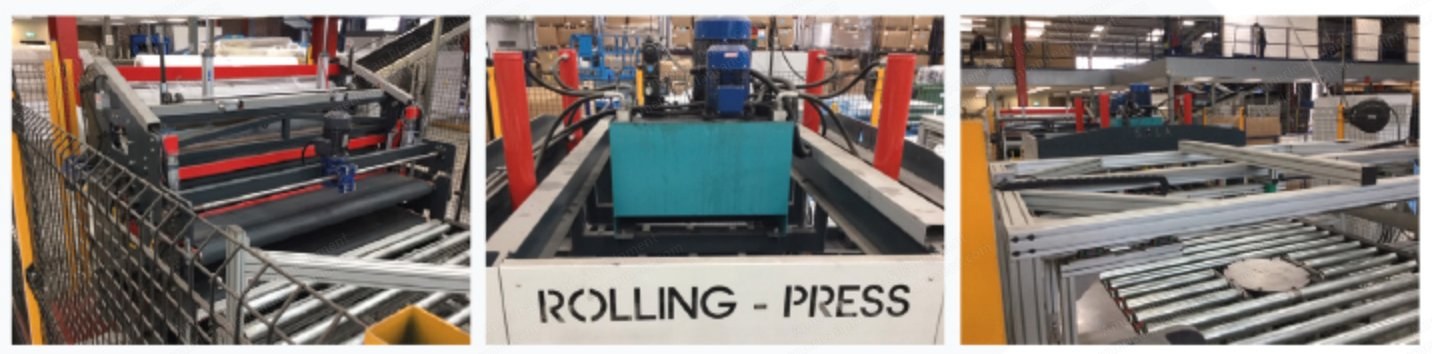

MPT Group, Mattress Rolling Press, 5 Stations, 270-500mm Variable Diameter, 1800x2000mm Max Size

MPT Group, Mattress Rolling Press, 5 Stations, 270-500mm Variable Diameter, 1800x2000mm Max Size

Description

  1. Overview
    1. Product types: foam, memory foam, latex, bonnell spring and pocket spring mattresses.
    2. Maximum size to roll (foam): 1800 x 2000 x 300 mm.
    3. Maximum size to roll (bonnell springs): 1800 x 2000 x 200 mm.
    4. Maximum size fold and roll (foam only, maximum density 35 kg/m³): 1800 x 2000 x 200 mm.
    5. Folding pocket spring or bonnell mattresses is not recommended as this may damage the mattress.
  2. Rolled Mattress Diameter Limits
    1. Pocket springs mattress: diameter depends on spring hardness and number; maximum mattress height is 200 mm.
    2. Bonnell springs mattress: diameter depends on spring hardness and number; maximum mattress height is 200 mm.
    3. Single and double foam mattress: diameter depends on foam hardness (maximum 190 newton, density 70 kg/m³); maximum mattress height is 300 mm.
    4. Latex mattress: diameter depends on latex hardness (maximum 100 newton, density 70 kg/m³); maximum mattress height is 300 mm.
    5. Memory mattress: diameter depends on memory hardness (maximum 100 newton, density 70 kg/m³); maximum mattress height is 300 mm.
    6. For combinations of these products, preventive tests are necessary to verify feasibility; some limits of the rolling operation apply.
  3. Fold and Rolled Mattress Diameter Limits
    1. Pocket springs: not possible to fold and roll.
    2. Bonnell springs: not possible to fold and roll.
    3. Single and double foam mattress: diameter depends on foam hardness (maximum 100 newton, density 35 kg/m³); maximum mattress height is 300 mm.
    4. Latex mattress: diameter depends on latex hardness (maximum 100 newton, density 35 kg/m³); maximum mattress height is 300 mm.
    5. Memory mattress: diameter depends on memory hardness (maximum 100 newton, density 35 kg/m³); maximum mattress height is 300 mm.
  4. Production Specifications
    1. 2 mattresses per minute without folding.
    2. Approximately 1 mattress per minute with folding for highest density mattresses.
    3. The line will fold the mattress along its length (e.g., 2 meters length is folded to 1 meter).
  5. Specifications
    1. Capacity: 5 Stations
    2. Rolling station diameter: 270-500mm variable
