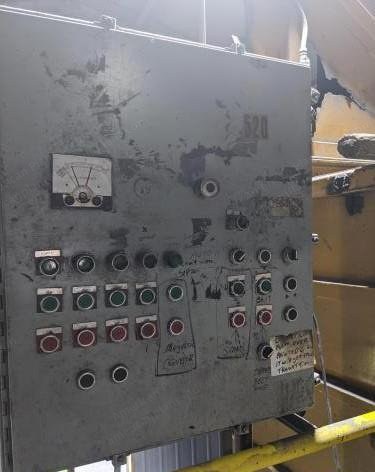

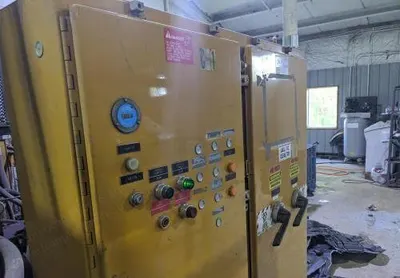

Description Overview Inlet: 55" x 38" Outside dimensions: 130" x 61" x 43" Weight: 20,000 lbs Power Unit Dimensions: 96" x 86" x 96" Weight (dry): 8,000 lbs Open loop, skid mounted Electrical power: 200 hp (2 x 100), optional 150-300 hp Hydraulic flow: 156 gpm Rated pressure: 3,000 psi Cutter Specifications Shaft torque: fast 64,776 ft/lbs, slow 78,653 ft/lbs Shaft speed: fast 22 rpm, slow 18 rpm Force: fast 77,732 lbs, slow 94,383 lbs Diameter at hooks: 20.5" Controls and Electrical Operator initiated pushbutton controls featuring Allen Bradley PLC Motor controls include primary disconnect with short circuit protection, full load contactors, and electronic overload detection Control power derived from a single-phase transformer All components assembled and wired in a NEMA enclosure SpecificationsWeight: 9071.85
