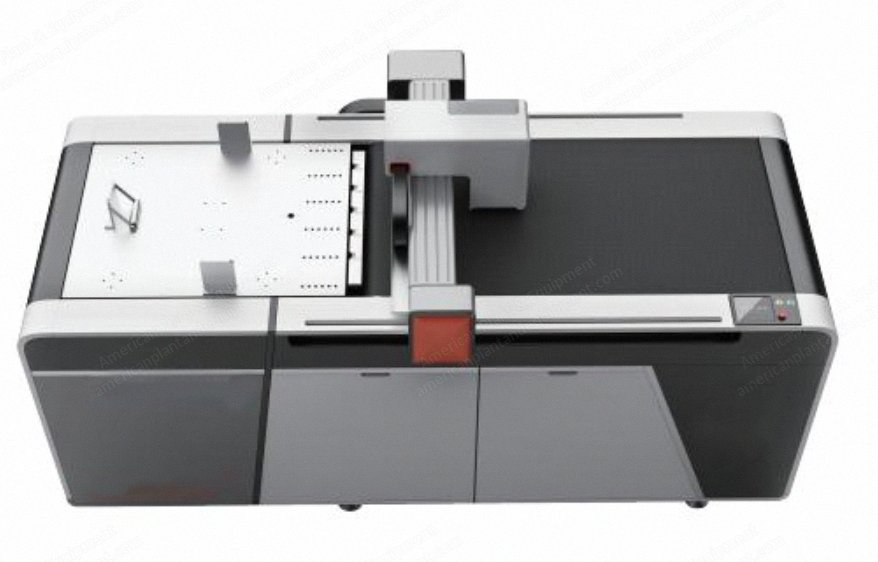

NovaStar, DN151, Operating Area 1200x900mm, Vacuum Adsorption, AC380V (New)

NovaStar, DN151, Operating Area 1200x900mm, Vacuum Adsorption, AC380V

Description

  1. Features
    1. Motors supplied by Japan’s Mitsubishi not only improve the performance of the equipment but also improve safety, ensuring cutting precision is more accurate, runs faster and more smoothly.
    2. The tool can be switched at any time according to different materials; a variety of optional tools: oscillating tool, universal cutting tool, kiss cut, graphic blade, creasing tool.
    3. Intelligent and efficient security collision avoidance system ensures the safety of personnel to operate.
    4. 7-inch large touch screen, one-click change parameters, to achieve man-machine dialogue.
  2. Technical Parameters
    1. Operating area: 1200 x 900 mm
    2. Package size: 4800 x 1600 x 1470
    3. Operating properties: work with computer synchronously for quick data transmission, multi-page file in one time
    4. Cutting materials: sticker, card paper, pp paper, corrugated board, honeycomb board etc.
    5. Standard tools: creasing wheel, universal cutting tool, graphic blade, small oscillating tool, ccd camera
    6. Optional: foam cut, v cut, driving rotary tool, milling tool, kiss cut
    7. Cutting thickness: ≤10 mm (according to different materials)
    8. Maximum speed: 300 to 1200 mm/s (according to different materials)
    9. Fix method: vacuum adsorption
    10. Repeat precision: ≤0.01 mm
    11. Software resolution: 0.025
    12. Interface: ethernet port
    13. Buffer memory: 2g, fast transmission for multi-page large file
    14. Command mode: hp-gl/gp-gl compatible format
    15. Control panel: 7 inch color touch screen
    16. Voltage/power: ac380v±10%, 50hz
    17. Fuse: 6a/30a
    18. Working environment: 0°c~35°c
  3. Optional Tools
    1. Depends on customer demands, not included in total price
  4. Main Parts

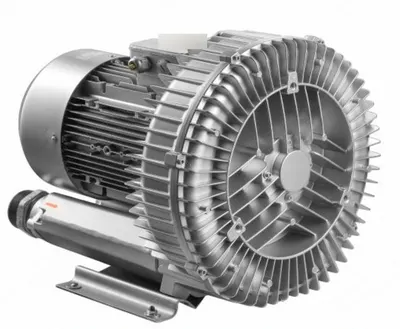

    1. Vacuum pump

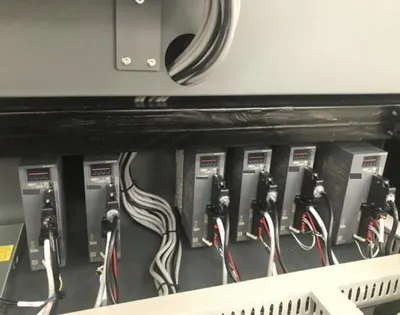

    2. 32 bits servo motors and drivers
    3. Aluminum vacuum table and imported felt
    4. Infrared anti-collision device
    5. Conveyor table
    6. Imported bearing and synchronous belt
    7. Self developed software: yes
    8. Dsp control system
