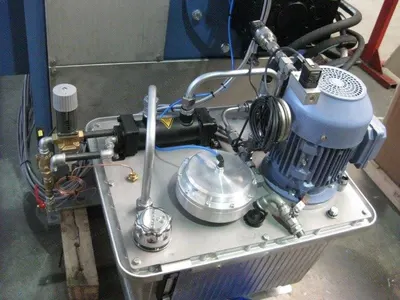

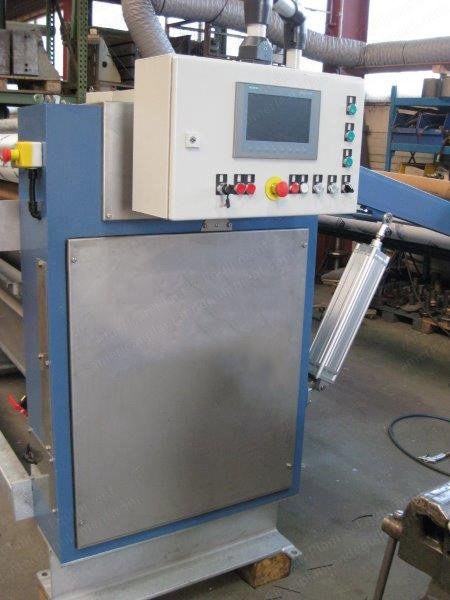

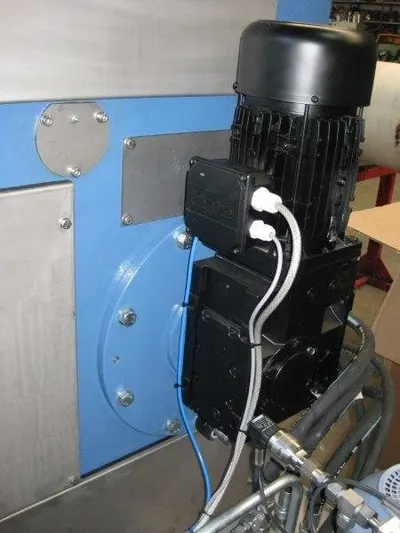

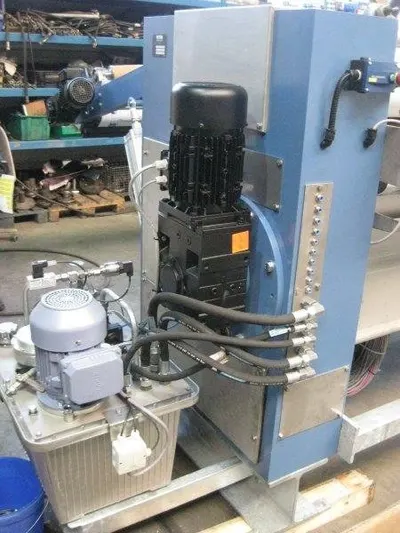

Description Overview Used cpb-dyeing plant according to type 222.11 Consisting of 2-bowl dyeing padder Make: Eduard Kusters Type: 222.11 Year: Completely refurbished before delivery Technical Data Working width: 2000 mm Roller face width: 2200 mm Drive side: Right Service side: Left Pressure: 50 kp/cm Total pressure: 10 to / 100 Nm Speed: 60 m/min Power: 5.5 kW Voltage: 3 x 400 V, 50 Hz Air connection: 6 bars locally Color of paint: According to agreement Components 2 s-rolls, covered with soft rubber, quality R 89 yellow, 70° shore, ∅220 mm 1 double-side trough for cooling and heating, made of inox 1.4301, capacity approx. 50 liters, with underliquor Squeezer (4 rolls) 1 cloth guiding: 2 guide rolls at inlet, 1 curved expander in front of the nip 1 safety device consisting of splashboard in front of and behind the trough 1 hydraulic board for separate pressure application Batching Device for Big-Batch Pneumatic moving rolling arm, mounted on frame roller, ∅200 mm, material: inox Pneumatic control for lifting and lowering of this arm and sensor for the drive unit “opening” Console with gear motor and cardan joint for drive of batch carrier, connection system “Menzel” 2-Components Dosing Pump Sera Capacity 1000 and 400 liters/h With constant control and liquor level control at the trough Complete Electronic Drive for Items 1 and 2 With frequency-controlled motor for v = 60 m/min Complete with electrical control, mounted in separate switch board execution corresponding to VDE and CE Mounted Feeding-In Gantry With tension rail, brake able, guide roll Cloth guiding E+L, type ELTWIN KFA 3910 with VWG 1 And edge guider KF 2040 Automatic Temperature Control for Trough Vapour pressure 0.8 bar
