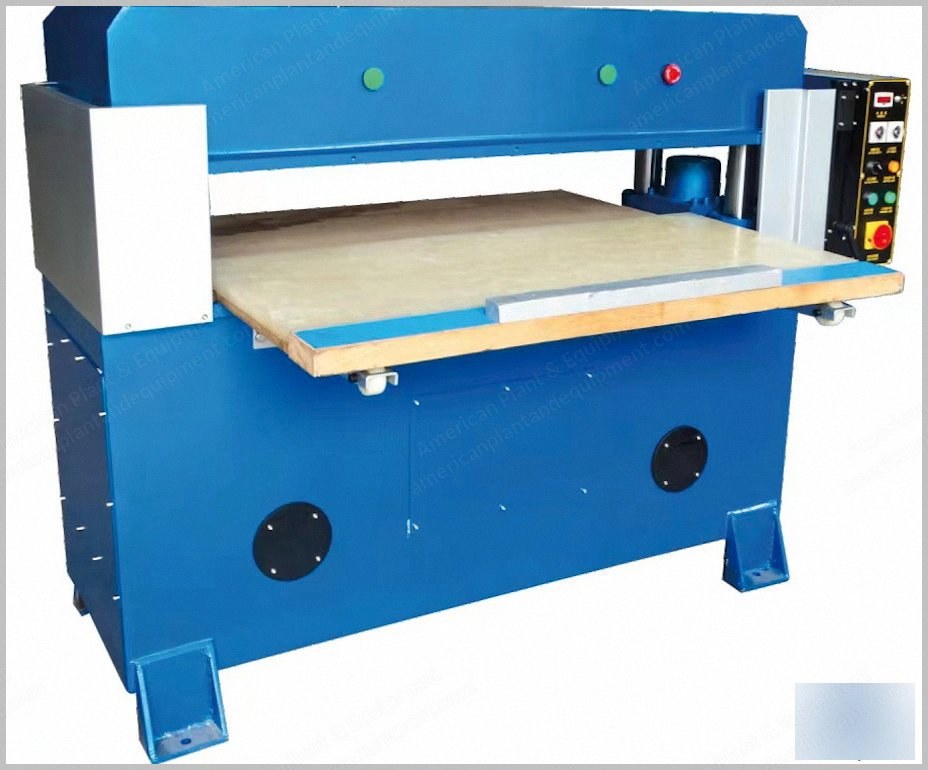

Description Overview Used for die cutting shoes, bags, cases, seat covers, facial masks, soft toys, cleaning sponges, artificial flowers, EPE, EVA, blister and abrasive tools. Suitable for single-layer or multi-layer sheet or roll materials. Specifications Cutting force: 50 tons. Cutting area: 610 x 1600 mm. Stroke: 50 to 160 mm. Motor: 4 kW. Dimension: 2330 x 1320 x 1260 mm. Net weight: 2400 kg. Features Auto-balanced structure by double-cylinder, four-column (self-balancing) connecting rod ensures equal pressure throughout working area. The die slows down when the cutting die touches the material to control the precision between upper and bottom for thick materials. Stroke adjustment device makes it simple to adjust the stroke and sets to adjust with cutting die, cutting board and materials. Central automatic lubrication system increases machine durability and prolongs working time. Optional PLC control system. Feeding roller. Feeding longer table. Remarks Cutting force and area can be as requested. Our series of machines have different strokes for different thicknesses of materials.
