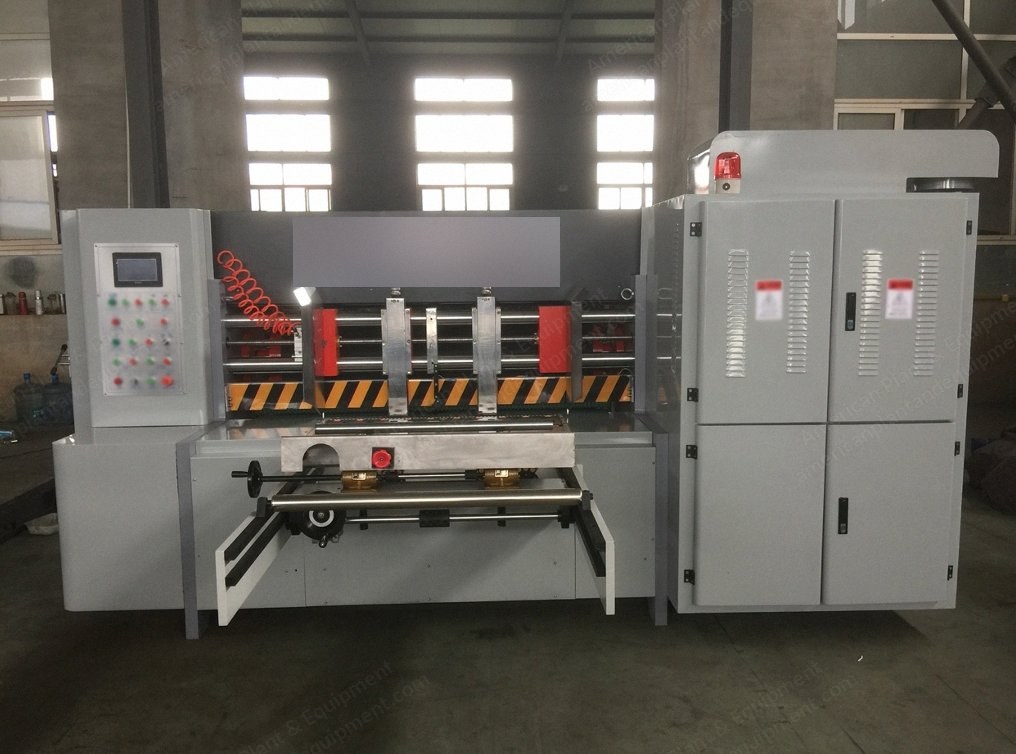

NovaStar, DT196, Automatic Rotary Die Cutter, Max Die Cutting Size 2100x1200mm, 120 pieces/min (New)

NovaStar, DT196, Automatic Rotary Die Cutter, Max Die Cutting Size 2100x1200mm, 120 pieces/min

Description

  1. Overview
    1. Fully computerised rotary die cutting machine with advanced leading edge cardboard feeding system (4 lines wheels design).
    2. Cardboard feeding with high precision, fast speed, and long feed wheel life.
    3. Feeds cardboard to achieve 10,000 pieces/hour.
    4. Design speed is 160 pieces/minute.
    5. Working speed is 120 pieces/minute.
    6. Die-cutting precision of ±1 mm.
    7. Double frequency changer control, main motor and draught fan.
  2. Electric Specification
    1. Man-machine interface, full precision computer PLC control system.
    2. Frequency conversion motor.
    3. Electric control system has famous brand electric parts.
    4. Electric elements are Schneider and Siemens brands.
  3. Cardboard Feeding Department
    1. Feeding with high precision, fast speed, feeding cardboard wheel life is long.
    2. Cardboard feeding can achieve 6,000 pieces/hour, accuracy ±1 mm.
    3. Equipped with adjustable fan, air volume can be adjustable, increases stability of thin plate and bending cardboard transport and accuracy.

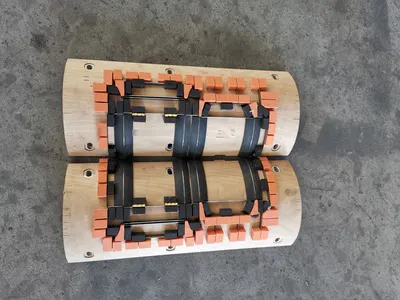

    4. Wooden dies roller 360 degrees with electric adjustment, start and stop can be adjusted, equipped with electronic counter function.
    5. Front baffle can be manually adjusted, side baffle can be electrically adjusted (computerized display screen controls parameters).
    6. The cardboard guide roller has grooved glue surface, to avoid crushing cardboard and increase the accuracy of cardboard feeding.
    7. The fan air volume can be adjusted as needed.
  4. Die Cutting
    1. Die Cutting Roller
      1. Centrifugal cast steel cylinder, dynamically balanced by computer, surface ground, hard chromium plating. Roller stability is very good.
      2. Die cutter fixed screw holes spacing of 100 x 100 mm.
      3. Maximum cutting die height 25.4 mm.
      4. Wooden die roller diameter: 550 mm (including the wooden die).
    2. Rubber Roller
      1. Cast steel material, surface grinding, hard chromium plating. Roller stability is very good.
      2. Balanced.
      3. Rubber thickness is 10 mm, width is 230 mm.
      4. Rubber roller diameter is 408.9 mm (including the rubber).
      5. Rubber is from Taiwan Maxdura brand.
    3. Horizontal Movement of Rubber Pad
      1. Mechanical horizontal 40 mm moving device, die-cutting uniform linear speed (rubber pad is a wear part, so in order to protect the rubber pad it can be moved to the left and right to ensure it is not always die cutting in the same place).
      2. Automatic compensation of weighing, can make the die cutting rubber wear evenly, prolong service life.
      3. Electric repair device, improves the rubber repeat utilization rate, can repair 3 to 4 times.
      4. Die-cutting roller automatic pneumatic separation device, reduces wear on the rubber pad.
  5. Specifications
    1. Model: 2200 x ∮360 automatic rotary die cutter.
    2. Inside width: 2400 mm (this is the width of the machine, the roller length is 2150 mm).
    3. Design speed: 100 pieces/minute.
    4. Maximum cardboard size: 2150 x 1200 mm.
    5. Maximum die cutting size: 2100 x 1200 mm.
    6. Minimum cardboard size: 350 x 600 mm.
    7. Suitable for cardboard thickness: 3 to 8 mm.
    8. Main motor: 7.5 kW.
    9. Draught fan: 7.5 kW.
    10. Production: 15 kW.
    11. Total: 16 kW.
    12. Die cutting precision: ±1 mm.
    13. Machine weight: 5 tons.
    14. Overall size: 2200 x 4500 x 2000 mm.
