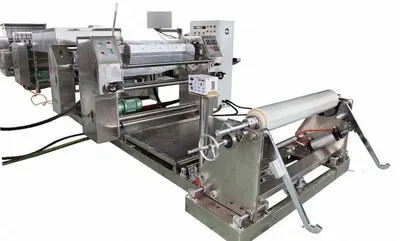

NovaStar, CG194, Medicine Plaster Patch Coating Machine, 1000mm Effective Width, 200kg Melting Box, 2-40m/min Speed (New)

NovaStar, CG194, Medicine Plaster Patch Coating Machine, 1000mm Effective Width, 200kg Melting Box, 2-40m/min Speed

Description

  1. Overview

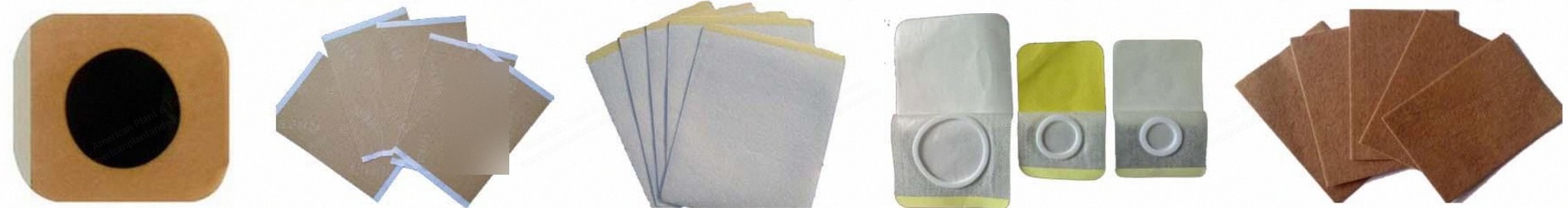

    1. Coating machine for applying medicine paste onto releasing paper, cooling, combining with non-woven fabric, cutting into small rollers, and rewinding.
    2. Two types available: type 1 and type 2.

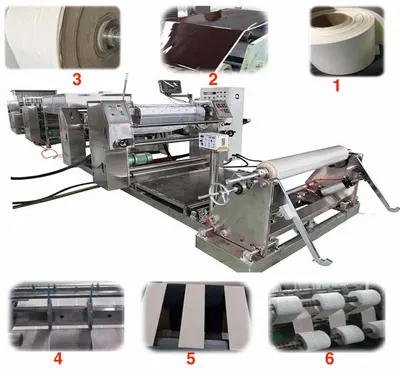

  2. Type 1 Coating Machine Details
    1. Releasing paper: coating the medicine paste on this paper.
    2. Coating cooling: after coating, cooling the paste.
    3. Nonwoven: after cooling, complex the nonwoven with the coated releasing paper.
    4. Cutter: after compounding the nonwoven and paste, releasing paper, cutting into small rolls (roll number is adjustable).
    5. Rollers: the roll’s width is adjustable, after cutting, rewinding it.
    6. Winding: rewinding and output (roll’s length is adjustable).
  3. Type 1 Coating Machine Technical Parameters
    1. Suitable raw material: white cloth, elastic cloth, nonwoven fabrics.
    2. Effective coating width: 1000 mm.
    3. Coating medicine dosage: 0.5 to 3 g / 100 cm² (adjustment).
    4. Coating speed: 2 to 40 m/min.
    5. Cooling box length: 1500 mm.
    6. Melting box volume: 200 kg.
    7. Machine size: 10160 x 3992 x 1800 mm.

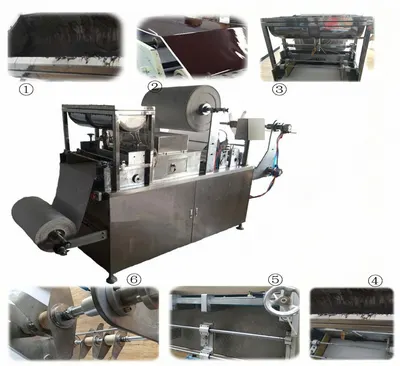

  4. Type 2 Coating Machine Details
    1. Hopper: medicine hopper (volume is customized).
    2. Coating cooling: after coating, cooling the paste.
    3. Hopper coating: incorporate to scraper coating method.
    4. Coating: incorporate to scraper coating method, coating on the releasing paper and complexed with the nonwoven.
    5. Cutter: after compounding the nonwoven and medicine, releasing paper, cutting into small rolls (roll number is adjustable).
    6. Winding: rewinding and output (roll’s length is adjustable).
  5. Type 2 Coating Machine Technical Parameters
    1. Power: AC380V (220 volt available); 18.5 kW / 25 kW.
    2. Working environment: temperature 10 to 40 °C, humidity 0 to 90%.
    3. Capacity: 3 to 8 m/min.
    4. Ointment thickness: 0.08 mm to 3 mm.
    5. Coating width: ≤600 mm.
    6. Dimensions: 10000 x 1500 x 1200 mm.
    7. Weight: 450 kg.
