Floor loading system: platform can lift up for convenient material loading and unloading, advantageous for fragile material cutting; second type is floor loading type; you can choose your preferred type.

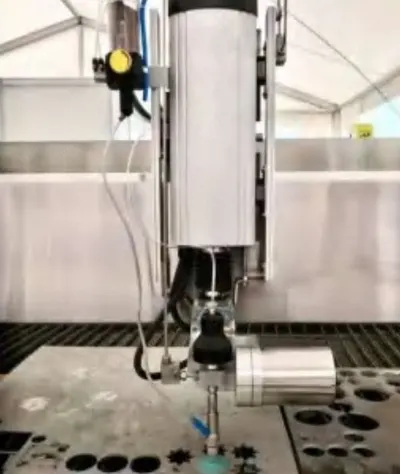

Upgrade to AB 5-axis cut head: designed for stone and metal cutting industry; can tilt up to 12° for cutting parts with small angles; when matching parts, top surface matches well with bottom one.
Upgrade to AC 5-axis for flat material: C axis is rotation axis, can rotate infinitely; A axis is angle axis, maximum tilt angle is 75°; for metal bevel cutting, marble parquet small angle cutting, marble countertop large angle cutting.

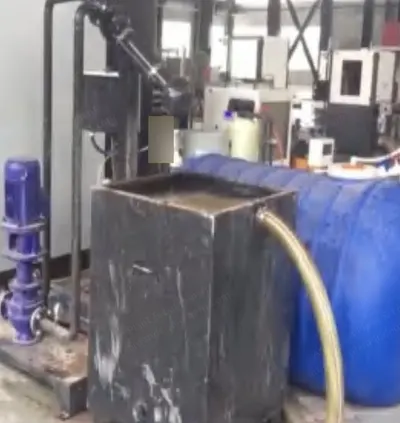

Auto sludge removal system: uses principle of centrifugal sedimentation and density difference to automatically clean sand remaining in water tank; sand and water are automatically separated; saves time and labor.

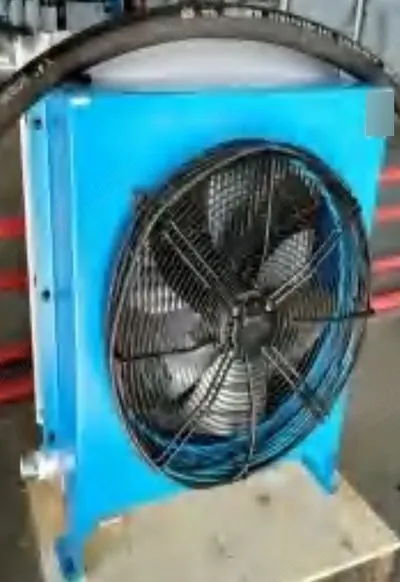

Industrial fan cooling system: used for cooling hydraulic oil automatically to increase working efficiency; does not need cooling water.
Water deionization system: removes calcium and magnesium ions from water to soften water; prolongs life span of parts in intensifier.
Technical Information - Waterjet System Components
Intensifier pump: maximum discharge of servo oil pump 106 L/min; maximum water discharge 3.7 L/min; maximum available orifice diameter 0.33 mm; maximum pressure 420 MPa; continuous working pressure 360-380 MPa; main motor power 37 kW (50 HP); power supply 380 V/50 Hz/3PH (220 V available); maximum oil pressure 20 MPa; length/width/height 1745/1045/1350; weight 1200 kg.

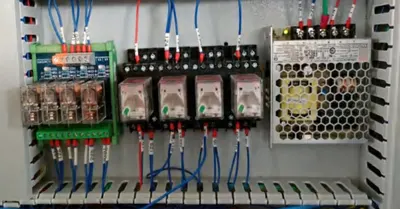

One main motor (Siemens AC induction motors); ambient temperature 5-40°C; PLC Omron brand (Japan); AC contractor Schneider brand; low/high pressure: low for drill, high pressure for cut; heat exchanger: water/oil panel cooler; control system: LP/HP auto control; temperature display: digital temperature display; shock absorber: shocking pads on each of four corners of motor to absorb vibrations.
Directional valve: Taiwan Yuken; relief valve: Rexroth brand; accumulator volume 1.3 L; low pressure filter 10 um; cutting water inlet pressure 0.3 MPa; cooling water inlet pressure 0.3 MPa; high pressure outlet connections M16 x 1.5; oil level and oil temperature sensor: standard components.
Advantage of A15+B intensifier: has two intensifiers, one works as backup; in case one breaks or needs spare parts replacement, you can transfer to other one to continue working.

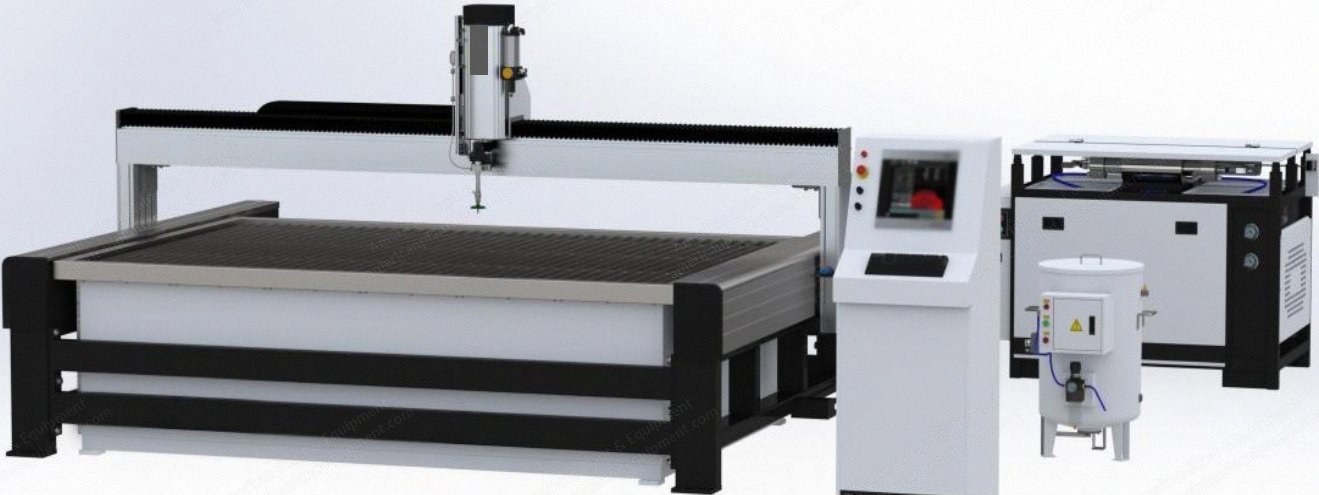

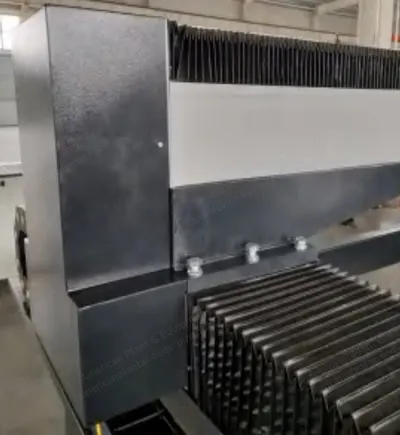

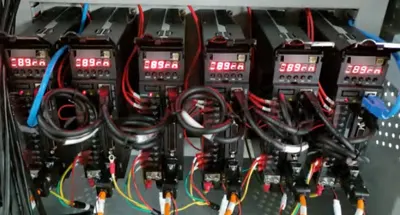

Bridge style: structural style bridge style; X and Y axis travel 2000 mm x 1500 mm; Z-axis travel 150 mm; control accuracy ±0.01 mm; cutting accuracy ±0.1 mm; servo motor specification 0.75 kW, 1.0 km, 1.5 kW; X-axis and Y-axis maximum moving speed 10000 mm/min; Z-axis maximum moving speed 1000 mm/min; with automatic lubrication function to ensure work efficiency.
Options: AB 5 axis cutting head cutting angle 0-12°; AC 5 axis cutting head cutting angle 0-75°; multiple cutting head; multiple beams; auto height adjustment system.
Main Characteristics of CNC System

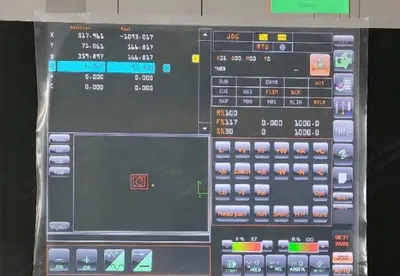

Industrial PC touch screen
15 inch LCD monitor
ECS control system imported from Italy
Windows 10 operating system
Bus motion control with EtherCAT
Support DXF and NC code file
Stop and continue process function
Able to set the best starting position
Able to cut from any component
Set lead-in, offset, bridging, over cutting, copy, array with ECS-CAM
Flexible automatic sorting and manual sorting functions
ShapeCAM software integrated
Multi-language operating interface
ECS software: ECS control system imported from Italy; bug free and freezing rate low; has ECS-CAM software for necessary settings before cutting; has database; client inputs material, thickness, quality desired; system provides cutting speed automatically.
Tool Kit, Spare Parts Kit and Consumable Spare Parts (Free of Charge)
Tool kit for plunger seal: quantity 1; for plunger seal maintenance
Inner hexagon wrench: quantity 1
450/300 wrench: quantity 2; used for machine installation
8x10/12x14/17x19/22x24/30x32 solid wrench: quantity 5; used for machine installation
Rubber hammer: quantity 1; used for maintenance
Screwdriver: quantity 4; used for installation/fix
Tool kit for guiding: quantity 1; needle maintenance
Push rod: quantity 1; for on/off valve
Tool for end cap: quantity 1; end cap maintenance
