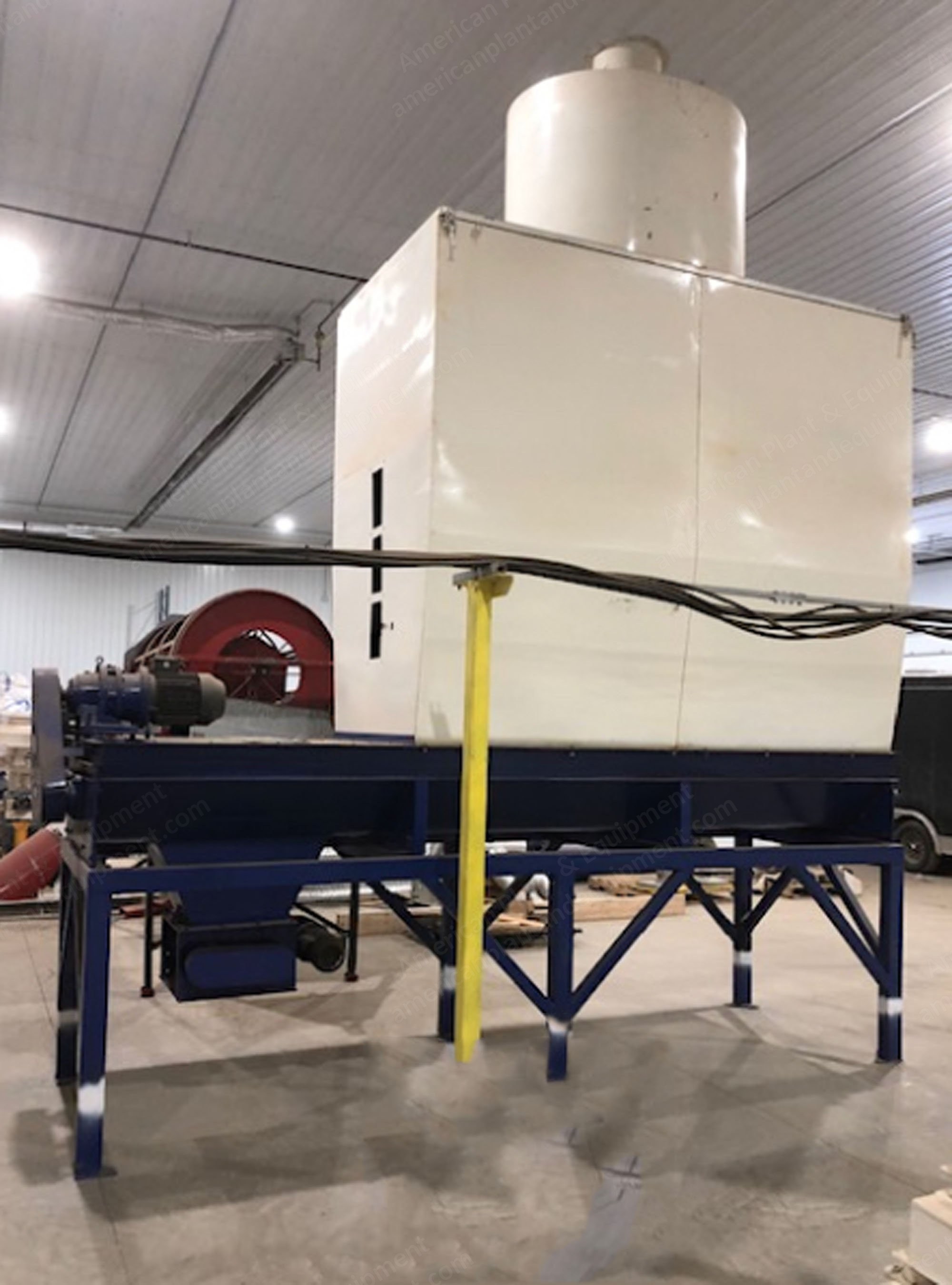

CME, R-150-16.5, Complete Wood Pellet Plant, 3.5 to 5 tph, 150 HP

CME, R-150-16.5, Complete Wood Pellet Plant, 3.5 to 5 tph, 150 HP

Description

  1. Overview
    1. Complete wood pellet plant with a production range of 3.5 to 5 tons per hour
    2. Revised list of components

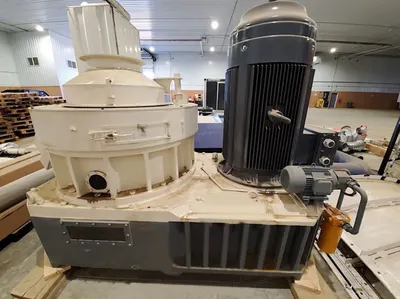

  2. Pellet Mill
    1. One Kesir model BFR 220 pellet mill
    2. New, never used 300 hp horizontal ring die pellet mill
    3. 24/7 operable high torque pellet mill with bearing free long-life mill head and rollers
    4. Reversible 1/4 in pellet die for long use
    5. One set of dies currently installed and not used, die size is 6 mm
    6. Production range of 3.5 to 5.5 tonnes per hour depending on biomass type
    7. 225 kw total motors

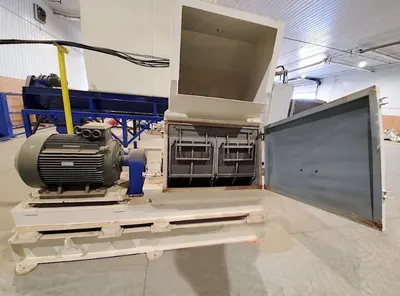

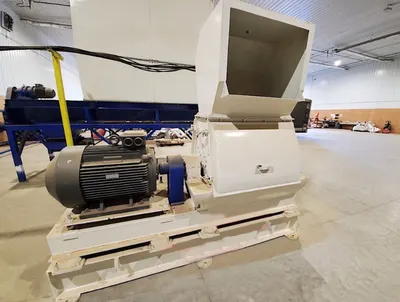

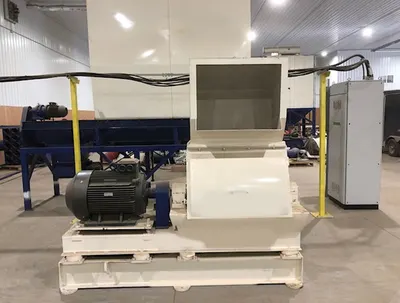

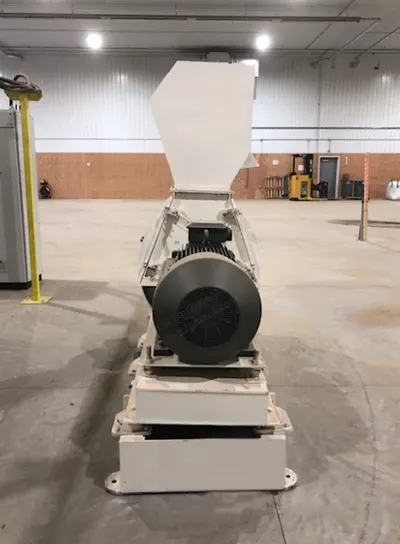

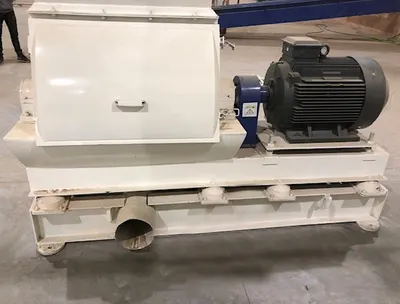

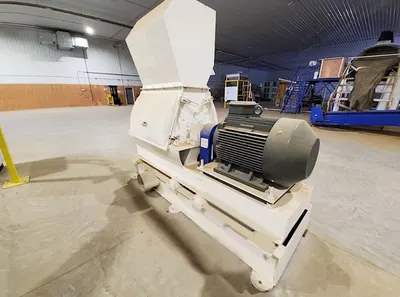

  3. Hammer Mill

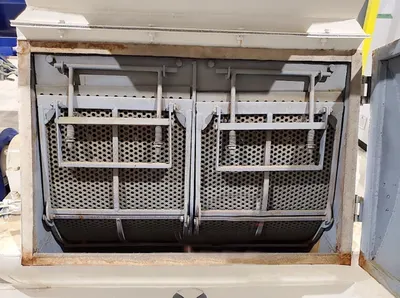

    1. One 480 vac, 125 hp (90 kw) hammer mill with 7/16 in screens
  4. Shredder
    1. One 110 kw shredder with chain conveyor and feed rollers (used)
    2. 110 kw shredder/chipper with hopper and chain conveyor
    3. Unit equipped with feed rollers and adjustable blades
    4. Hydraulic power unit available for lifting and accessing rollers and blades

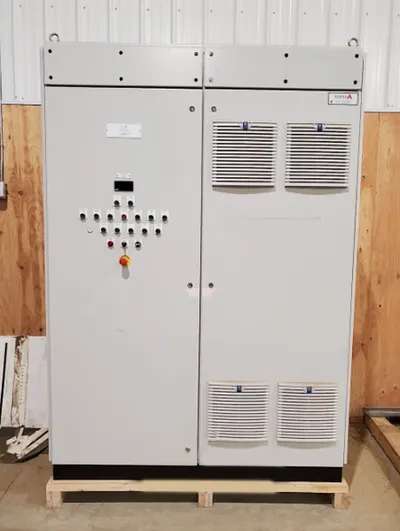

  5. Electrical Control Panel for Pellet Mill Plant
    1. One ul/csa industrial electrical control panel by Arrow Speed Controls
    2. 480 vac, 3 phases
    3. Wiring schematics available
    4. Panel designed to control: pellet mill x 300 hp (220 kw), feed auger to mill 5 hp (3 kw), screw conveyor (5.5 kw), belt conveyor to a silo (3 kw), belt conveyor to a silo for finished pellets (3 kw), oil pump (3 kw), pulse dust collector (3 kw), suction fan (3 kw), pulse dust collector (7.5 kw), pellet cutter (2.2 kw), airlock (1.5 kw), chilled water pump (1.5 kw), ac cooler for ring die (1.5 kw) (ac cooler not supplied), vibrating screen (1.5 kw) (vibrating screen not supplied)
  6. Electrical Control Panel for Shredder and Hammer Mill
    1. One ul/csa industrial electrical control panel by Arrow Speed Controls
    2. 480 vac, 3 phases
    3. Wiring schematics available
    4. Panel designed to control: shredder (110 kw), chain plate conveyor (5.5 kw), feed motor (5.5 kw), oil pump (1.5 kw), hammer mill (90 kw), discharge belt conveyor (3 kw), belt conveyor for wet material (3 kw), dust collector fan (3 kw), air lock rotary valve (2.2 kw), belt conveyor for hammer mill (3 kw), dust collector fan (15 kw)

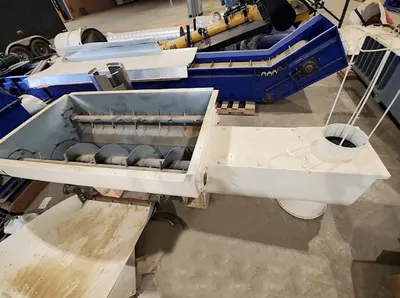

  7. Pellet Mill Screw Feeder
    1. Silo and variable speed screw for prefeeding milled product to pellet mill
  8. Pellet Mill Feeding Bin
    1. Surge bin for collecting milled feedstock prior to transport to screw feeder and silo
    2. Inlet cyclone, feed auger and discharge airlock/tourniquet

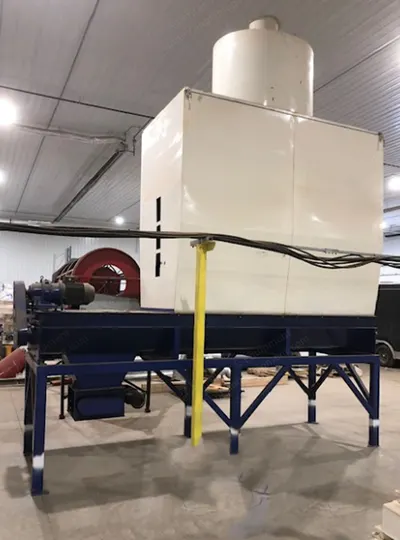

  9. Pellet Mill Cooler
    1. One model BFR 220 silo for collecting and cooling pellets

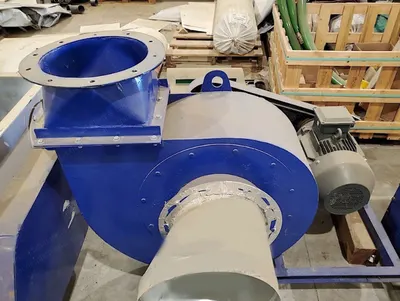

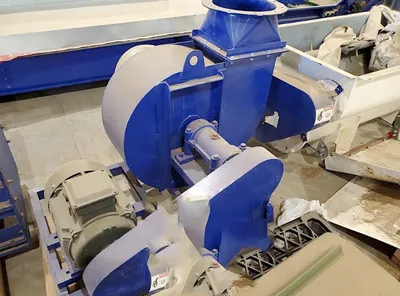

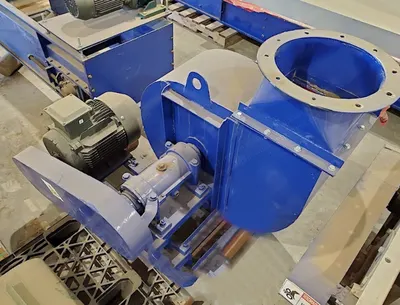

  10. Transport Fan
    1. One FJ15 blower fan for transporting material from hammer mill to collection silo, 15 kw

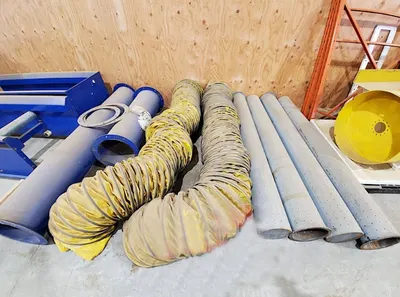

  11. Miscellaneous Support Components

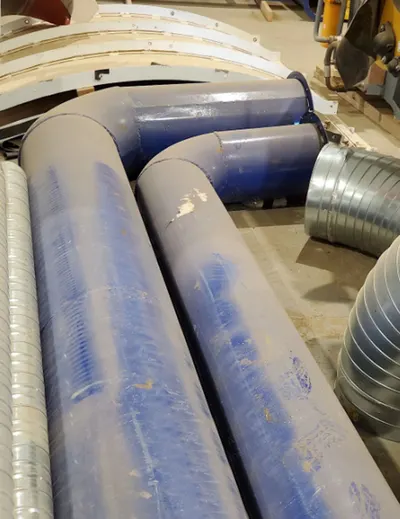

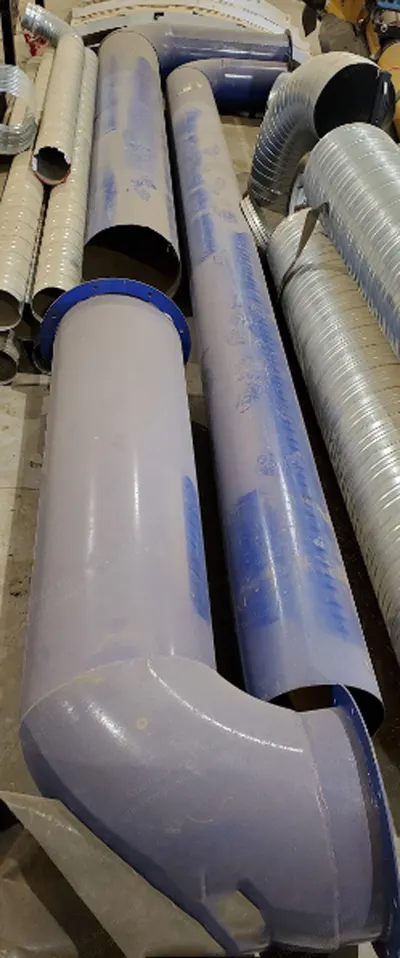

    1. Miscellaneous interconnect piping and sock type baghouse

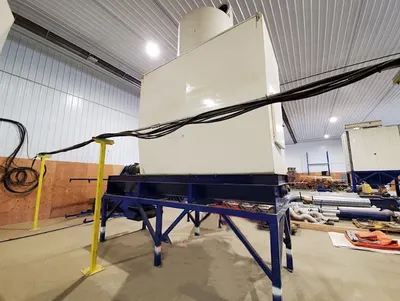

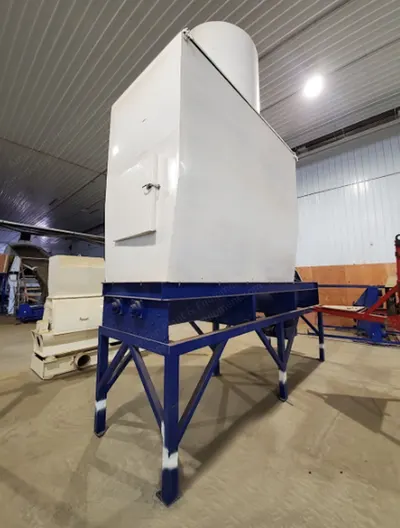

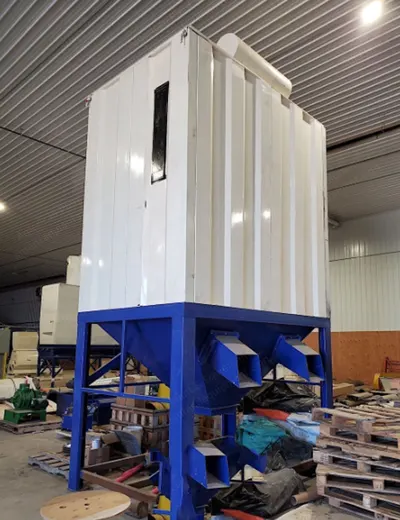

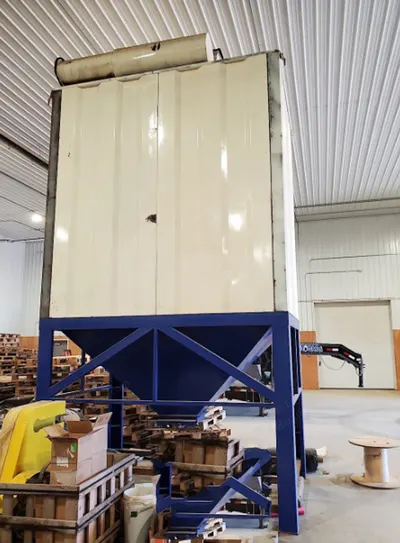

  12. Pulse Dust Collectors
    1. Two baghouses (used), one 3 kw and one 7.5 kw
    2. Each unit comes with filter socks and some spares
    3. Unit 1 is 3.5 kw, unit 2 is 7.5 kw
    4. Both units include standalone separate and configurable pulsing control system
  13. Conveyors
    1. Five conveyors of assorted lengths with 3 kw drive (some used)
    2. Assorted modular interconnect conveyors for product transport
    3. Three incline designs and two straight
    4. 3 kw, 480 vac drive
  14. Specifications
    1. Voltage: 600V
    2. Lubricator: Lincoln P653S
    3. Soft start: ABB 600V
    4. Hammer mill: CME ECO-HMA100 x 150HP
    5. Pellet mill: CME R-150-16.5 150HP
