Rotary blade size: Φ260 x 25 mm (OD x T), 24 pieces
Spacer size: Φ140 x 25 mm (OD x T), 24 pieces
Shaft size: Φ110 x 1200 mm (OD x T), 2 pieces
Torque force: 2,176 Nm
Chamber dimension: 600 x 500 mm (L x W)
Main shaft speed: 15 rpm
Main reducer: KF 107, 2 sets
Motor power: 7.5 kW, 2 sets
Voltage: refer client country 380/415/440/220 V
Machine dimensions: 1800 x 1100 x 1600 mm (L x H x W)
Machine weight: 1000 kg
Main Components
Main motor: Jintai Motor Manufacturing
Gear reducer: Yuhuang Motor Transmission Equipment
Electricals: Schneider
Blade/spacer material: 9Cr2Mo - material with excellent toughness and abrasion resistance, HRC 52-55, blade
Shaft material: 40Cr/42CrMo
Chamber box material: 45# steel
Control panel screen PLC: combined PLC and button controls (in English language)
Bearing / shredder chamber: HRBIN/HWL
Optional Components (Extra Cost)

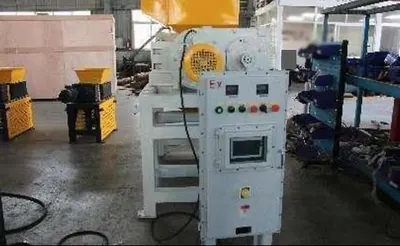

XP motor: dust-proof and explosion-proof motor
XP controller: dust-proof and explosion-proof electric cabinet
Blade material: H13/D2/SUS304/Hardox 500/9Cr2Mo - different material application for different shred material
Control panel screen PLC: Siemens touch screen control panel + S200 Siemens PLC (English language)
Structure and Advantages
Heavy rotating knife, high shredding efficiency; knife and fixed counter knives are cast with alloy steel, strong, long service life, thick iron plate, high torque resistance

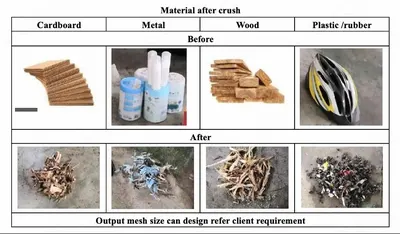

Shredding yield is to be determined according to the actual density and shape of the material to be shredded

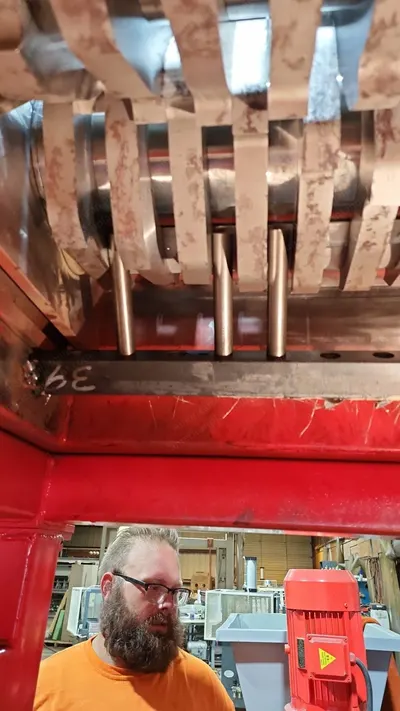

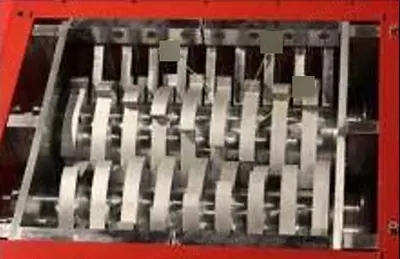

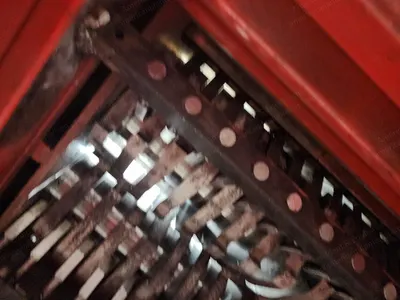

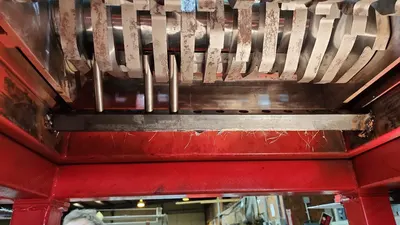

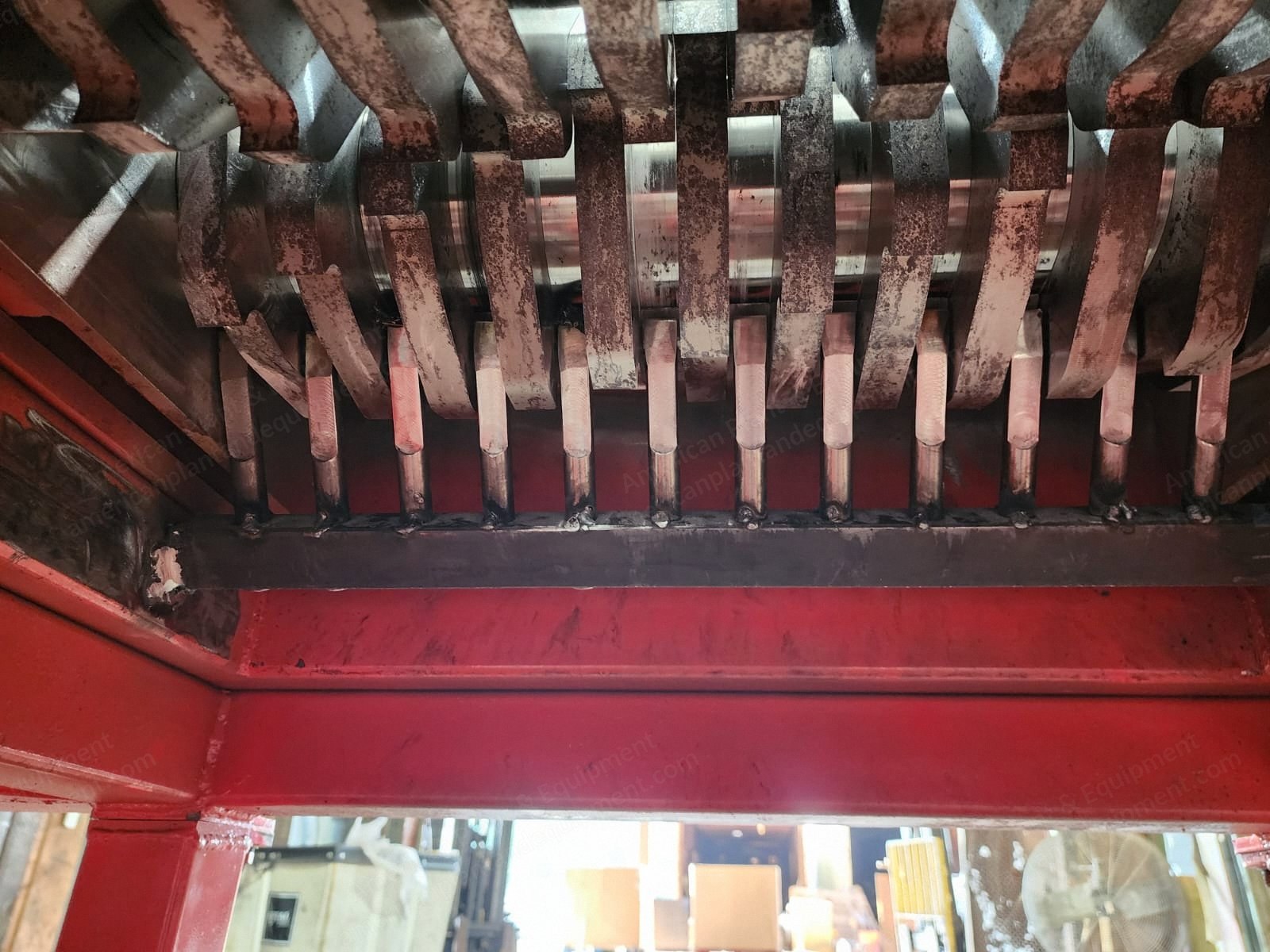

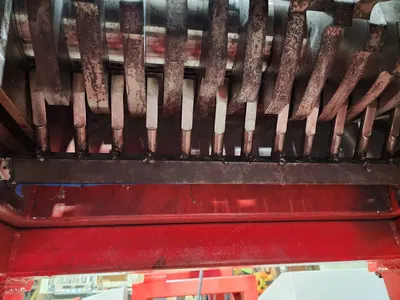

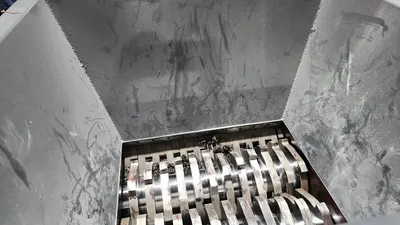

Chamber includes rotary blade, spacer, shaft; the chamber for the twin-shaft shredder is the main chamber of the shredder unit, which includes the blades, the spacers, the shafts and the shredder chamber

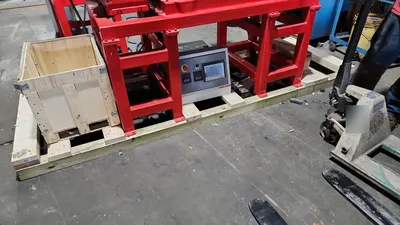

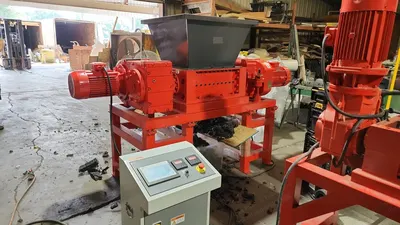

Control panel details: combined screen + PLC controls; the device will automatically reverse when it encounters high amperage caused by jammed material during operation, ensuring that the machine will not suffer damage to the motor due to overloads; the operation screen is easy to learn and practical

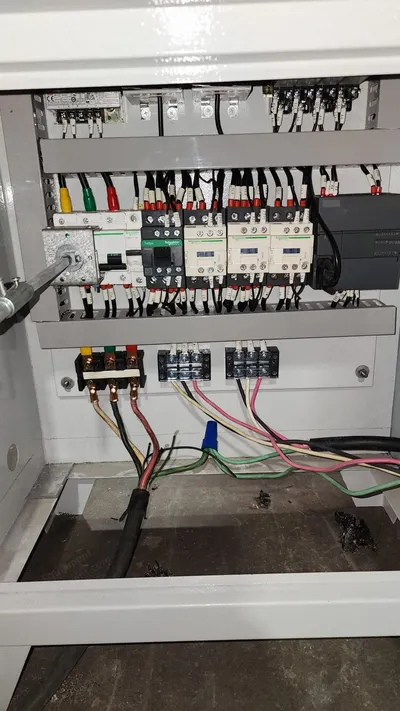

Electrical Specifications and Recommendations
Motor specifications: motors 2 x 10 HP, voltage 220 V, required amperage 60 amp
Fuse specifications: fuse type time delay fuses, amp rating 60 amp
Wiring recommendations: optimal wire size for 60 amp circuit breaker - copper 4 AWG, aluminum 3 AWG; note: the ampacity of the 4 AWG copper wire is 85 amps at 75°C
All installations and modifications are to be conducted by a certified electrician
