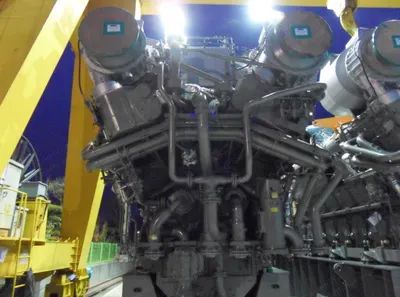

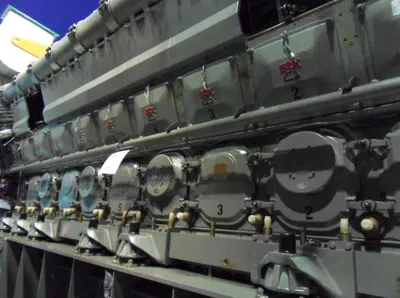

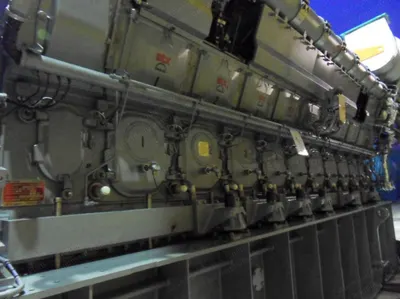

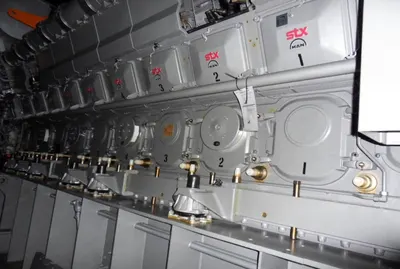

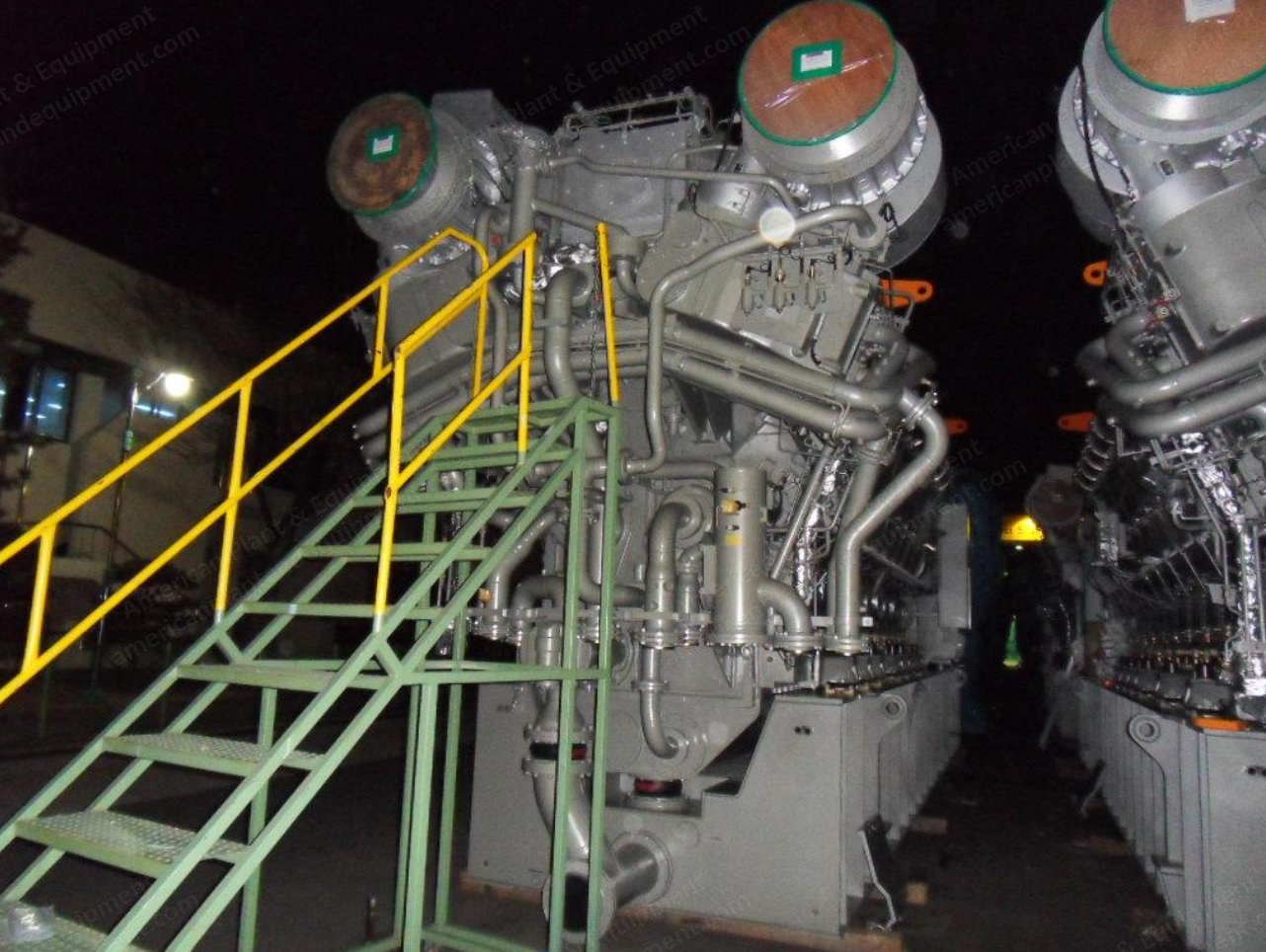

STX-MAN, 18V32/40, 2011, 8.7MW, 60Hz, 13800V, Unused Power Plant Engine

STX-MAN, 18V32/40, 2011, 8.7MW, 60Hz, 13800V, Unused Power Plant Engine

Description

  1. Overview
    1. Engine model: 18V32/40 x 1 set
    2. Maker: STX-Man
    3. Year of production: 2011
    4. Running hours: Unused
  2. Diesel Engine
    1. Maker: STX-Man B&W
    2. Model: 18V32/40
    3. Year of production: 2011
    4. Output: 9080 kW
    5. Speed: 720 rpm
    6. Bore / stroke: 320 mm / 400 mm
    7. Fuel oil: HFO (700 cSt/50 °C)
    8. Running hours: Unused
  3. Generator
    1. Maker: Hyundai
    2. Year of production: 2011
    3. Output: 8730 kW
    4. Speed: 720 rpm
    5. Frequency: 60 Hz
    6. Voltage: 13800 V
  4. Main Specifications
    1. Continuous output: 8730 kWe x 720 rpm
    2. Frequency and voltage: 60 Hz and 13800 V
    3. Fuel oil: Heavy fuel oil HFO (700 cSt/50 °C)
  5. 18V32/40 Main Data
    1. Cylinder no.: 18
    2. Bore / stroke: 320 / 400 mm
    3. Frequency: 60 / 50 Hz
    4. Power per cylinder: 500 kWm
    5. Power range (under ISO-3046): 8730 kWe
    6. Speed: 720 / 750 rpm
    7. Mean piston speed: 9.6 m/s, 10.0 m/s
    8. Fuel acceptance: HFO (700 cSt/50 °C)
  6. Scope Of Supply For Others
    1. Standard tools and spares: 1 set
    2. Technical documents, drawings and manuals: 1 set
    3. Supervision and commissioning service: To be provided
    4. Warranty service: To be provided
  7. Fuel Consumption Note
    1. The fuel consumption is corresponding to ISO 3046I-1995(E) standard reference condition with tolerance of +5% without engine driven pumps and with a fuel lower calorific value of 42.700 kJ/kg excluding leakage and/or treatment losses in the process.
