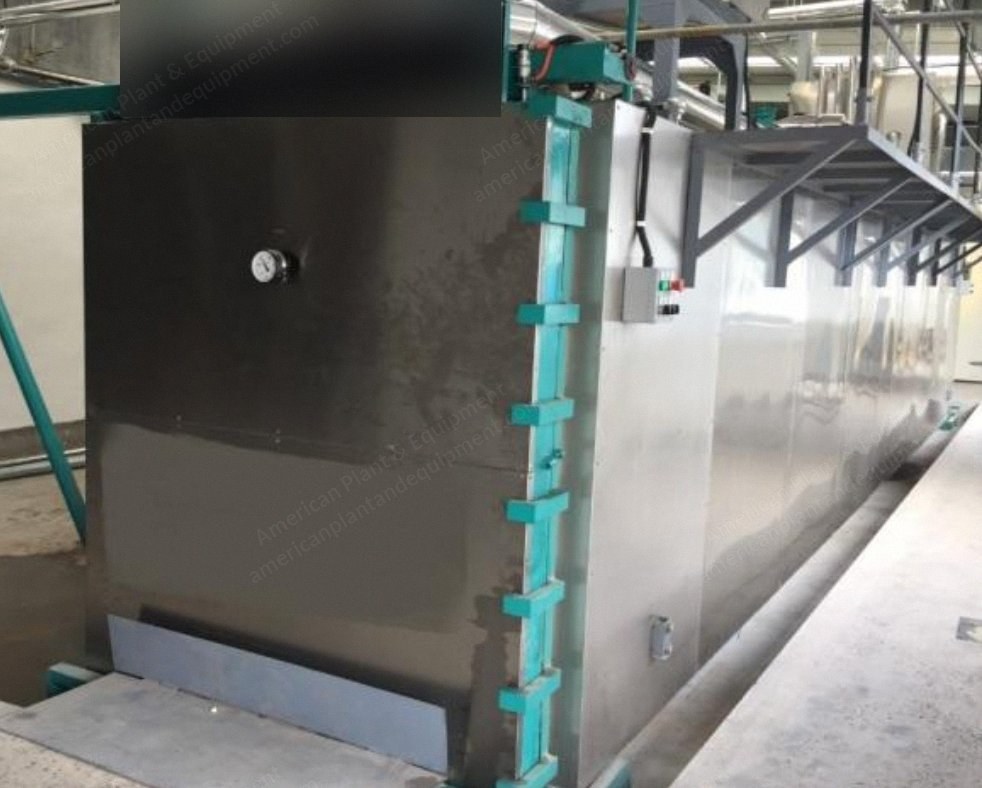

NovaStar, SZ128, EO Sterilization Machine, 24m3 Cabinet Volume, 8900x1350x2000mm Inside Size (New)

NovaStar, SZ128, EO Sterilization Machine, 24m3 Cabinet Volume, 8900x1350x2000mm Inside Size

Description

  1. Technical Parameters
    1. Cabinet volume: 24 m³
    2. Inside cabinet size: length x width x height = 8900 x 1350 x 2000 mm (8 pallets)
    3. Overall outer size: length x width x height = 9500 x 2100 x 2600 mm
    4. Pressure range chamber supported: designed range -95 kPa to +80 kPa, suggested pressure -90 kPa to +60 kPa
    5. Body main part: cabinet in stainless steel SUS304, Δ = 8 mm
    6. Body main part: water jacket in rectangular steel 120 x 60 / Q235
    7. Body main part: housing in stainless steel
    8. Body main part: foot in carbon steel 14# / Q235
    9. Body main part: foot support in steel 10# / Q235
    10. Body main part: insulating layer in ceramic fiber
    11. Door main part: door in stainless steel SUS304, Δ = 8 mm
    12. Door main part: door frame in rectangular steel 120 x 60 / Q235
    13. Door main part: door water jacket in U-bar carbon steel
    14. Door main part: door seal flange in carbon steel
    15. Door main part: door seal way with internal air feeding
    16. Door main part: housing in stainless steel
    17. Door main part: insulating layer in ceramic fiber
    18. Door type: pneumatic revolving door (two), door sealing way with air fed inside
    19. Heating components main part: heating water tank installing way wall mounted
    20. Heating components main part: cabinet of tank in stainless steel
    21. Heating components main part: housing of tank in carbon steel with power paint
    22. Heating components main part: electrical equipment with stainless steel electrical heating pipe
    23. Heating components standard number: BH000A6
    24. EO vaporizer: vaporizer installing way wall mounted or ground based, customer's decision
    25. EO vaporizer: EO coil pipe in stainless steel pipe
    26. EO vaporizer: vaporizer housing in stainless steel
    27. EO vaporizer: N2 feeding function optional, charge extra
    28. EO vaporizer: rotor flow detection function
    29. EO vaporizer: with vaporizer water temperature detection function, vaporizer found gas pressure detection is optional, charge extra
    30. EO vaporizer standard number: BVW21
    31. Harmless exhausting system: with exhaust flange joints, support future expansion, flange blind plate is carbon steel with silicon pad, fan is with imported filter screen
    32. Product loading way: suggest to set the sterilizer into a pit to make the cabinet bottom of the sterilizer even to the ground; pallet loading product
  2. Standard Components
    1. Heating pipe: 6 x 9 kW / AC380V 3P, quantity 1, located in water heater machine
    2. Vacuum pump: 11 kW / AC380V 3P / GP 50 Hz, quantity 1
    3. Hot water heating circulating pump: 1.5 kW / AC380V 3P 50 Hz, quantity 1
    4. Safety valve: 0.085 MPa, quantity 1
    5. Steam generator: 9 kW / AC380V 50 Hz, quantity 1; if buyer uses central steam supply, this component is not necessary
    6. Air compressor: 1.5 kW / AC380V 3P 50 Hz, quantity 1; if buyer uses central gas supply, this component is not necessary
    7. Air filter: standard configuration, quantity 1
    8. EO pipe: standard configuration, quantity 1
    9. EO tank joints: standard configuration, quantity 1
    10. Door open/close cylinder, door lock cylinder: standard configuration, quantity 2
    11. Magnetic control box: ST-P31XXL/2N, quantity 1
    12. Pneumatic valve: humidifying valve 0.5 inch screwed fitting, vacuum valve 1.5 inch screwed fitting, feeding EO valve 0.5 inch screwed fitting, vaporizing valve 1 inch 3 way screwed joints, air release valve 1 inch screwed fitting, condensate water releasing valve 0.5 inch screwed joints; quantity 6; for standard size, if customized the size will change accordingly
    13. EO electric scale: range 300 kg, material stainless steel, support RS485 communication function, quantity 1
    14. Cables between equipments: quantity 1
  3. Control System
    1. Temperature sensor: output form PT100, range -50 to 100 °C, quantity 5
    2. Pressure sensor: output form 4 to 20 mA, voltage DC24V, range -0.1 to +0.15 MPa, quantity 2
    3. Mechanical gage: range -0.1 to +0.15 MPa, quantity 2
    4. Humidity sensor: output form 4 to 20 mA, voltage DC24V, range 0 to 100% RH, quantity 1
    5. Water tank pressure sensor: MIK-P300/0-6 bar, quantity 1, included in the water tank
    6. Door limit location: Φ18 mm / PNP / NO / DC24V, quantity 4
    7. Control cabinet: integrated work station BGIB3-E0, quantity 1; BGD83-E0 is optional
    8. Control module: Siemens S7200 PLC / SMART, quantity 1 set
    9. Low voltage apparatus: quantity 1 set
    10. Buttons and indicator light: quantity 1 set
    11. IPC (industrial personal computer): SMART IPC3000, quantity 1
    12. Screen: 226V6QSB6 / 21.5 inch / 16:9, quantity 1
    13. Printer: Deskjet M104A black/white laser, quantity 1
