NovaStar, SZ131, 24 Cubic Meter Capacity, 220V, 72kW, 8400x1550x1850mm Chamber (New)

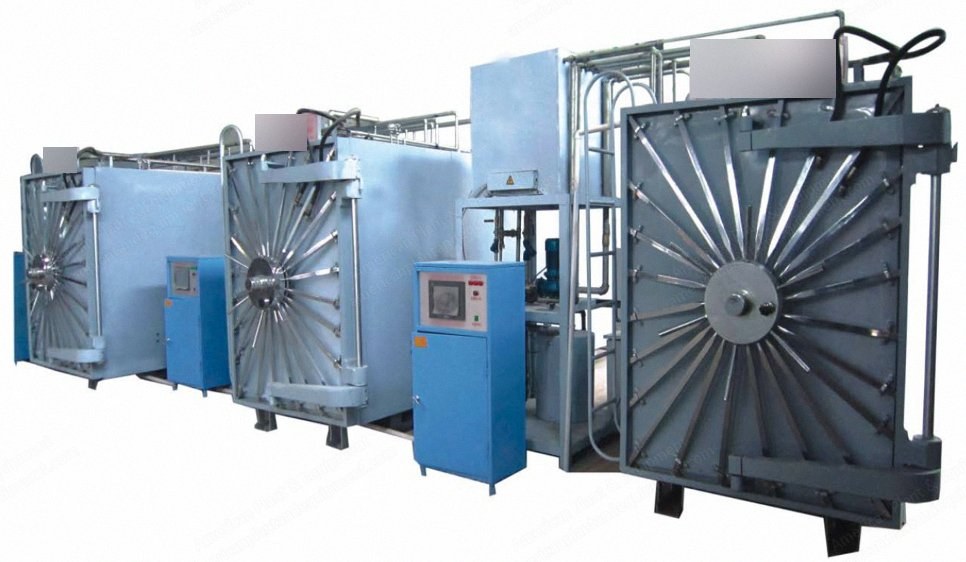

NovaStar, SZ131, 24 Cubic Meter Capacity, 220V, 72kW, 8400x1550x1850mm Chamber

Description

  1. Overview
    1. Ethylene oxide sterilization equipment is used to eliminate various kinds of microbes, such as germs, tubercle bacilli, fungus, viruses, etc.
    2. This equipment can penetrate cotton products with micro-holes, PE film, and carton boxes, ensuring that all products remain safe after sterilization and have an extended storage time.
    3. Ethylene oxide sterilization equipment is extensively utilized in various fields, including medical disposables, medical equipment, medicine, textile products, documents, and meters.
  2. Specifications
    1. Power supply: 220 volt, 60 Hz
    2. Total power consumption: 72 kW
    3. Electric heating power: 45 kW
    4. Humidification power: 3 kW
    5. Working temperature: 30 to 70 °C
    6. Relative humidity: 30 to 80%
    7. Max pressure: ±80 KPA
    8. Chamber material: SU304
    9. Chamber inner size: 8400 x 1550 x 1850 mm
    10. Chamber outside size: 9000 x 1950 x 2300 mm
    11. Gross weight: 11,000 kg
  3. General Information

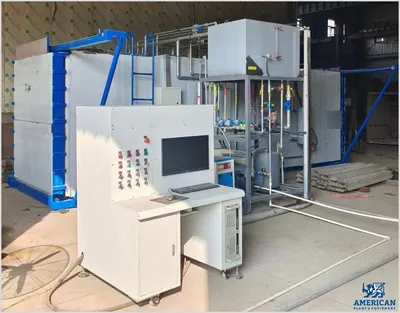

    1. The ethylene oxide sterilizer consists of three main parts: sterilization chamber, assist rack, and electric control box. These include the heating circulation device, humidification device, gasification device, vacuum system, air filter system, waste gas treatment system, and inner and outside loading device.

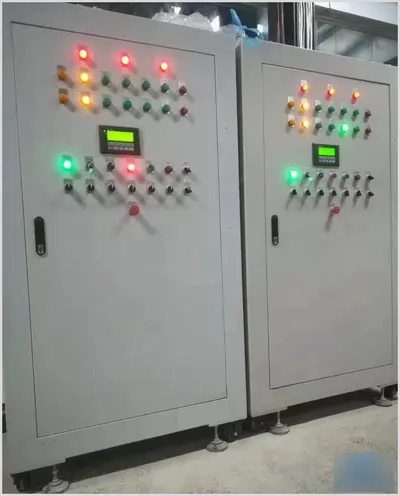

    2. Electric control box.

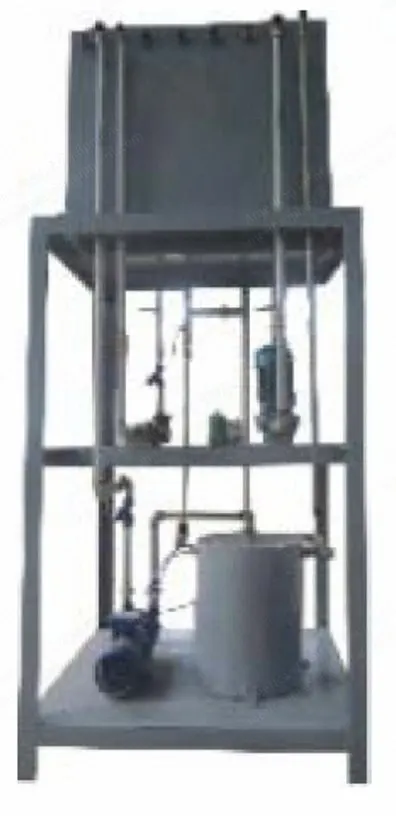

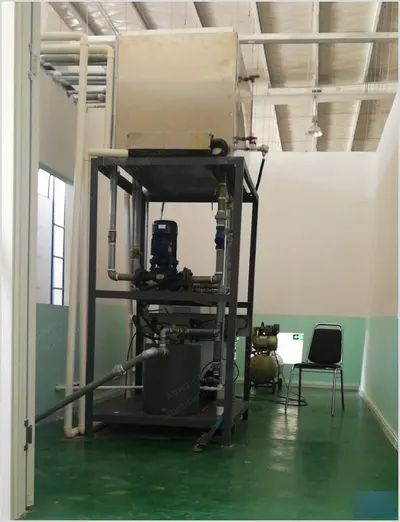

    3. Assist rack and water tank.

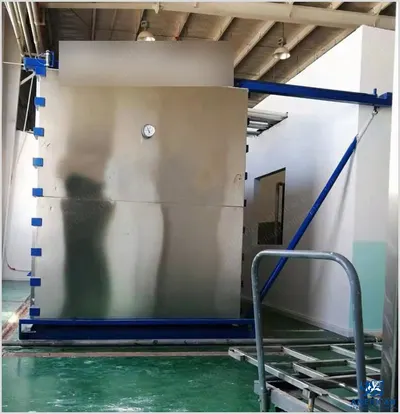

    4. Sterilization chamber (inner material stainless steel).
    5. Sterilization chamber inner dimensions: 8400 mm x 1550 mm x 1850 mm.
    6. Requires three 40 foot high cube containers for shipment.
    7. The offered exhaustion chamber is same with sterilization chamber. The only difference is exhaustion chamber does not have a vacuum pump.
