Fits two pallets, each 1000 mm wide, side by side (inside total working space is 2100 mm).
Inner size: H 1850 x W 1850 x L 7500 mm.
Chamber capacity: 24.3 cbm.
Construction
Contact part: stainless steel 304.
Non-contact part: mild steel.
Main Shell
Thickness: 10 mm.
Material: SS 304.
Design pressure: 2.0 kg/cm².
Testing pressure: 1.5 kg/cm².
Operating pressure: negative pressure cycle.
Jacket Shell
Thickness: 10 mm.
Material: mild steel.
Design pressure: 3.0 kg/cm².
Testing pressure: 2.0 kg/cm².
Operating pressure: 1.0 kg/cm².
Spacer between water gallery and chamber is joined with 100 mm diameter stud 40 and both sides are welded for strength to take heavy pressure and vacuum.

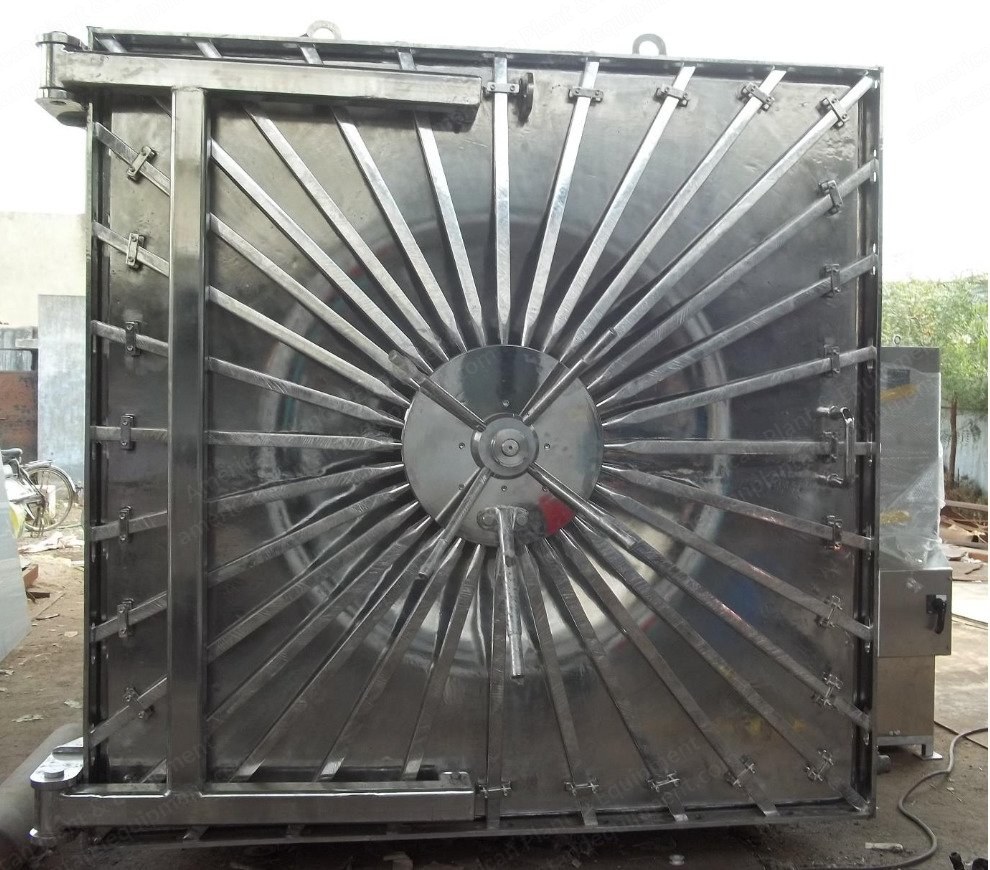

Double Door Plate
Thickness: 16 mm.
Material: SS 304.
Specifications
Vacuum pump: 7.5 HP, Oil Base (Saga Brand)
