NovaStar, PC367, Cushion & Pillow Production Line, Capacity 200 to 250 kg/h, 59kW (New)

NovaStar, PC367, Cushion & Pillow Production Line, Capacity 200 to 250 kg/h, 59kW

Description

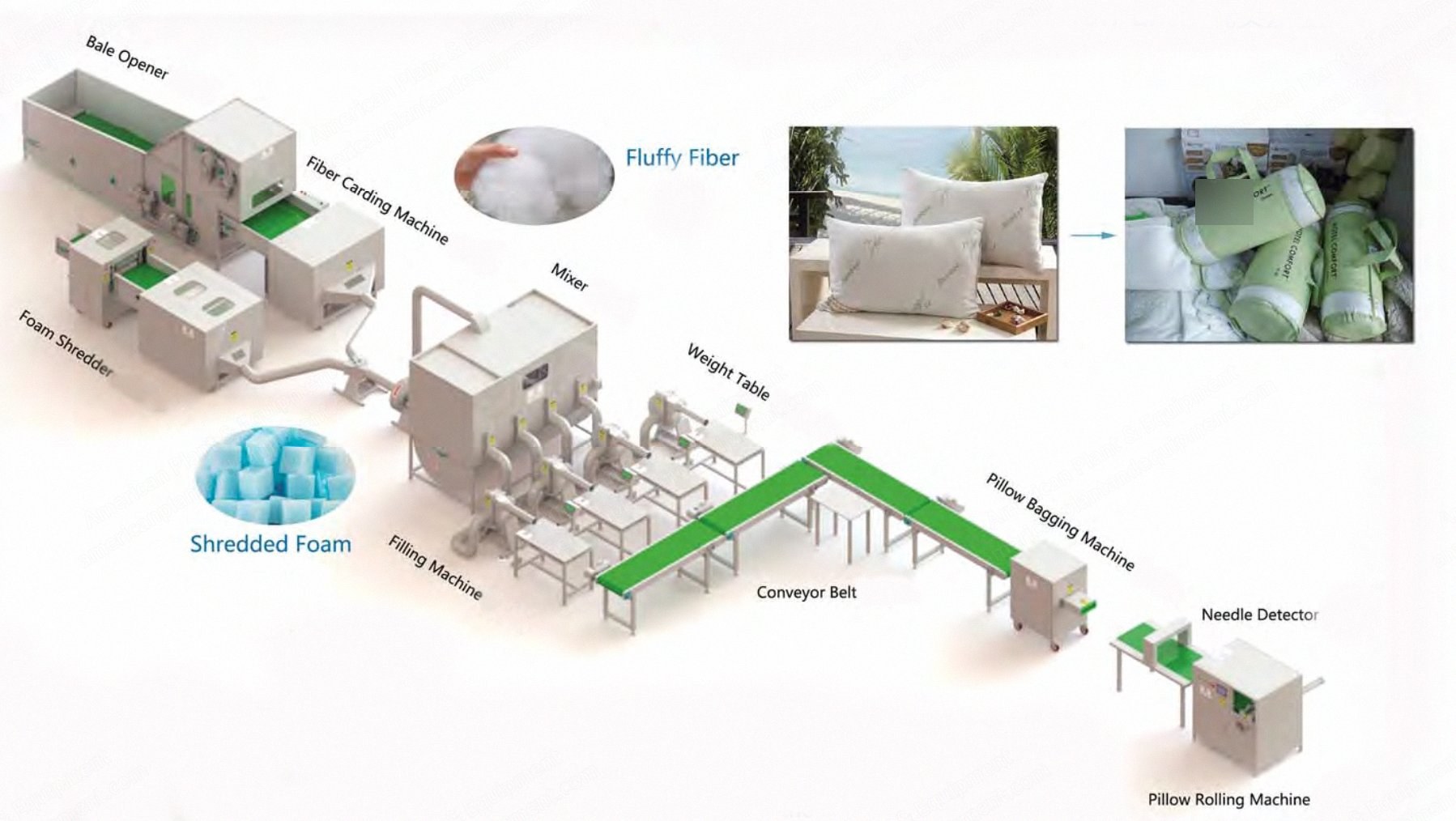

  1. Overview
    1. This production line is used for producing pillows and cushions.
    2. It can be customized based on customers’ requirements of pillow or cushion production line, from the fiber opening, foam cutting, mixing and filling, weighing and packing finally.
    3. Power: about 59 kW
    4. Voltage: 380 V, 50 Hz, 3 phases (220 V available)
    5. Capacity: 200 to 250 kg/h
    6. Certification: CE
  2. Item 001: Fiber Feeder
    1. Model: J-F01-790 mm
    2. Used to store and transport raw materials.
    3. Can store 200 to 250 kg fiber.
    4. Automatically and evenly convey materials, which can avoid the clogging of the opener and make the production smoother.
    5. Power: 3.75 kW
    6. Capacity: 150 to 300 kg (adjustable)
  3. Item 002: Fiber Opener
    1. Model: J-10-B
    2. The fiber opener is specialized in opening conjugate hollow siliconized polyester fiber, wool and wadding fiber waste, other filling fiber shorter than 100 mm.
    3. Belt width: 790 mm
    4. Amount: 1 pc
    5. Use for opening fibers.
    6. Power: 6.25 kW
    7. Capacity: 220 to 250 kg/h
    8. Applicable fiber: 3D-15D, <100 mm, silicon fiber
  4. Item 003: Foam Cutting Machine J-20-B
    1. Amount: 1 pc
    2. Power: 12.75 kW
    3. Capacity: 150 to 250 kg/h (the foam type and density are different, the capacity will be different)
    4. Ideal for the recycling of foam to make filling materials and rebound foam. For the uniform shape of the foam articles, which can be varied wish.
    5. Suitable for cutting foam, memory foam, latex foam (foam rubber), mattress leftover material (foam with fabric) into regularly pieces (adjusted length 6~18 mm).
    6. No dust generated when cutting. The size of the production is adjustable.
    7. Latest design. Has the most comprehensive functions, the highest production efficiency.
  5. Item 004: Blower
    1. Amount: 1 pc
    2. Power: 4 kW/one pc
    3. The blower is changed from 3 kW to 4 kW, which has a stronger suction power, which can suck the materials away in time, and can make the materials in the mixer mix more quickly and evenly.
  6. Item 005: Mixer
    1. Model: J-F04B
    2. Amount: 1 pc
    3. Power: 5.5 kW
    4. Air pressure: <0.5 MPa
    5. Volume: 5 cbm
    6. Suitable for mixing materials such as fiber, foam, and feather etc. while making cushions and pillows. The materials mixed are kept rotating by a fast moving stirring device to ensure uniform suction effects and unblocked filling process.
  7. Item 006: Filling Machine
    1. Model: J-F05A
    2. Amount: 4 pcs
    3. Power: 2.2 kW/one pc
    4. Air pressure: <0.5 MPa
    5. Capacity: 150 kg/h
    6. Large diameter filling tube fills faster.
    7. Special fan blade design is not easy to block the blower.
    8. Suitable for long and short fibers and soft materials.
    9. Easy operation with foot control.
    10. Thicker steel plate has a longer life.
  8. Item 007: Weighing Table
    1. Amount: 4 pcs
    2. Worktable area: 1000 x 500 mm
    3. Max capacity: 40 kg
    4. The weighing table can make the filling process easier, and it allows workers to see the weight of the pillow in time and make weight adjustments.
  9. Item 008: Conveyor Belt
    1. Amount: 4 pcs
    2. Power: 0.3 kW/pc
    3. Size: 1500 x 600 x 1010 mm with motor
  10. Item 009: Pillow Bagging Machine
    1. No additional specifications provided.
  11. Item 010: Needle Detector
    1. Amount: 1 pc
    2. Power: 0.1 kW
    3. Belt width: 600 mm
  12. Item 011: Pillow Roll Packing Machine (Foam Pillow Only)
    1. Power: 4.4 kW
    2. Capacity: 4 to 7 pcs/min
    3. Pressure: 0.4 to 0.8 MPa
    4. Belt width: 550 mm
    5. Drum diameter: 160 mm
    6. The width of the packaging bags: >260 mm (perimeter > 520 mm)
