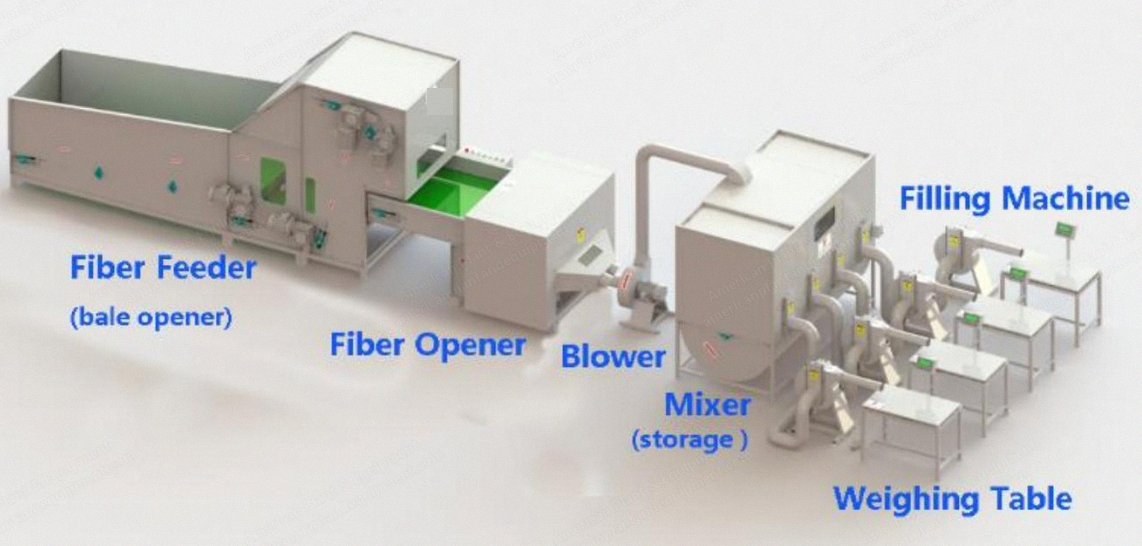

This system is suitable for making cushions and pillows filled with a mixture of fiber foam.
High productivity, easy to operate.
Smooth process from fiber opening, mixing with other materials, to the filling process without jamming.
The production line can also be used to fill only fiber or foam pieces.
Specifications
Item 001: Fiber feeder J-F01-B (for storing and conveying materials)
Power: 3.75 kW
Working width: 1000 mm
Capacity: 200 to 400 kg/h (adjustable)
Item 002: Microfiber opener J-10-C
Power: 8.25 kW
Capacity: 250 kg (microfiber) / 400 kg (fiber) per hour
Working width: 1000 mm
The fiber opener is specialized in opening conjugate hollow siliconized polyester fiber, wool and wadding fiber waste, other filling fiber shorter than 100 mm.
Item 003: Blower
Power: 4 kW per unit
The blower is changed from 3 kW to 4 kW, which has a stronger suction power, can suck the materials away in time, and can make the materials in the mixer mix more quickly and evenly.
Item 004: Mixer model J-F04-B
Power: 5.5 kW
Air pressure: <0.5 MPa
Volume: 5 cbm
Suitable for mixing materials such as fiber, foam, and feather etc. while making cushions and pillows.
The materials mixed are kept rotating by a fast moving stirring device to ensure uniform suction effects and unblocked filling process.
Item 005: Filling machine model J-F05A
Power: 2.2 kW per unit
Air pressure: <0.5 MPa
Capacity: 200 kg/h
Large diameter filling tube fills faster.
Special fan blade design is not easy to block the blower.
Suitable for long and short fibers and soft materials.
Easy operation with foot control.
Thicker steel plate has a longer life.
Item 006: Weighing table
Worktable area: 1000 x 500 mm
Max capacity: 40 kg per unit
The weighing table can make the filling process easier, and it allows workers to see the weight of the pillow in time and make weight adjustments.
Condition
Used industrial machine.
Included
Fiber feeder J-F01-B
Microfiber opener J-10-C
Blower
Mixer model J-F04-B
Filling machine model J-F05A (4 units)
Weighing table (4 units)
Not specified.
