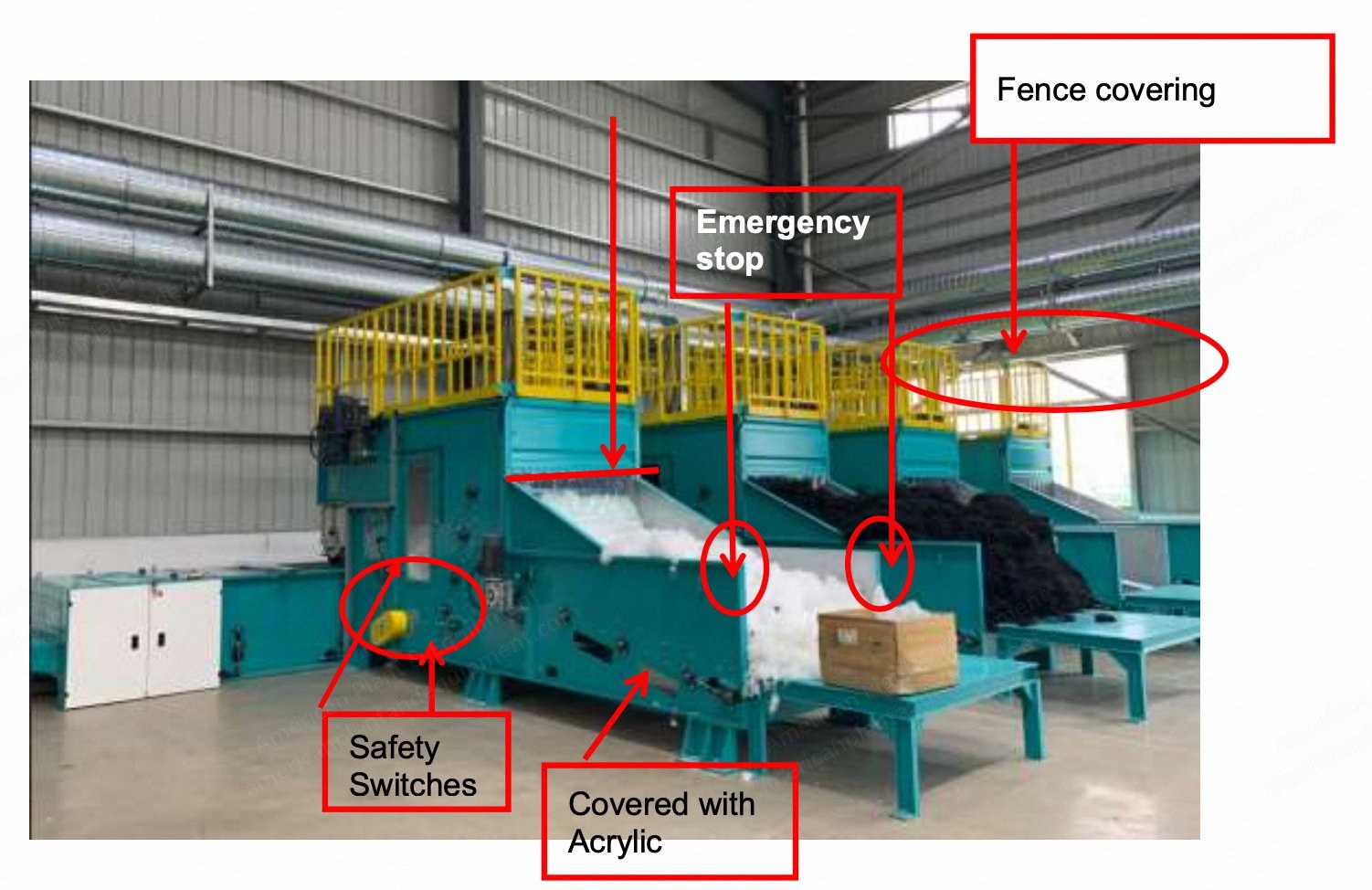

The machine is for the opening and blending system for nonwoven process. A variety of raw materials are placed on the conveyor belt of the bale opener. The whole bale of raw materials is fed at one time, saving labor. The fiber is sent to the feed conveyor. The fibers are mixed and opened by the beater; the fibers are dropped on the conveyor belt, and then sent to the beater to mix, and then discharged onto the conveyor evenly. The beating rollers in the machine are designed to open up the fibers properly. A special pattern in the spike lattice and the aluminum pins are unique. The proportion of the weight allotment is controlled by the PLC with utmost accuracy.
Working width: 1400 mm
Weight control: PLC
Diameter of opening roller: 270 mm
Installed power: 7.35 kW
Beating roller: 3 sets

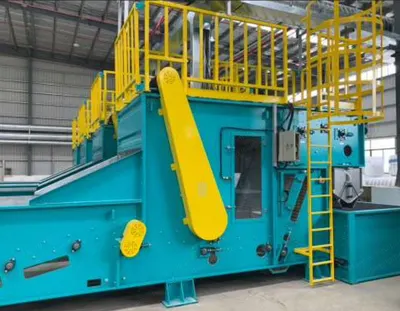

The frame is made of Q235-A steel plate by CNC laser cutting, CNC bending and modular assembly.
The main body of the spiked lattice is aluminum lattice, which is embedded with stainless steel pins. The probability of falling nails is small and the service life is long.
Photoelectric automatic control of fiber feeding, frequency control of spiked lattice, control of fiber feeding quantity.
The weighing pan includes a sensitive load cell for weighing function, according to the program control, the fibers are dropped on the opening conveyor.
Opens all kinds of baled fiber without manual handling and reduces labor intensity.
Equipped with a set of beater rollers, which can initially mix one or more fibers after opening, and then transport them to the next process.
The structure of multiple rollers at the entry can hold more weight capacity on the entry conveyor and reduce the load on the motor.

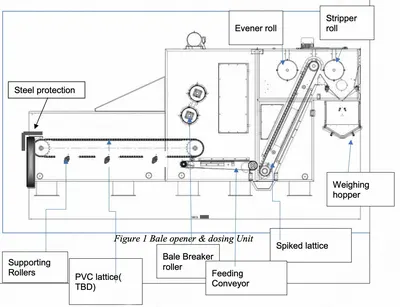

Dosing System
Weighing pan system: every dosing bale opener has a weigh pan installed above the exit conveyor which is connected to weighing load cells. The stripper roll is continuously feeding fiber to the weigh pan.
Weighing hopper capacity: 1 m3
Volume above the trap door: 1 m3
Weighing frequency: 10 s
Dosing accuracy: 5%
Electric Control System
Machine start / stop: HMI, auto run included, speed setting included, auto stop included
Manual operation: HMI, manual menu included
Machine failure info: HMI, each machine failure position can be displayed on HMI
Safety info and control: HMI, each emergency stop status can be displayed on HMI layout
