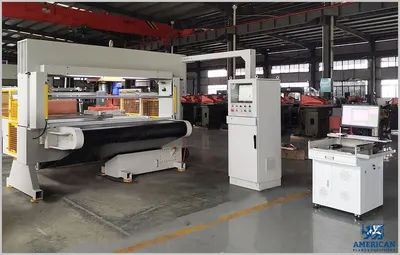

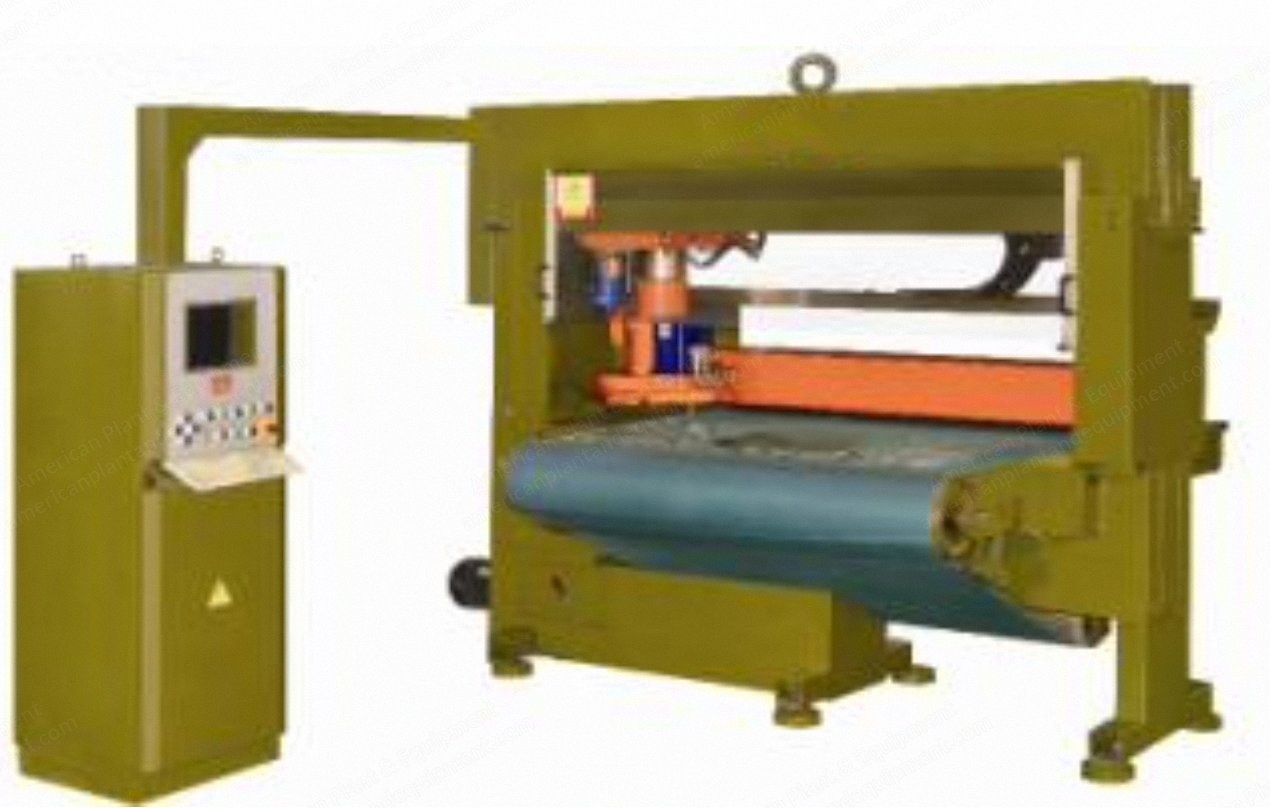

Maximum cutting width without clamp stops: 1950 mm
Belt width: 2000 mm
Head traverse (center to center): 0 to 1900 mm
Maximum clamp feed (conveyor movement distance): 0 to 700 mm
Head rotation angle: 0° to 360° continuous
Maximum speed of head traverse (x axis): 916 mm/s
Maximum speed of material feed (y axis): 666 mm/s
Maximum speed of head rotation (z axis): 720°/s
Positioning tolerance for x and y axes: ±0.3 mm
Positioning tolerance for z axis: ±0°20°
Maximum cutting stroke: 175 mm
Speed of ram stroke (approach, cut, return): 420-54-353 mm/s
Axes motors power: 7.5 nm brushless
Compressed air requirements: 7-10 bar – 200 lt/min
Machine size (w x l x h): 3620 x 5220 x 2390 mm
Net weight: 4900 kg
Electrical and Motor Specifications
Conveyor motor is servo motor, 2 kw to control the conveyor, point to y-axis
Main oil pump motor: 4 kw
Servo motors: there are 3 motors, each 2 kw to control y-axis (vertical belt movement), x-axis (head movement in horizontal direction), x-axis (head rotation)
Total kw: 10 kw (4 kw pump motor + 3 motors of 2 kw each)
Gear pump motor is ecklerle german brand
Shipping
Requires one 40 foot high cube container to ship
