NovaStar, BT123, 150 HP/hr, Diesel-Bunker Oil Fired Steam Boiler (New)

NovaStar, BT123, 150 HP/hr, Diesel-Bunker Oil Fired Steam Boiler

Description

  1. Overview
    1. Stainless steel materials outside package for corrosion protection.
    2. High safety with 3-level protection function: double water level gauge protection, double pressure gauge protection, double safety valve protection.
    3. Full automatization includes automatic ignition, automatic flame out, automatic burner’s large/small fire switchover, automatic high/low pressure fuel burning protection, automatic fuel leak detection protection, automatic water feeding/water pump control, and automatic ultralow water level chain.
    4. Low-pressure voltage explosion door design prevents sudden explosion and reduces damage to boiler.
  2. Diesel-Bunker Oil Burner
    1. Brand: Riello/Unigas.
    2. Origin: Italy.
    3. Supported fuel: diesel-bunker oil.
    4. Scope of supply includes burner body (1 pc) and standard accessories (1 set).
  3. Electrical Control Cabinet
    1. Brand: NovaStar brand.
    2. Control type: English screen + button.
    3. Scope of supply includes cabinet proper (1 set), controller CPU (1 set), analog input/output module (1 set), isolation safe fence (1 set), indicator light (1 set), amphenol connector (1 set), water level relay (1 set), and change-over switch (1 set).
    4. Protection functions: ultrahigh/medium high/high water level alarm, ultra low/medium low/low water level alarm, pressure control, water pump control, burner control with different stage fire control, condensate pump control, chain protection, and over pressure protection.

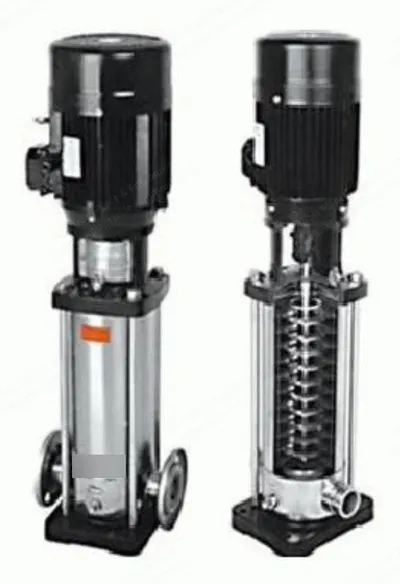

  4. Water Pump
    1. Type: vertical, stainless steel, centrifugal.
    2. Flow: 6 m³.
    3. Head: 156 m.
    4. Motor: 4 kW.
    5. Energy efficiency index value: MEI value is 0.7, higher than European standard 0.4.
    6. Unique barcode for each pump: traceable, reliable.
    7. Protection level: IP 55, customized.
    8. Insulation grade: F, customized.
    9. Materials: valve core/lead screw are stainless steel.
    10. Scope of supply includes water feed pump (1 pc), base (1 pc), and installation bracket (1 pc).

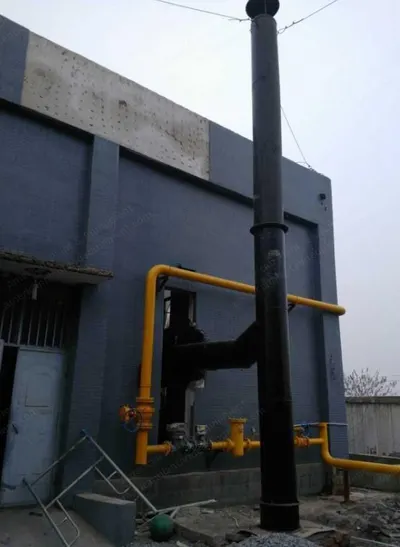

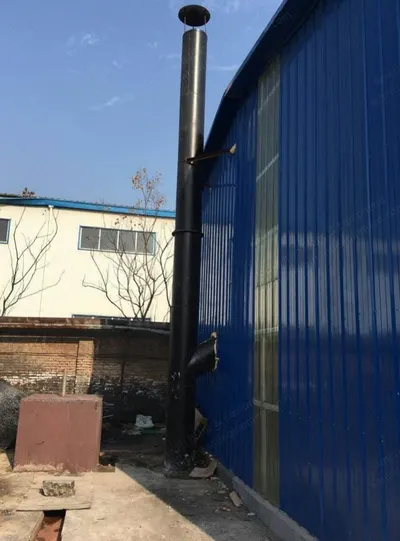

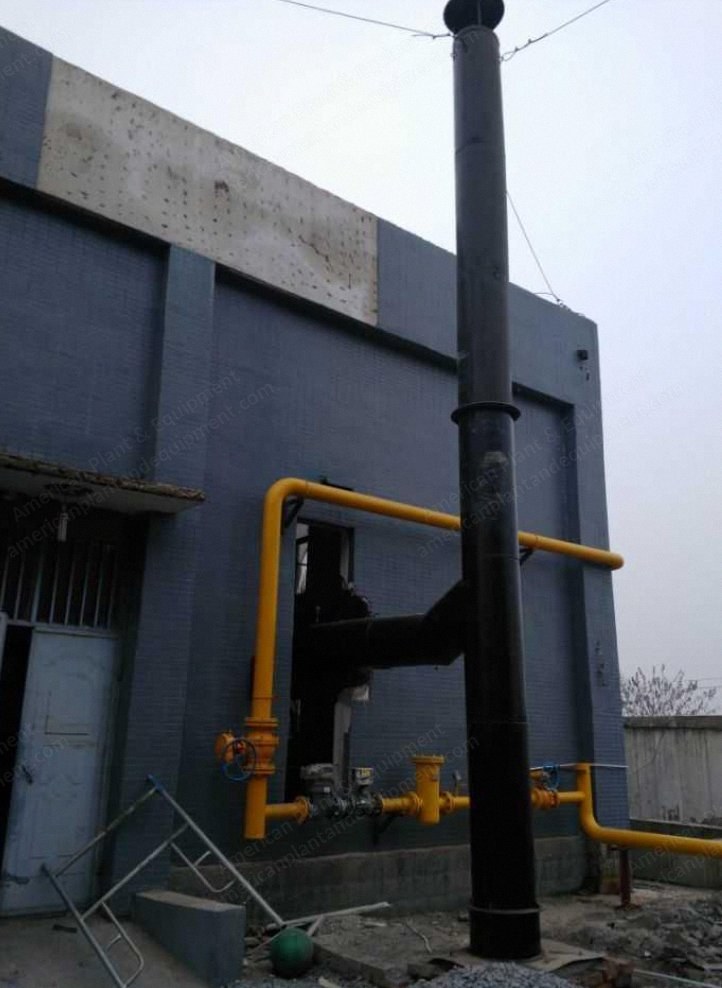

  5. Chimney
    1. Diameter: Ø400.
    2. Brand: NovaStar brand.
    3. Characteristic: vertical seamless.
    4. Material: carbon steel.
    5. Scope of supply: 1 set.

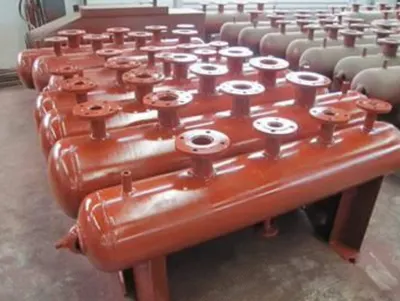

  6. Mainfold
    1. Brand: NovaStar boiler brand.
    2. Model no.: -.
    3. Material: carbon steel.
    4. Steam inlet size/quantity: Ø325.
    5. Steam outlet quantity: 3 pcs.
    6. Scope of supply includes steam header (1 pc) and accessories (1 set).
  7. Water Softener
    1. Brand: Fleck.
    2. Origin: American.
    3. Softening capacity: 4-6 t/h.
    4. Type: timing type.
    5. Controller brand: USA Fleck.
    6. Controller quantity: 1 pc.
    7. Resin tank material: fiber glass.
    8. Resin regeneration method: down flow regeneration.
    9. Package: stainless steel frame.
    10. Scope of supply includes controller (1 pc), resin tank (1 pc), salt tank (1 pc), resin (200 kg), and standard accessories (1 set).
  8. Condenser (Optional Items)
    1. Model no.: matched.
    2. Materials: ND steel.
    3. Outside package: carbon steel.
    4. Advantages: finned tube design with strong thermal conductivity; uses No.09CrCuSb acid corrosion resistance ND steel materials to prevent corrosion from condensate water when smoke temperature is below 100°C; with double layer 12 mm aluminum silicate heat preservation materials for good thermal insulation, boiler surface temperature lower than 40°C, hands can touch.
