NovaStar, CG197, Hot Melt Adhesive Coating Machine, Working Width 600 to 1300mm, Speed 10 m/min (New)

NovaStar, CG197, Hot Melt Adhesive Coating Machine, Working Width 600 to 1300mm, Speed 10 m/min

Description

  1. Applications
    1. Glue: hot melt adhesive, EVA adhesive, etc.
    2. Plank: suitable for medium density fiberboard, particleboard, fiberboard, steel panel, gypsum panel, HPL, CPL, EPS foam board, acrylic board, honeycomb board, etc.
    3. Laminating film materials: HPL, PET, CPL, PVC, high-gloss PVC, veneer, leather rolls, fabrics rolls, etc.
    4. For nominal speed of 10 meters/minute at 50 grams per square meter of hot melt covering.
    5. Standard average working height 1 meter (40 inches).
  2. Process Sequence
    1. Feeding and exit roller conveyors.
    2. Kiss rolls coating station.
    3. Vinyl roll unwinding stand and loading device.
    4. Lamination and rolling section.
    5. Cross cutting device.
    6. Foam sheet loader (not included – customization available).
    7. Final sheet unloader (not included – customization available).
    8. Safety features.
    9. Variable speed drives by PLC with jog option.
    10. Bulk hot melt glue melter.
  3. Technical Specifications
    1. Machine size: 9000 x 2400 x 1000mm (29.5 ft long x 95" wide x 40" high).
    2. Machine structure: steel plate throughout.
    3. Work width range: 600 to 1300mm (23.6" to 51.8").
    4. Work length range: 800 to 3700mm (31.4" to 145.6").
    5. Work speed: 10 meters per minute (10.9 yards/minute).
    6. Doctor roll: Φ300 x 1400mm electrically heated, 1 unit, 4kW (12.8" x 55.1").
    7. Coating roll: electrically heated, 1 unit, 1 motor for two rolls.
    8. Nip roll: Φ200 x 1400mm, 1 unit (7.8" x 55.1").
    9. Nip rolls: steel + silicone, 3 units.
    10. Unwinding shaft: 74mm (2.91 inches), 1 unit.
    11. Magnetic powder brake: 10kg tension, 1 unit.
    12. Vinyl roll diameter max: 914mm (36").
    13. Maximum working thickness: 75mm (3 inches).
    14. Coating roll size: Φ300mm x 1400mm (11.8" x 55.1").
    15. Feeding roll size: Φ200mm x 1400mm (7.8" x 55.1").
    16. Fabric roll unwinder: 1 assembly.
    17. Electric components: Siemens (all), 1 assembly.
    18. Tracking cutter: by digital control, 1 unit, 0.75kW.
    19. Conveyor motors: 0.75kW each, 2 motors (1.5kW both).
    20. Nip rolls motor: 4kW, 1 unit.
    21. Coating rolls motor: 2.2kW + reducer, 1 unit.
    22. Heating rolls power consumption: about 36kW (160 to 220 degrees Celsius), 36kW and 24kW setting, one complete oil heating tank.

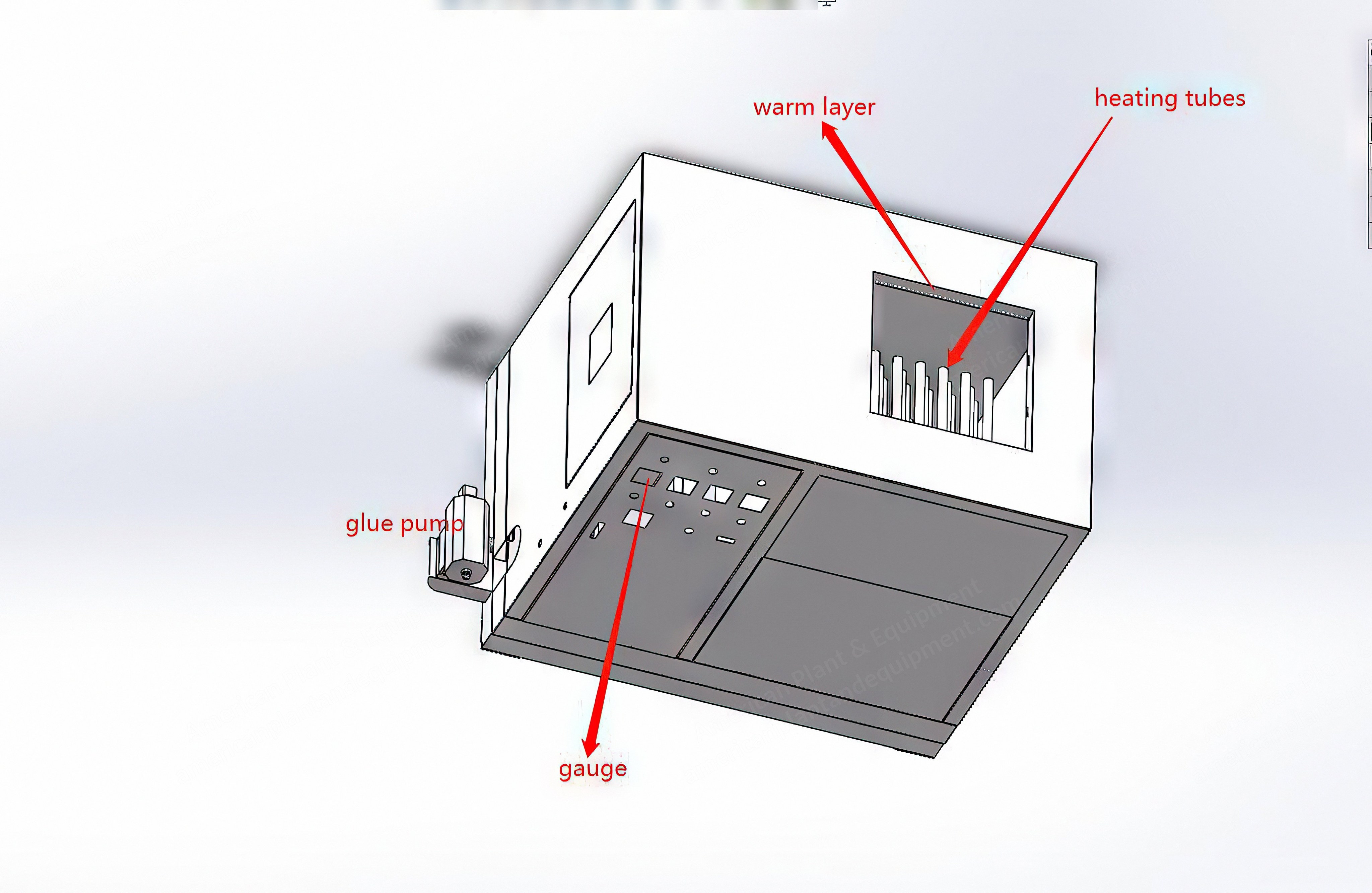

    23. Hot melt glue pot: 48kW (150 liter capacity), 850 x 1000 x 1200mm, 150kg/hr (330 lbs/hr), 500mm x 500mm chamber size.
    24. Hot melt pump: 0.4kW (1.5kW for longer distance), 150 liters/hr, 0 to 100rpm (2.4 to 2.8 liters).
    25. Flexible Teflon hose: 3kW.
    26. Hot oil circulation pump: included.
  4. Specifications
    1. Conveyor length: 2500mm
