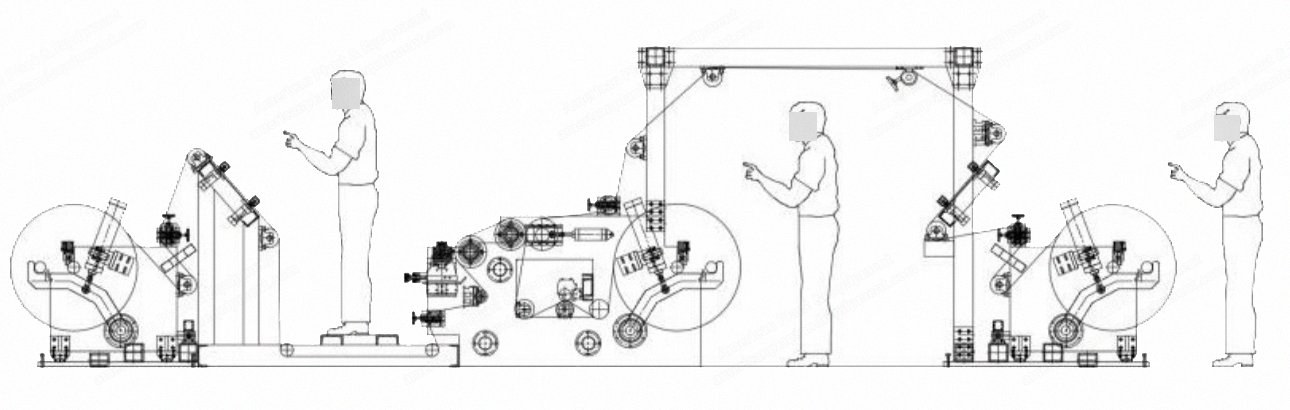

NovaStar, CG199, Slot Die Coating Machine, 1550mm Max Coating Width, 150kg/h Glue Melting Speed (New)

NovaStar, CG199, Slot Die Coating Machine, 1550mm Max Coating Width, 150kg/h Glue Melting Speed

Description

  1. Application
    1. Hot melt sensitive pressure adhesive coating and lamination line, for coating, lamination, peeling, rewinding function.
    2. Application material: PET, PVC, paper etc.
    3. Procedure: includes microcomputer PLC, touch screen control, simple operation and high automation.
  2. Machine Features
    1. Includes microcomputer PLC, touch screen control, simple operation and high automation.
    2. Using high wear-resistant alloy steel slot die, with coating control accuracy and good service life.
    3. An overall coating adjustment bracket is included, and the repeat positioning accuracy is precise.
    4. Automatically tracks and displays and stores the amount of glue needed, making the operation and use convenient and fast.
    5. The first unwinding is equipped with a web guiding device, with a high-performance infrared sensor and electric controller to ensure the even let off of the material roll.
    6. The heating temperature is all centrally controlled by PLC.
    7. The amount of glue supplied by the metering pump for the coating width is input by the worker, and the amount of glue supplied will be automatically calculated and supplied to the die slot.
  3. Specifications
    1. Voltage: 440/220/60Hz
    2. Capacity: 150 kg/h glue melting speed
    3. Dimensions: 9000x6600x2300mm
    4. Roller width: 1700mm
    5. Coating weight: 20 to 250g/m2
    6. Installed power: about 95kw
    7. Mechanical power: about 30kw
    8. Maximum coating width: 1550mm
