NovaStar, SV102, 460W, 21.16% Efficiency, 144 Cells, 2094x1038x35mm (New)

NovaStar, SV102, 460W, 21.16% Efficiency, 144 Cells, 2094x1038x35mm

Description

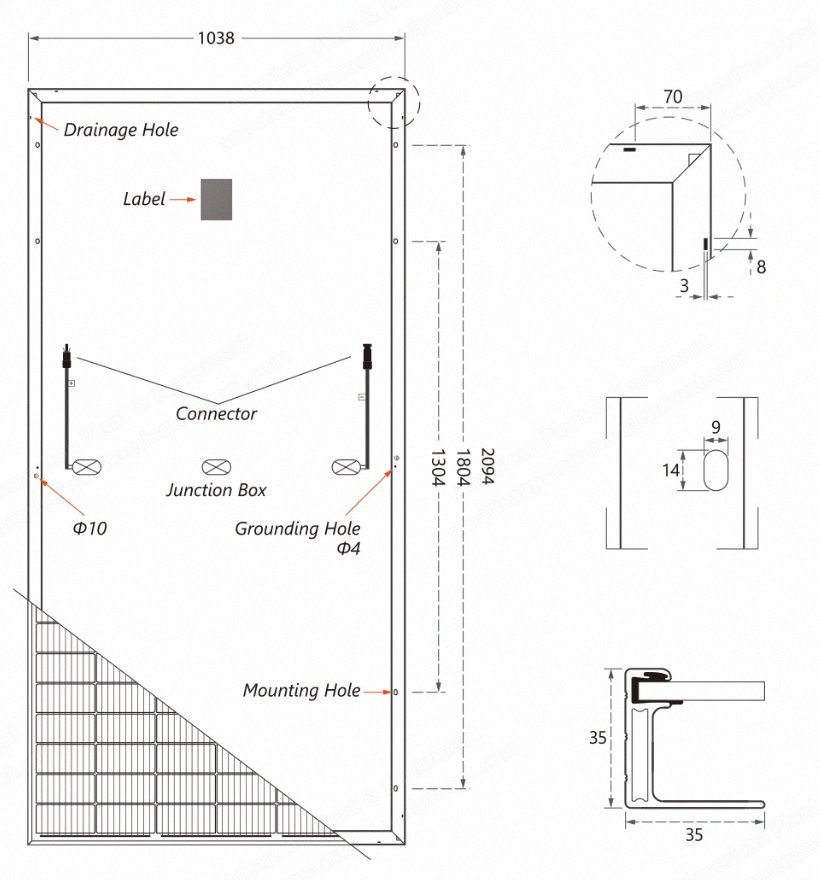

  1. Design
    1. Mechanical specification
  2. Mechanical Specifications
    1. Dimension (L x W x T): 2094 x 1038 x 35 mm
    2. Weight: 23.5 kg
    3. Packing: 31 pcs/pallet, 682 pcs/40hq
    4. Cable (including connector): 4.0 mm², portrait: 350 mm (+)/350 mm (-); landscape: 1400 mm (+)/1400 mm (-)
    5. Number of cells: 144 (6 x 24)
    6. Glass: 3.2 mm high transmission, antireflection coating
    7. Junction box: IP68, 3 bypass diodes
    8. Connector: MC4 compatible
  3. Operating Parameters
    1. Maximum system voltage: 1000 V/1500 V DC
    2. Operating temperature: -40 to +85 °C
    3. Maximum series fuse rating: 20 A
    4. Snow load, frontside: 5400 Pa
    5. Wind load, backside: 3600 Pa
    6. Nominal operating cell temperature: 45 °C ± 2 °C
    7. Application level: class A
  4. Electrical Characteristics (STC)
    1. Maximum power (Pmax): 460 W
    2. Open-circuit voltage (Voc): 49.60 V
    3. Maximum power voltage (Vmp): 42.41 V
    4. Short-circuit current (Isc): 11.41 A
    5. Maximum power current (Imp): 10.85 A
    6. Module efficiency: 21.16%
  5. Specifications
    1. Cell type: ONO 166 x 83mm
