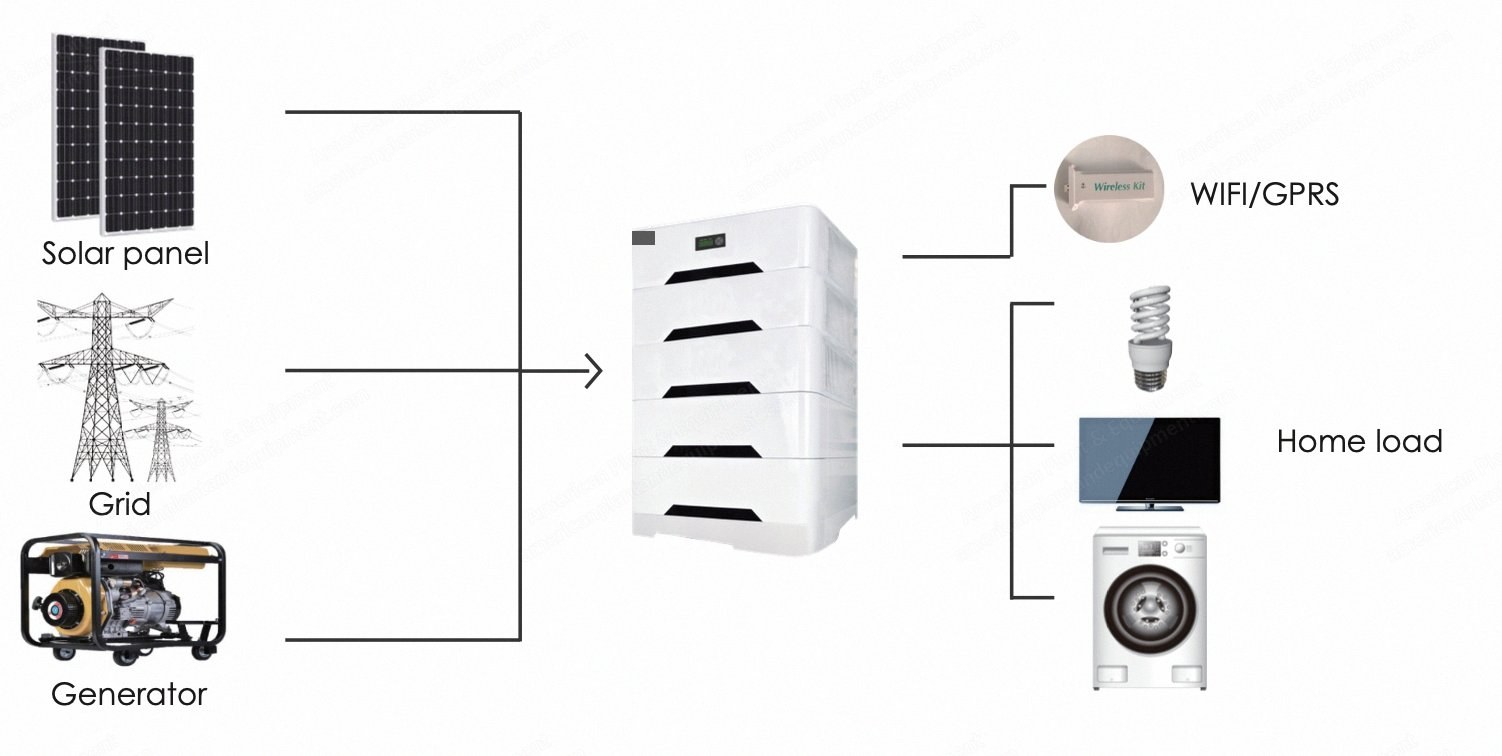

NovaStar, SV106, Three-Phase 208V, 9000W, 20kWh Solar Storage System (New)

NovaStar, SV106, Three-Phase 208V, 9000W, 20kWh Solar Storage System

Description

  1. Technical Data
    1. Model: JNSG9KHF4810-A-V1, JNSG9KHF4815-A-V1, NSG9KHF4820-A-V1
    2. PV input: maximum PV input voltage 250 VDC
    3. Recommended input power: 12000 W
    4. MPPT voltage range: 120~250 VDC
    5. Battery rated voltage: 48 VDC
    6. Maximum charge current: 240 A
    7. Efficiency: ≥97%
    8. Battery type and rated capacity: GEL/lithium & 10 kWh (JNSG9KHF4810-A-V1), GEL/lithium & 15 kWh (JNSG9KHF4815-A-V1), GEL/lithium & 20 kWh (NSG9KHF4820-A-V1)
    9. AC input voltage and frequency: three-phase power 208 VAC, 60 Hz (±3%)
    10. Maximum AC charge current: 180 A
    11. Switching time: ≤10 ms
    12. Inverter output rated capacity: 9000 VA (all models)
    13. Rated output power (linear load): 9000 W (all models)
    14. Output voltage: L-N 120 VAC, L1-L2-L3-N 208 VAC
    15. Rated frequency: 60 Hz (±3%)
    16. Standby loss: ≤30 W
    17. Maximum efficiency: 93%
    18. Waveform: sine wave
    19. Total harmonic distortion (THD): <3%
    20. Overload: 5 s at ≥150% load; 10 s at 110%~150% load
    21. Protection level: IP21
    22. Audible noise: <60 dB
    23. Cooling method: forced cooling
    24. Operating temperature: -20~+50°C
    25. Storage temperature: -25~+70°C
    26. Status indicator: LCD+LED
    27. Interface: RS485/WiFi
    28. Altitude: 2000 m (>2000 m derating operate)
    29. Dimension (W x D x H): 674 x 1093 x 480 mm (JNSG9KHF4810-A-V1), 674 x 1291 x 480 mm (JNSG9KHF4815-A-V1), 674 x 1498 x 480 mm (NSG9KHF4820-A-V1)
    30. Weight: 201 kg (JNSG9KHF4810-A-V1), 281 kg (JNSG9KHF4815-A-V1), 350 kg (NSG9KHF4820-A-V1)
