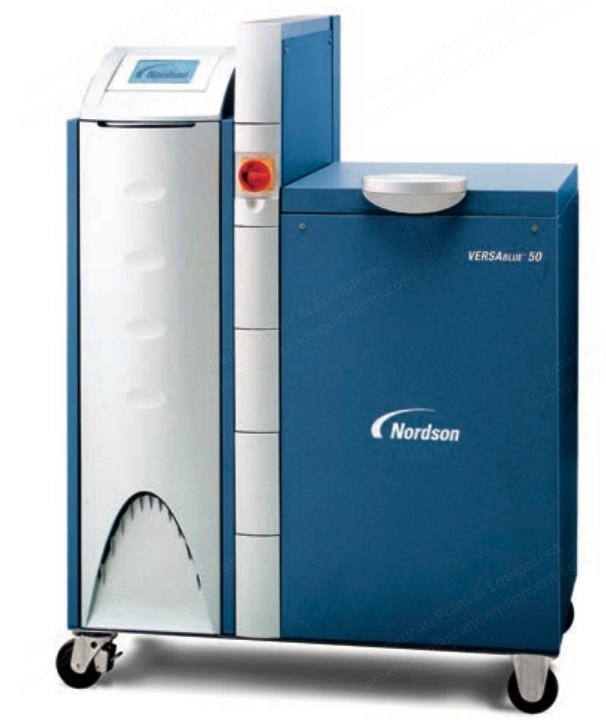

Nordson, VersaBlue V50, New, 50L Capacity, 1 or 2 Pumps, 40-230 deg C (New)

Nordson, VersaBlue V50, New, 50L Capacity, 1 or 2 Pumps, 40-230 deg C

Description

  1. System Type
    1. Release-coated grid and reservoir spur-gear pump with variable speed AC motor
    2. Number of pumps: 1 or 2
    3. Maximum pump rate: 14–82 kg/hr (3–180 lb/hr)
    4. Filter type: Saturn basket-style filter
    5. Maximum working hydraulic pressure: 85 bars / 8.5 MPa (1230 psi)
    6. Operating temperature range: 40–230 °C (100–450 °F)
    7. Ambient temperature range: 0–40 °C (32–104 °F)
    8. Temperature control stability: ±1 °C (2 °F)
    9. Input/output capability (standard): 7 outputs; 10 inputs
    10. Maximum pressure sensors: 2
    11. Protection: IP54
  2. Electrical Specifications
    1. Electrical service: 200 VAC 3-phase 50/60 Hz, 200–240 VAC 3-phase 50/60 Hz, 380–415 VAC-Y (3-phase N/PE) 50/60 Hz, 400 VAC 3-phase 50/60 Hz, 480 VAC 3-phase 50/60 Hz
    2. Maximum system power capacity for 2 hoses/applicators: 14875 watts
    3. Maximum system power capacity for 4 hoses/applicators: 18475 watts
    4. Maximum system power capacity for 6 hoses/applicators: 22075 watts
    5. Maximum system power capacity for 8 hoses/applicators: not applicable
    6. Permitted deviation from rated line voltage is ±10%
  3. Dimensions and Weight
    1. Melter dimensions (W x H x D): 1000 x 1382 x 782 mm (39.4 x 54.4 x 30.8)
    2. Installation dimensions (W x H x D): 1760 x 1661 x 1125 mm (69.3 x 65.4 x 44.3)
    3. Weight (empty): 275 kg (606 lbs)
  4. Capacity and Throughput
    1. Holding capacity: 50 L (3051 in³) / 48.5 kg (106.7 lb)
    2. Throughput (per hour): 75 kg (165 lb)
    3. Melt rate (per hour): 50 kg (110 lb)
    4. Number of applicators: 2, 4, or 6
  5. Notes
    1. Actual rates will vary depending on adhesive type, application parameters and input voltage
    2. Range given is for maximum pump rate of various pumps available
    3. High temperature unit available with operating range of 40–250°C (100–480°F)
    4. Weight depends on melter configuration
    5. Casters optional
    6. Profibus and Ethernet I/P optional
    7. Profibus is a registered trademark of Profibus & Profinet International
