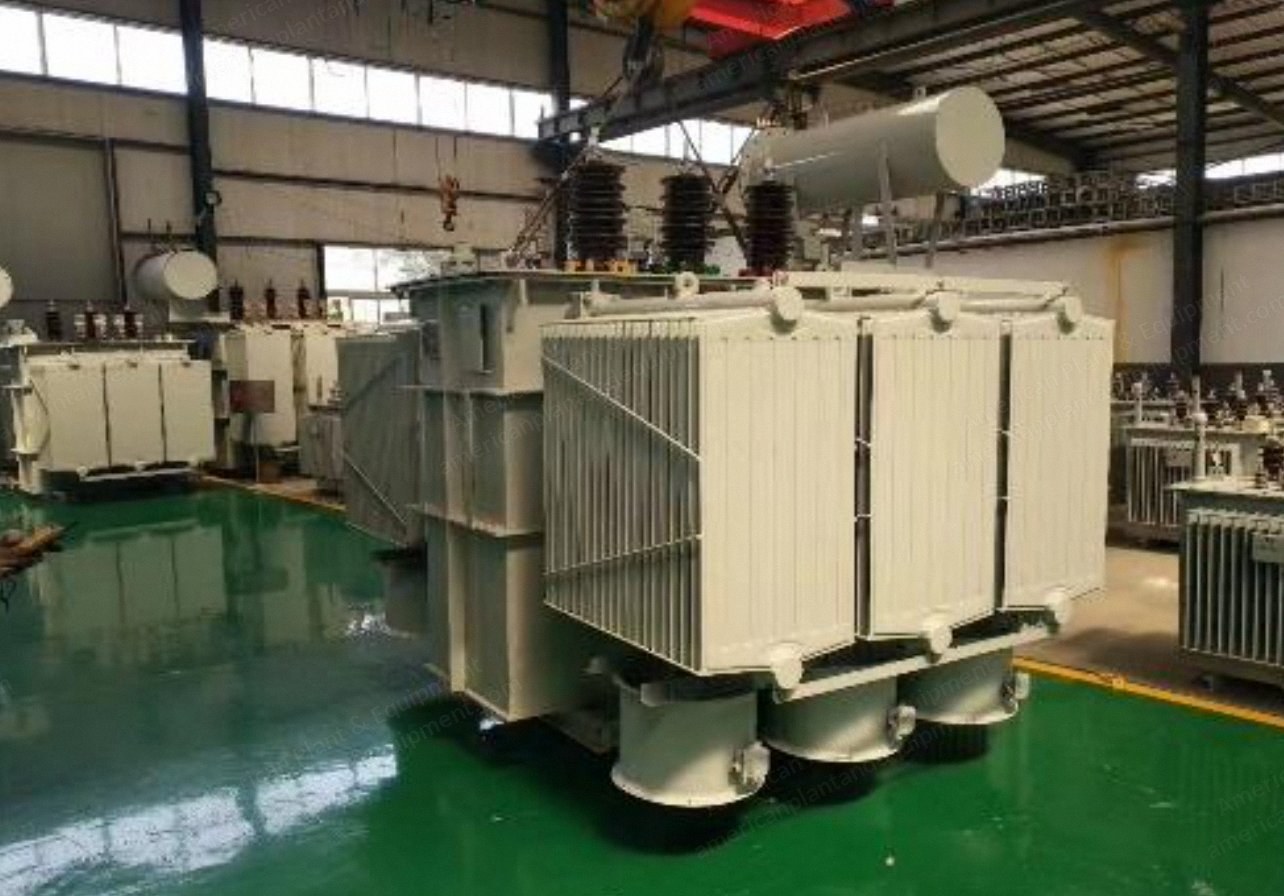

NovaStar, MS538, 30MVA, Oil Immersed Power Distribution Transformer, 11/13.2 kV, Copper Winding (New)

NovaStar, MS538, 30MVA, Oil Immersed Power Distribution Transformer, 11/13.2 kV, Copper Winding

Description

  1. Overview
    1. Three-phase oil immersed power distribution transformer
    2. Rated capacity: 30 MVA
    3. Primary voltage: 11 kV
    4. Secondary voltage: 13.2 kV
    5. Rated frequency: 50 Hz
  2. Specifications
    1. Tap range: ±2 x 2.5%, 5 steps, NLTC
    2. Vector group: Dyn11
    3. Copper winding
    4. Cooling method: ONAN
    5. Impedance: 7%
    6. Loss: TBD
  3. Condition

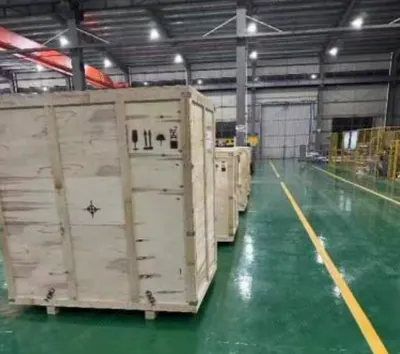

    1. Packaging picture (fumigation-free) available
