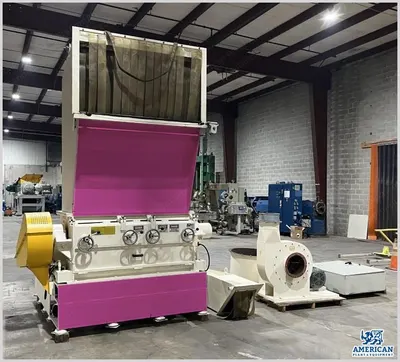

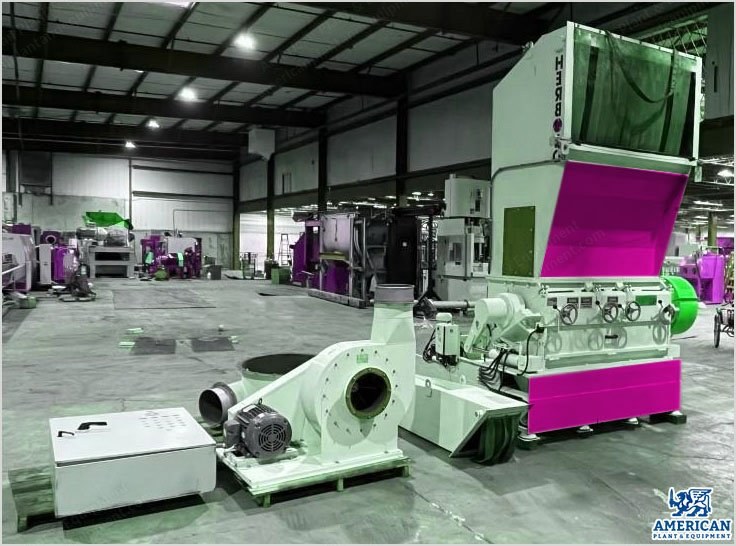

Herbold, SM450/1600 H5-3, 2000, 23x61 inch, 120 HP, 5 Fly Knife Open Rotor

Herbold, SM450/1600 H5-3, 2000, 23x61 inch, 120 HP, 5 Fly Knife Open Rotor

Description

  1. Overview
    1. 120 hp motor
    2. 5 fly knife open rotor
    3. 3 bed knives
    4. 17 in rotor diameter
    5. 1785 rpm
    6. 460/3/60 – 137 amp
    7. Hydraulic chamber tilt and cradle drop
    8. Expected output: 1,984-4,409 lbs/hr (per manufacturer)
  2. Included Equipment
    1. Hopper with profile chute (not currently installed)
    2. 20 hp blower and cyclone with stand
    3. Starter panel included
  3. Cyclone Specifications
    1. Discharge height: 87 in
    2. Height on stand: 19 ft 8 in
    3. Diameter: 64 in
  4. Granulator Dimensions and Weight
    1. Dimensions: 102 in x 90 in
    2. Weight: 14,109 lbs
  5. Infeed Height
    1. Infeed height: 103 in
  6. Specifications
    1. Weight: 6400
