NovaStar, WM429, Leno Mesh Bag Weaving Loom, Water Jet Loom, Working Width 1000mm to 4400mm (New)

Description

Overview
1. New weaving loom for producing PP/PE leno mesh bags used in packaging of onions, garlic, and similar products.
2. Strong frame and loom body with electronic feeder and automatic weft density change unit ensure smooth running, high efficiency, and better fabric quality.
3. Economic configurations use crank shedding at the bottom, mechanical feeder, and weft density change by gear.
Specifications
1. Reed space: 110 cm, 150 cm, 230 cm, 260 cm, 360 cm, 460 cm
2. Working width: 1000 mm, 1300 mm, 2100 mm, 2400 mm, 3400 mm, 4400 mm
3. Weft insertion: 1 pump, 1 nozzle; positive cam plunger water pump; intermittent adjustable annular nozzle
4. Measuring and weft storage: electronic feeder
5. Weft density change: by gear; inverter automatic change
6. Weft feeler: photoelectric induction weft detection
7. Motor power: 2.2~4.5 kW
8. Auxiliary power: 0.7~1.5 kW
9. Speed: 250~700 rpm
10. Shedding: crank shedding at bottom
11. Let-off: mechanical let-off
12. Take-up: electronic take-up; maximum winding diameter 1500 mm
13. Leno mesh range: gsm 10~70 gsm (up to the yarn quality); maximum weft yarn width 4 mm; minimum weft yarn thickness 0.05 mm; weaving density 1~3/inch
Condition
1. New machine.
Included
1. Video available on YouTube.

HS code	8446.30

Capacity	10-70GSM
Dobby	Crank shedding at bottom

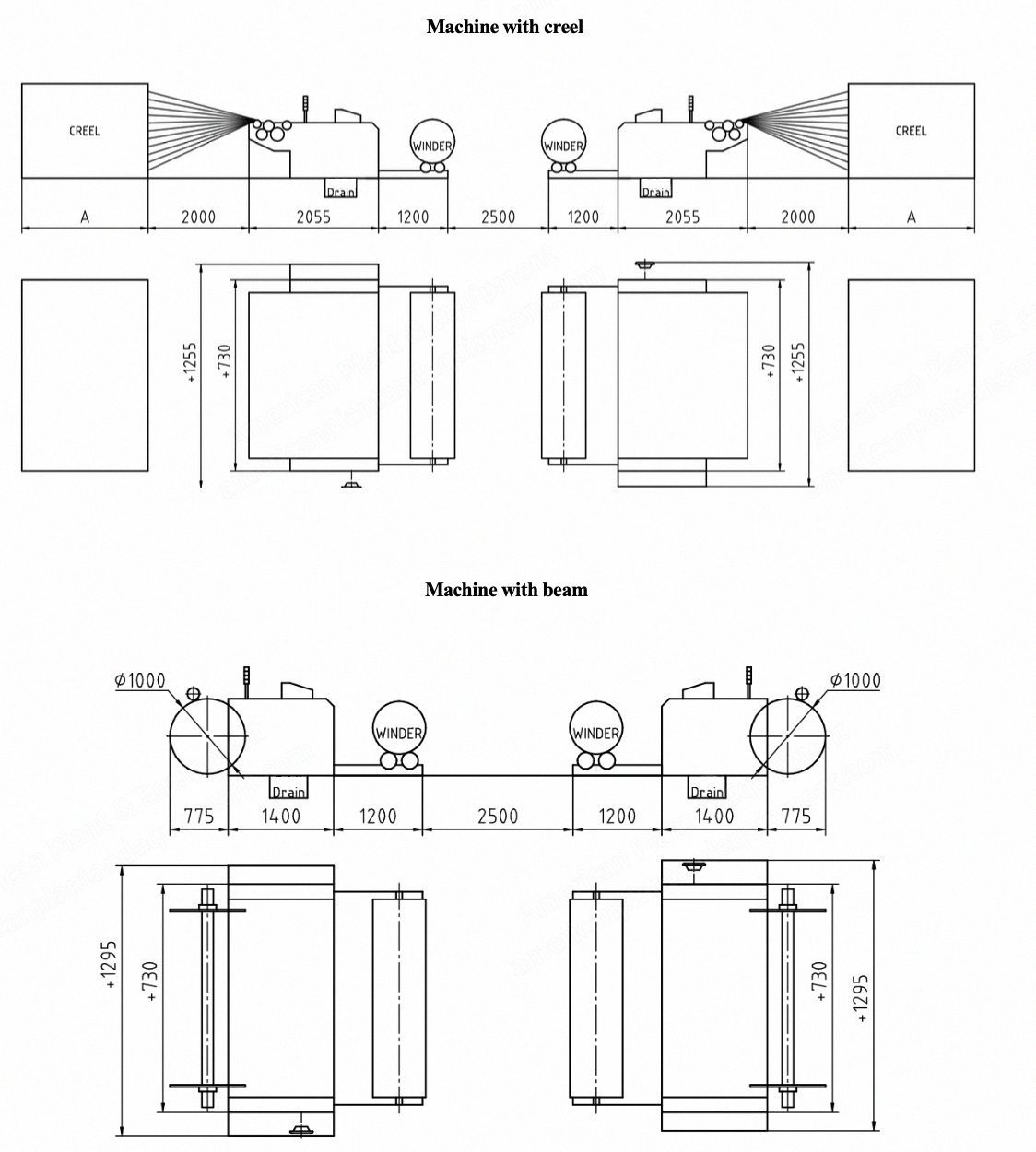

Dimensions	Working width 1000mm to 4400mm

Max speed	250-700RPM

Motor power	2.2-4.5 kW
