MTU, 20V4000G43, 2008, 2500kW Diesel Generator Set, 440V, 60Hz

MTU, 20V4000G43, 2008, 2500kW Diesel Generator Set, 440V, 60Hz

Description

  1. Details

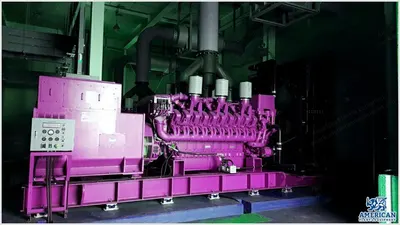

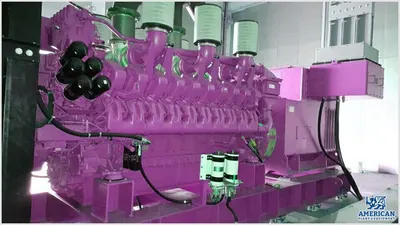

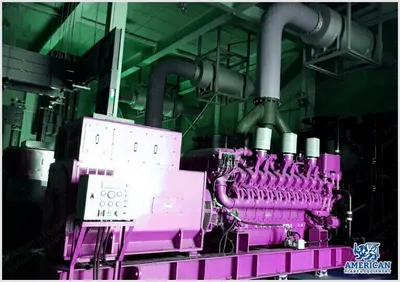

    1. 2500 kW diesel geneset, 3 units.
    2. Type: package type (on one base plate).
    3. Never used gensets.
    4. Engine manufacturer: MTU.
    5. Alternator manufacturer: Hyundai.
    6. Year: 2011 x 2 units and 2008 x one uni.
    7. Fuel: diesel.
    8. Hours: test hours only.
    9. Can be run for testing.

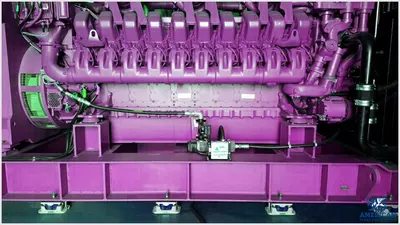

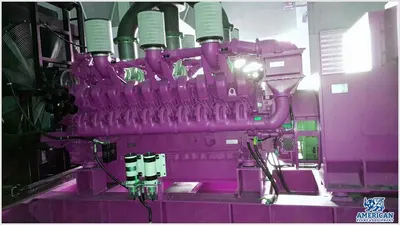

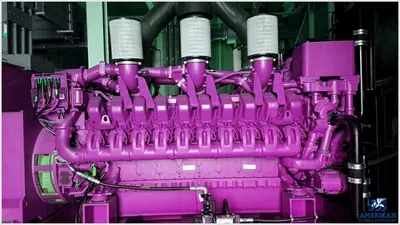

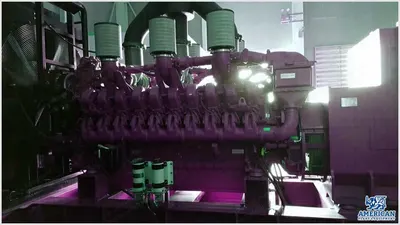

  2. Engine Specification
    1. Engine model: 20V4000G43.
    2. Engine type: 4 stroke, water cooled.
    3. Aspiration type: terbo charger, intelcooler.
    4. Power: 2740 kWh.
    5. RPM: 1800.
    6. Number of cylinders: 20.
    7. Cylinder configuration: 90 vee.
    8. Bore: 170 mm.
    9. Stroke: 210 mm.
    10. Displacement: 95.4 liter.
    11. Compression ratio: 16.4:1.
    12. Combustion system: direct injection.
    13. Mean effective pressure: 19.2 bar.
    14. Mean piston speed: 12.6 m/s.
    15. Governor type: ADEC.

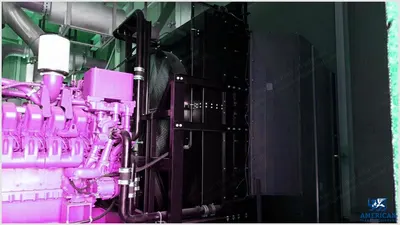

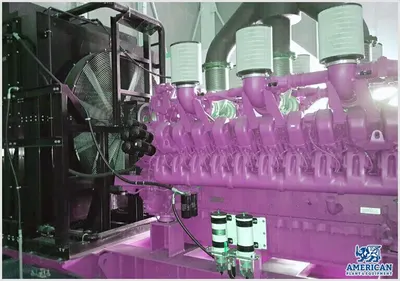

    16. Cooling system: radiator.

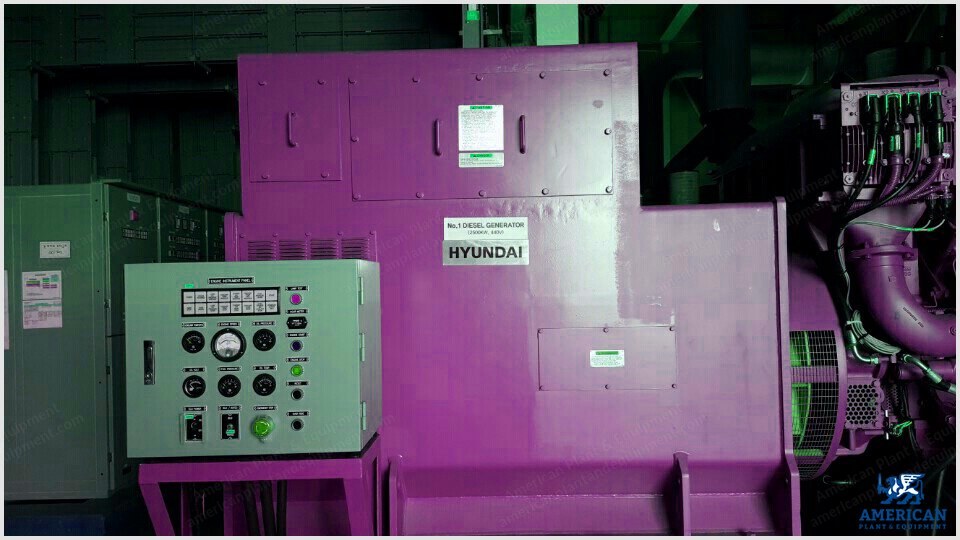

  3. Alternator Specification
    1. Make: Hyundai (Korea).
    2. Year: 2011.
    3. Type: HFC7638-4P.
    4. Rated capacity: 2500 kW.
    5. Factor: 0.8.
    6. Rated voltage: 440 V.
    7. Rated current: 4100.5 A.
    8. RPM: 1800.
    9. Hz: 60.
    10. Brushless self-exciting type.
    11. Poles: 4.
    12. 3 phases.
    13. Bearing: anti-friction bearing.
    14. Insullation class: F.
    15. Voltage adjustment range: plus minus 10%.
    16. Cooling type: air cooled.
  4. Engine Dimension
    1. 3586 mm x 1613 mm x 2077 mm.
    2. Weight: 9864 kg.
  5. Technical Data
    1. Combustion air/exaust gas: combustion air volume flow 225 m3/sec.
    2. Exaust temperature after turbocharger: 455.
    3. Exaust back pressure (desgn/limit value: 30/85 mbar).
    4. Fuel system: fuel specification EN590grade NR, 1/2-D (ASTM D975), class A2 (BS 2869).
    5. Fuel consumption at 100% load: 197 g/kWh.
    6. Fuel consumption at 75% load: 210 g/kWh.
    7. Fuel consumption at 50% load: 225 g/kWh.
    8. Fuel consumption at 25% load: 259 g/kWh.
    9. Fuel consumption at no load: 57 kg/hr.
    10. Lube oil: API CG-4 and ACEA E2-96, SE 15W-40.
    11. Coolant system (high temperature): coolant water capacity 205 liter.
    12. Coolant temperature (engine outlet): 100.
    13. Coolant flow rate: 94 m3/h.
    14. 5.Coolant system (low temperature): coolant water capacity (intercooler) 55 liter.
    15. Coolant temperature (intercooler inlet): 55.
    16. Coolant flow rate: 94 m3/h.
    17. Noise: engine surface noise 115 dB(A).
    18. Undamped exaust gas noise: 128 dB(A).
    19. Engine protection (alarm/shutdown): cooling water over temperature 102/104.
    20. Intercooler over temperature: 75.
    21. Lubrication oil low pressure: 3.9 bar/3.6 bar.
    22. Lubrication over temperature: 99/101.
    23. Fuel over temperature: 100.
    24. Engine over speed: / 1950 rpm.
    25. Control system: paralleling load sharing panels, MCB cabinets.
  6. Supply List

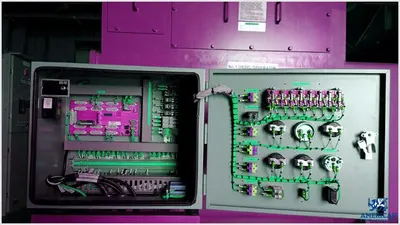

    1. Item 1: engine + generator (including start panel, steel stands), 3 sets.
    2. Common type control panel, one set.
    3. Fuel tank, one set.
    4. Exhaust pipe, 3 sets.
