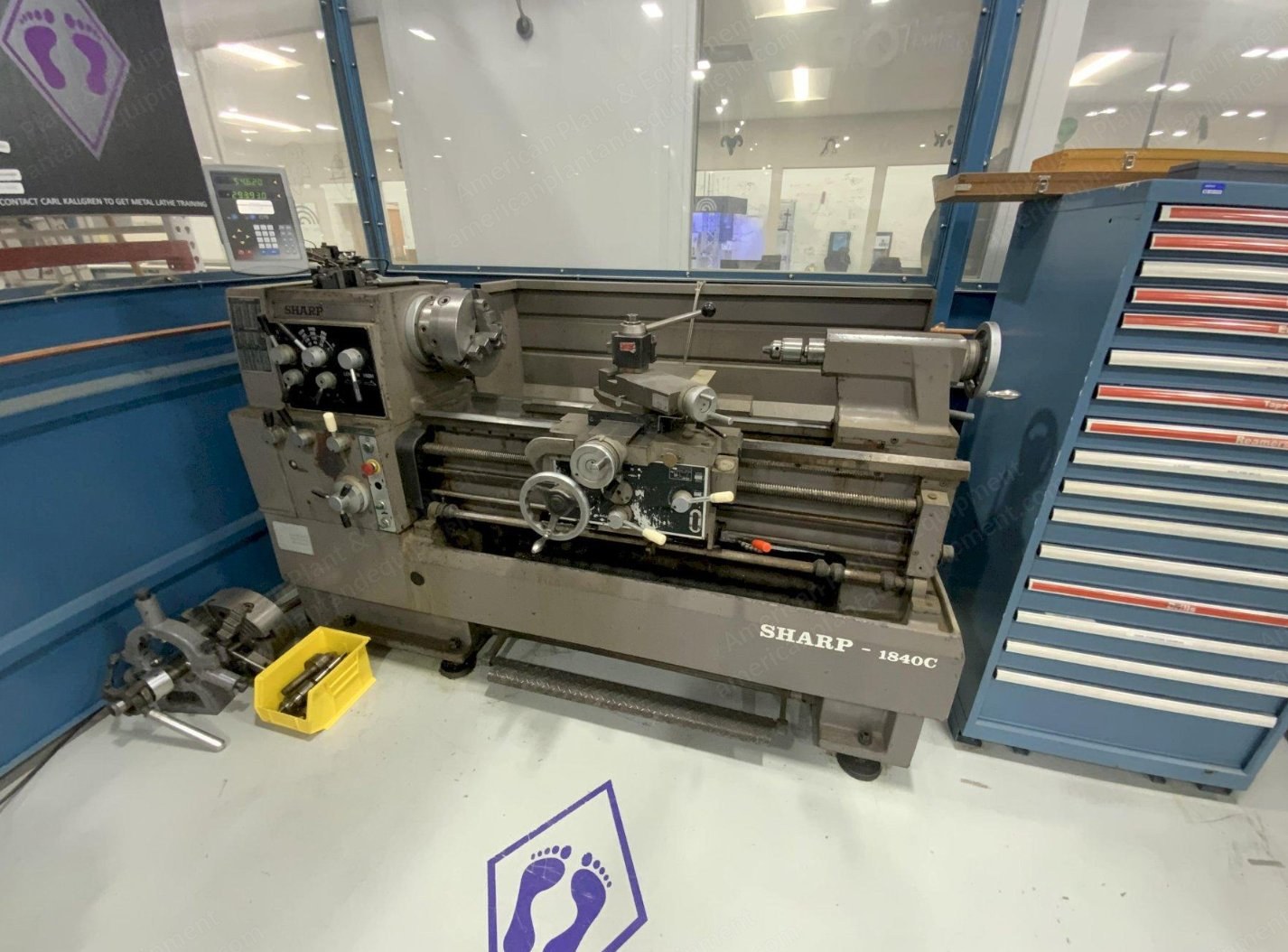

Sharp, 1840C, 2003, 18" Swing, 40" Distance Between Centers, 7.5 HP

Sharp, 1840C, 2003, 18" Swing, 40" Distance Between Centers, 7.5 HP

Description

  1. Overview
    1. Type: lathes, engine
    2. Brand: Sharp
    3. Model: 1840C
    4. Year: 2003
  2. Specifications
    1. Swing over bed: 18 inches
    2. Swing in gap: 24 inches
    3. Length of gap: 10 inches
    4. Distance between centers: 40 inches
    5. Width of bed: 8 inches
    6. Spindle nose: D1-6
    7. Spindle bore: 2 inches
    8. Spindle speeds: 20 to 2,000 rpm

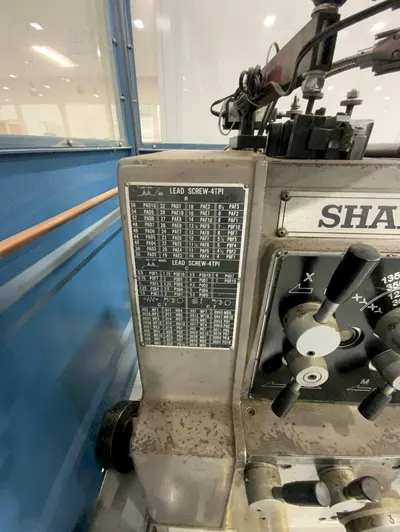

    9. Leadscrew pitch / diameter: 4 tpi/inch
    10. Inch threads: 4-56 tpi
    11. Metric threads: 0.5 to 7.0 mm
    12. Longitudinal feeds: 0.002 to 0.032 inch/rev
    13. Cross feeds: 0.001 to 0.0094 inch/rev
    14. Tailstock taper: MT-4
    15. Travel of tailstock quill: 5.5 inches
    16. Motor: 7.5 hp
    17. Dimensions: 92" x 40" x 50"
    18. Approximate weight: 3,000 pounds
    19. Weight: 1361
  3. Condition
    1. Good
  4. Included Equipment
    1. Newall model C-70 2-axis digital readout
    2. Tailstock
    3. Coolant
    4. 10" 3-jaw chuck
    5. 10" 4-jaw chuck
    6. 12" 4-jaw chuck
    7. Steady rest
    8. Aloris CXA toolpost
    9. (3) Aloris tool holders
    10. Live/dead centers
    11. Drill chucks
