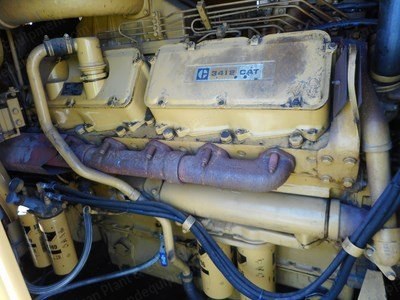

Caterpillar, SR4, 520 kW, 650 kVA, 1800 RPM, 60Hz, V-12 Diesel Generator

Caterpillar, SR4, 520 kW, 650 kVA, 1800 RPM, 60Hz, V-12 Diesel Generator

Description

  1. Overview
    1. 520 kw diesel fired backup generator
    2. Manufactured by Caterpillar
    3. Gen set #3412 / model SR4
    4. Generator #588
    5. Water cooled, turbocharged and aftercooled
    6. Four stroke v-12
    7. With sound and weather enclosure
  2. Specifications
    1. 3 phase / 10 wire / 650 kva (520 kw) / 1800 rpm / 60 hz
    2. Cat gen set, brushless, revolving field solid state exciter, single bearing, close coupled
    3. Connection wye driven by a 755 hp cat engine
    4. Engine serial: 38S10523
  3. Dimensions
    1. With skid and enclosure: 150.55" long x 69" wide x 84.16" high
