Killion, KLB-075, 3/4" Extruder, 32:1 L/D, 1.5 HP, 4 Zones

Killion, KLB-075, 3/4" Extruder, 32:1 L/D, 1.5 HP, 4 Zones

Description

  1. Overview

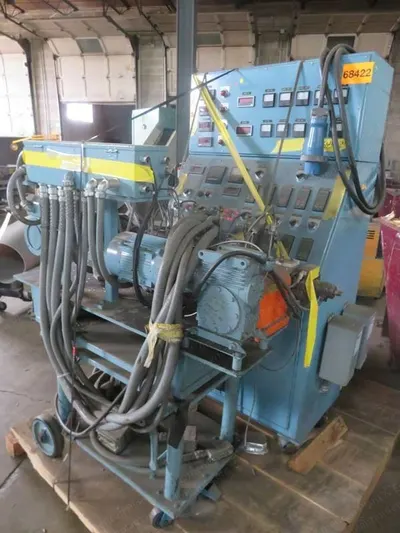

    1. Used Killion model KLB-075 3/4″ 32:1 extruder
    2. Non-vented barrel at approximately a 38″ center-line height

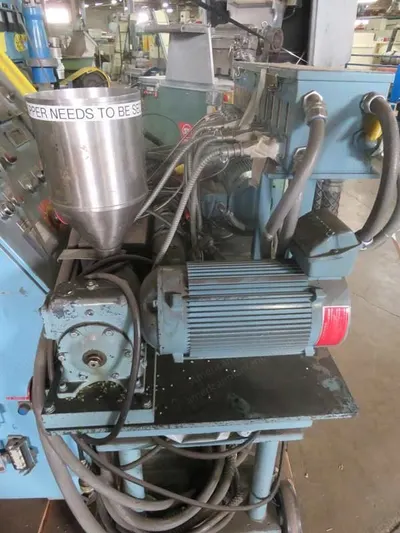

    3. Gearbox is belt driven by a 1.5 hp brush-less d/c motor
    4. 208/3/60 electrical supply
    5. 14.3 kva power rating
  2. Heating And Cooling
    1. Four (4) zones electrically heated and air cooled
  3. Control Panel

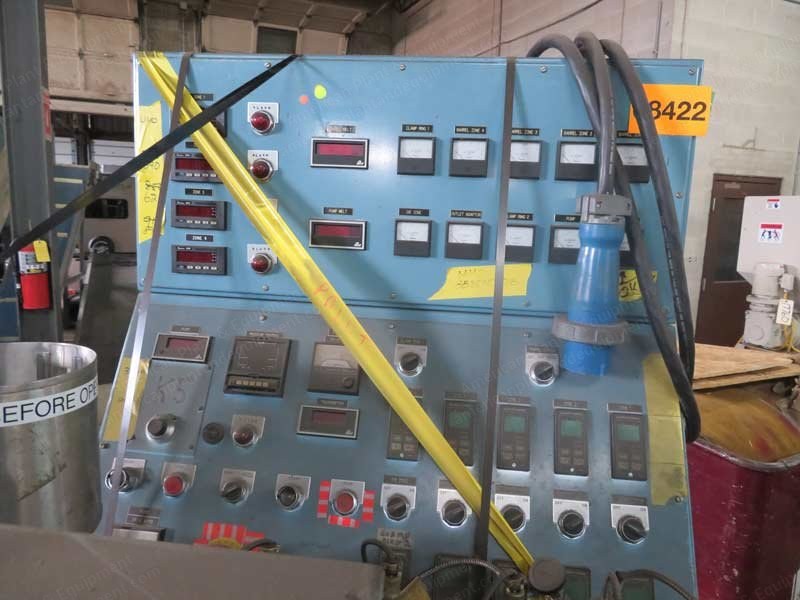

    1. Caster mounted temperature control panel has seven (7) zones of controllers
    2. Four (4) zones for the barrel and three (3) zones for the downstream
  4. Included Components
    1. Melt pump with 1 hp drive mounted on the extruder discharge
    2. Mounted on the same portable cart
  5. Specifications
    1. Serial number: 18442
