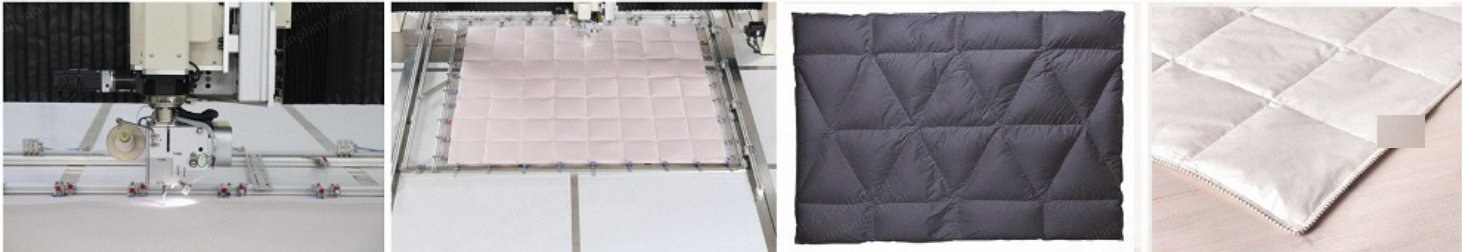

NovaStar, QL279, 2023, Large Scale Precision Quilting Machine, 2600x2800mm Max Working Size, 1800 to 2500 RPM Working Speed, 360 Degree Rotary Head (New)

NovaStar, QL279, 2023, Large Scale Precision Quilting Machine, 2600x2800mm Max Working Size, 1800 to 2500 RPM Working Speed, 360 Degree Rotary Head

Description

  1. Overview
    1. Rotary 360 degree machine head, more patterns stitching available.
    2. Special 9-11# needle for duvet.
    3. Working speed: 1800-2500 rpm.
    4. Down-proof pressure foot, prevent down leakage during sewing.
    5. Full servo motor drive to achieve stable sewing.
    6. Maximum working size: 2600 x 2800 mm.
    7. Lifting head.
    8. Bridge type structure.
  2. Control System
    1. Computer control system with cad sewing pattern software.
    2. Pattern data reading method: usb.
  3. Specifications
    1. Stitch type is single needle lockstitch.
    2. Stitch step: 0.5 to 12 mm.
    3. Sewing head lifting stroke: 50 mm.
    4. Presser foot lifting height: 0 to 15 mm.
    5. Trimming method: pneumatic trimming.
    6. Rotary hook: koban japan 2x jumbo rotary hook.
    7. Power: 220 volts, single phase, 50 hz.
  4. Additional Features
    1. Down-proof presser foot.
    2. Presser foot is controlled through pneumatic device.
    3. X and y directions are driven by ball screws.
  5. Included Items
    1. With automatic frame changer (down duvet special use frame with light checking box) and one regular frame.
