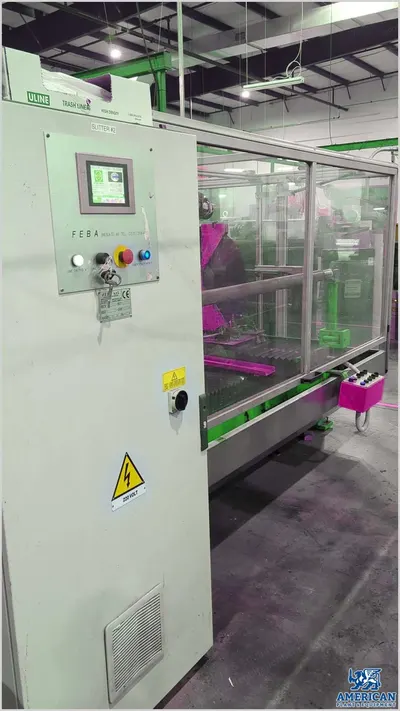

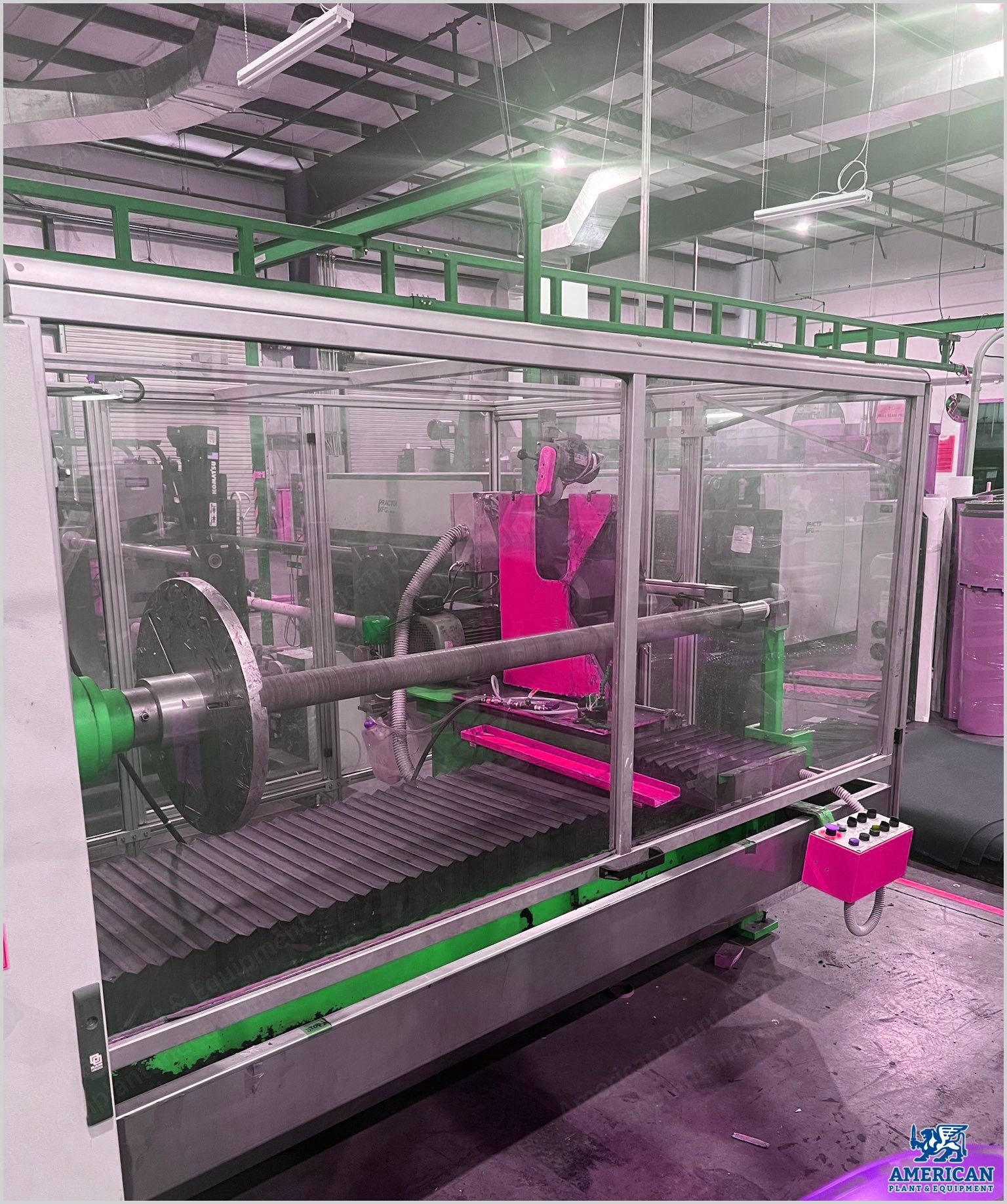

Feba, F600, 2014, 1600mm Maximum Material Width, 600mm Maximum Log Diameter, 11.3 HP

Feba, F600, 2014, 1600mm Maximum Material Width, 600mm Maximum Log Diameter, 11.3 HP

Description

  1. Overview
    1. Used Feba F600 single knife slitter purchased new in 2014.
  2. Specifications
    1. Maximum material width: 1600 mm (63).
    2. Maximum log diameter: 600 mm with 700 mm blade core id 3.
    3. Cutting widths: 2 to 1600 mm.
    4. Positioning tolerance: +/- 0.1 mm.
    5. Blade speed range: 10 to 600 rpm.
    6. Material speed range: 10 to 600 rpm.
    7. Power: 220 V, 3 phases, 60 Hz.
  3. Blade and Motor
    1. Circular slitting blade at 700 mm outside diameter.
    2. 11.3 hp blade motor.
    3. Automatic lubricating and cooling system complete with recirculation.
    4. Automatic double-sided blade polishing unit with two 0.20 kw motors and two diamond wheel sharpening stones.
  4. Carriage and Positioning
    1. Slitting carriage positioned on precision-ground linear bearings, providing low friction travel and optimum accuracy.
    2. Operation of the slitting head is on the horizontal plane.
    3. Proportional blade penetration speeds via ac brushless motors with fast approaching to the external diameter of the log, proportional speed for the material, and adjustable for the core.
    4. Adjustable dwell period for the holding of the blade against the shaft to perform clean core cutting.
    5. Transversal displacement is performed by a brushless motor that guarantees precision (+/- 0.1 mm) and rapid positioning.
    6. Automatic adjustable blade axis angle (+/- 5°).
  5. Shaft and Support
    1. One 3 in rotating shaft complete with rubber sleeves, automatic internal material gripping, manual exterior material gripping.
    2. Manual shaft support.
  6. Controls
    1. Plc omron with 5 in color touchscreen display.
    2. Can store up to 50 recipes.
