NovaStar, LC169, Continuous Double Belt Lamination Machine, Width 500 to 3200mm, Thickness 0.5 to 100mm, 18 Heating Zones (New)

NovaStar, LC169, Continuous Double Belt Lamination Machine, Width 500 to 3200mm, Thickness 0.5 to 100mm, 18 Heating Zones

Description

  1. Overview
    1. Production line for composite fabric structures - laminated.

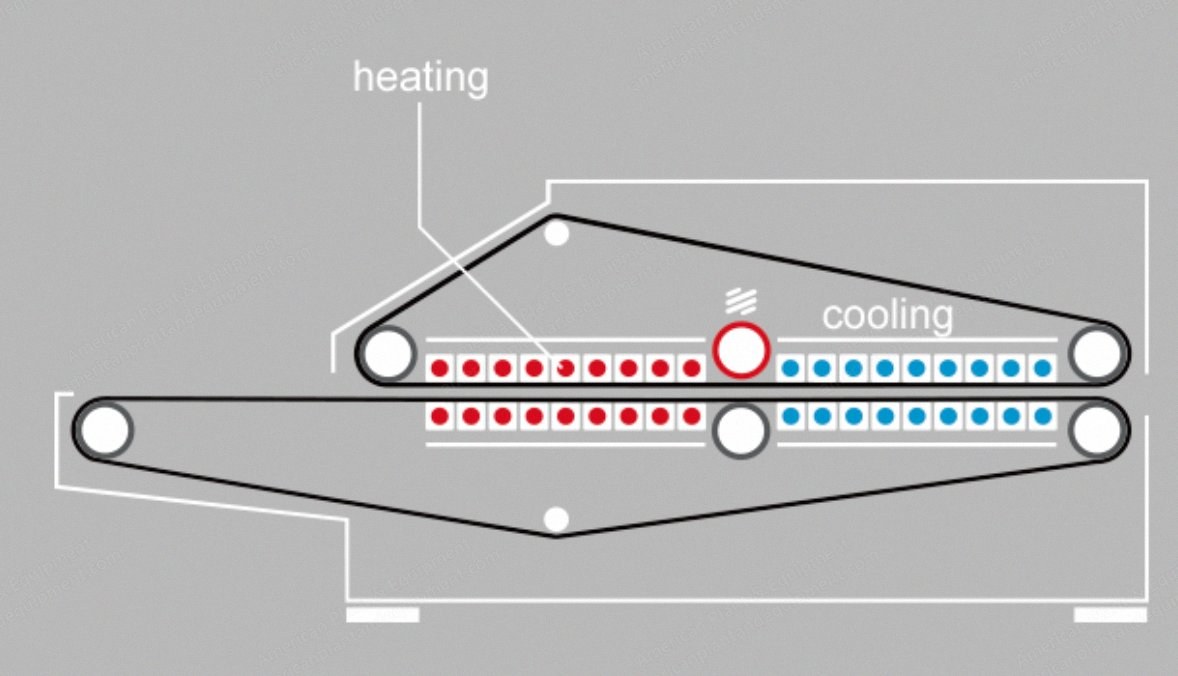

    2. Integrated double-belt press with contact heating and contact cooling.
    3. Top belt unit adjustable by precise spindle movement to adjust the gap to material thickness.
    4. Gently heats material to achieve best bonding with strong bonding strength in each length of the heating zone.
    5. After heating, material is compressed by a calender roller or calibrated to a defined thickness.
    6. Cooling process inside the machine achieves higher stability on the fabric.
    7. High-precision workflow allows smooth lamination with precise height adjustment.
    8. Can laminate high-strength material up to 150 mm thickness.
  2. Heating System
    1. 18 heating zones total: 9 zones in the top heating system and 9 zones in the bottom heating system.
    2. 18 control areas at the top and bottom of the central area on both sides are the same.
    3. Each of the 18 heating zones is controlled independently.
    4. Zone control can be adjusted according to specifications.
  3. Adhesive Types
    1. Hot melt adhesive.
    2. Reactive adhesive.
    3. Adhesives that have their own viscous component.
    4. Soluble adhesive.
  4. Technical Specifications
    1. Composite thickness: 0.5 to 100 mm.
    2. Width: 500 to 3200 mm.
    3. Heating zone temperature: up to 250 °C.
    4. Tolerance of heating zone temperature: ±3 °C.
    5. Length of heating zone: 500 to 6000 mm.
    6. Heating power: according to the length of the heating zone.
    7. Total power: according to the length of the heating zone.
    8. Distance between upper and lower pressure series: 0 to 150 mm.
    9. Conveyor belt form: anti-static Teflon belt (with connector).
    10. Conveyor belt thickness: 0.50 mm.
    11. Maximum working pressure of conveyor belt: 0 to 50 N/cm².
    12. Design speed: 0.1 to 15 m/min.
    13. Maximum unwinding diameter of film material: customized according to customer.
    14. Control system: Delta, Siemens or customized according to customer requirements.
    15. Bonding type: thermoplastic, reactive adhesive, self-adhesive system, solvent glue.
    16. Adhesive: powder, liquid, omentum, film, thermal liquefaction particles.
  5. Composite Materials

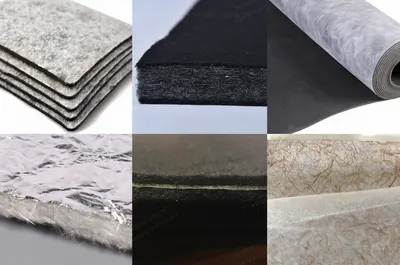

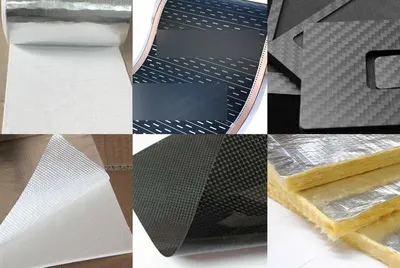

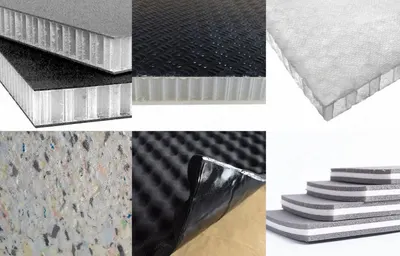

    1. Carbon fiber, ceramic fiber felt, glass fiber, prepreg, aerogel felt, sound insulation cotton, aramid fiber, honeycomb panel, graphene, foam, insulation cotton, non-woven fabric, hot melt film, PP glass fiber film and others suitable for hot pressing materials.
  6. Optional Accessories
    1. Optional accessories available.
