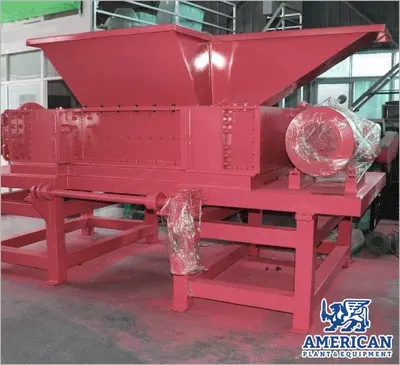

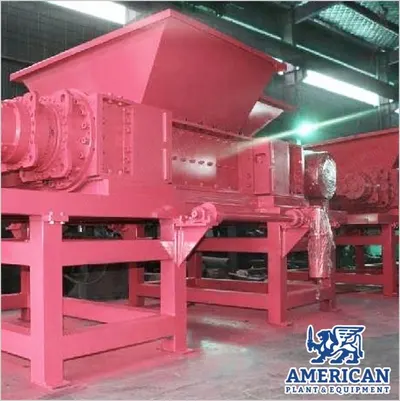

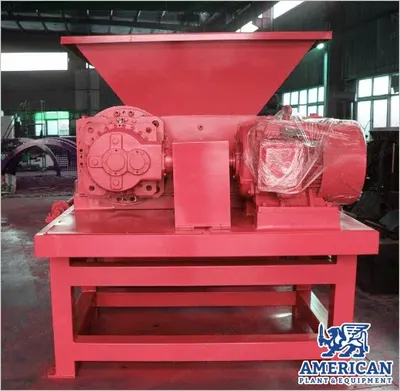

NovaStar, SG281, Double Shaft Shredder with Trommel Device, Width 1600mm, 1200 kg/hr, 150kW (New)

NovaStar, SG281, Double Shaft Shredder with Trommel Device, Width 1600mm, 1200 kg/hr, 150kW

Description

  1. Overview
    1. 1200 kg per hour (120 passenger tires per hour or 2 tires per minute, 1 tire takes 30 seconds).
    2. Somewhat less on truck tires.
    3. Can feed two tires at once.
    4. This machine will remove the bead from passenger tires but not from truck tires.
    5. Requires a complete 40 foot high cube container to ship.
  2. Specifications

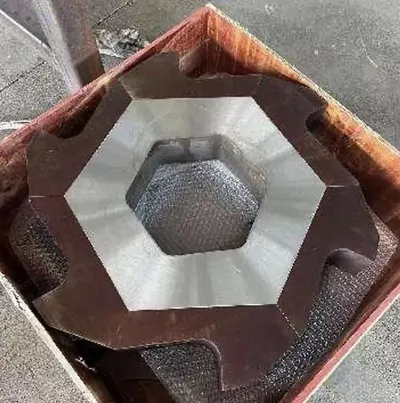

    1. Double shaft shredder with 26 knives, size Φ500 x 60 mm (O.D. x T), material 9Cr2Mo.
    2. 26 spacers, size Φ280 x 60 mm (O.D. x T), material 45C steel.
    3. 2 shafts, size Φ220 x 2500 mm (O.D.), material 42CrMo.
    4. Chamber dimensions: 1580 x 950 mm (L x W).
    5. Motor power: 75 kW x 2 sets, Wanan brand.
    6. Reducer: P13 planet type x 2 sets, Tongli brand.
    7. Voltage: 220V or 440V as per client requirement.
    8. Weight: 15,000 kg.

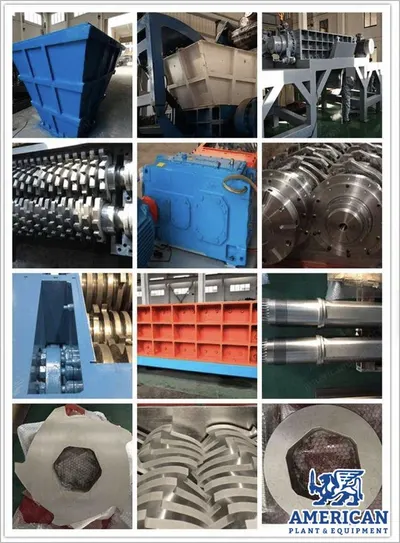

  3. Main Components
    1. Gear motor from Wananmotor.
    2. Rotary blade material: 9Cr2Mo detachable type, with excellent toughness and abrasion resistance, HRC 55-58.
    3. Rotary blade material: Bao Steel - 40Cr/42CrMo.
    4. Main structure: Q345 steel from Bao Steel.
    5. PLC: Siemens / Schneider.
    6. Control panel: Siemens Smart Line series 7 inch touch screen.
    7. Bearing and couplings from Hrbin/HWL.

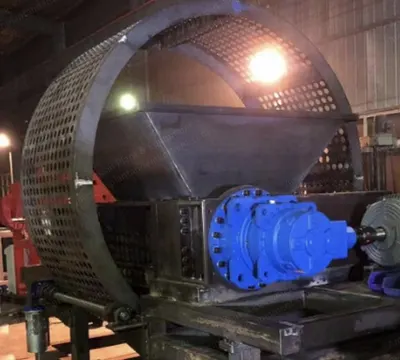

    8. Trommel: width 1100 mm, diameter 2580 mm, perforations 50 mm.
  4. Optional Parts (Extra Cost)
    1. XP motor: dust-proof and explosion-proof motor.

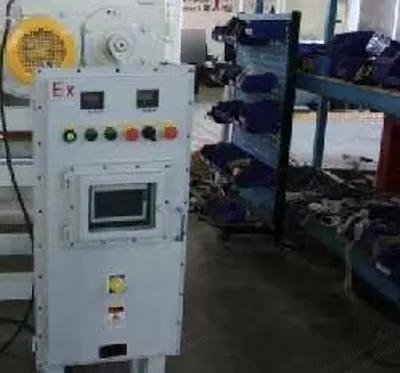

    2. XP controller: dust-proof and explosion-proof electrical cabinet.
    3. Input or output conveyor: designed per client request.
  5. Design and Structure
    1. The heavy duty rotating moving knife (with high crushing efficiency) and fixed knife are cast alloy steel, strong, long service life, thick iron frame plate thick, to high torque resistance, very strong, easy to weld in desired shape, low maintenance cost, economical and durable.

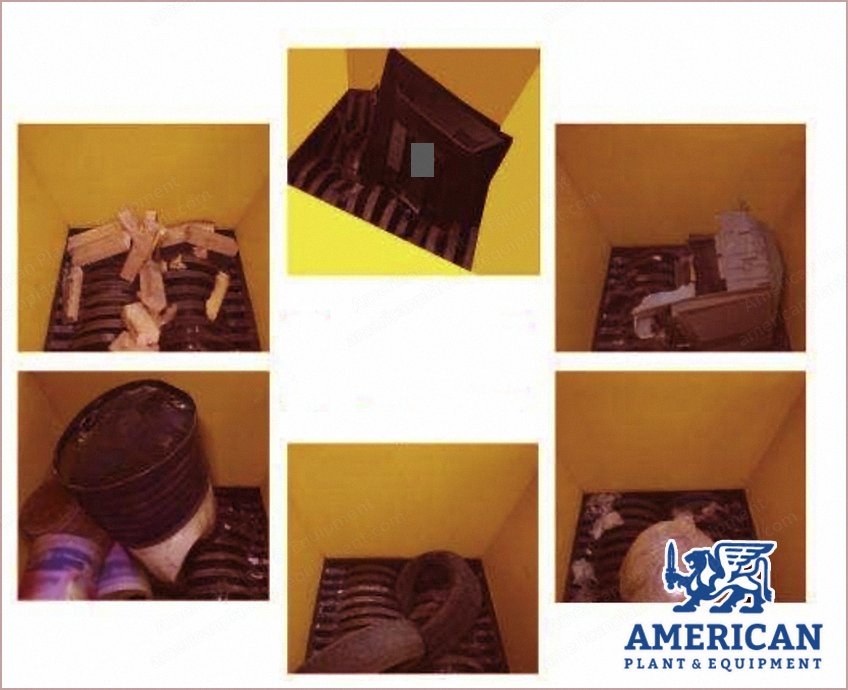

    2. The production is according to the actual density and shape of the material to be shredded.

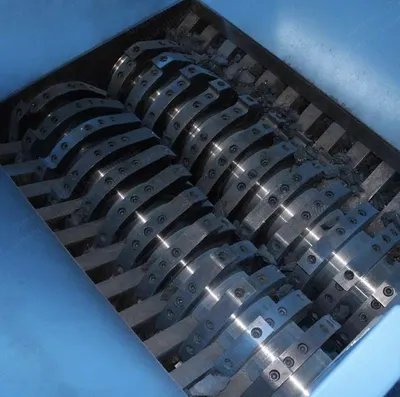

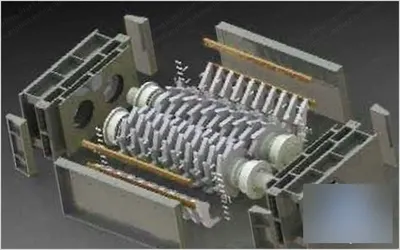

    3. The chamber includes rotary blades (replaceable), spacers, shafts, and the shredder chamber.
    4. Users can customize the shredding machine cases and feed hopper according to the production requirements.

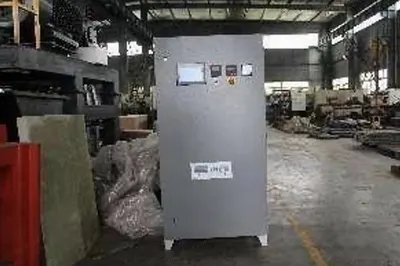

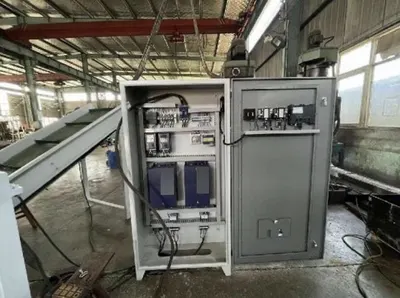

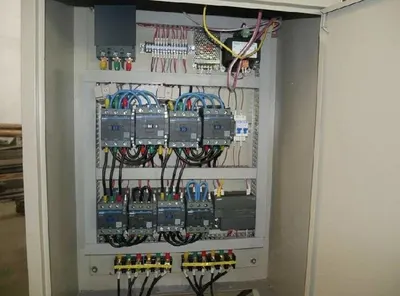

  6. Control Panel Details
    1. The display screen is a 7-inch Siemens touch screen SmartLine series, with precise touch and real-time control.
    2. Controls the machine's forward rotation, reverse rotation, and the conveyor belt (optional). It is programmable.
    3. The drive will automatically reverse when it encounters jammed material during operation, ensuring that the machine will not damage the motor due to overloading.
    4. The operation screen is easy to learn and practical.
  7. Recommendations
    1. We suggest you add a conveyor to feed the tires, otherwise the operators cannot do it.
