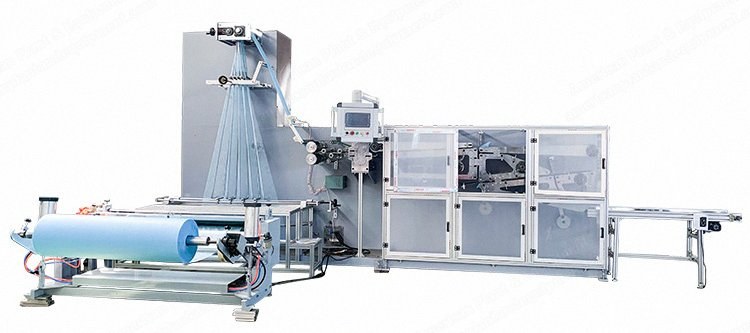

Fully automatic machine to produce disposable bed sheets and bath towels using nonwoven fabrics (spunlace nonwoven).
The complete process from feeding to finished products is fully automated, with high efficiency and low cost.
The bath towel folding machine can connect with a packing machine.
Main Technical Parameters
Material width: 300-1000 mm
Product length: 500-1000 mm
Production speed: 80-100 m/min
Power: 10 kW
Power supply: 380 V, 50 Hz
Machine size: 5580 x 4702 x 2535 mm (L x W x H)
Raw material diameter: ≤ 800 mm
Machine weight: 1500 kg
Machine Speed and Dimensions
Machine speed: 80 to 100 m/min
Towel unfolded width: 300 to 1000 mm
Towel unfolded length: 300 to 2000 mm
Machine Advantages

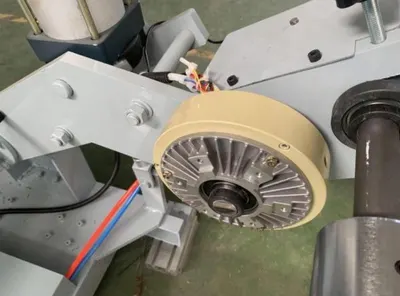

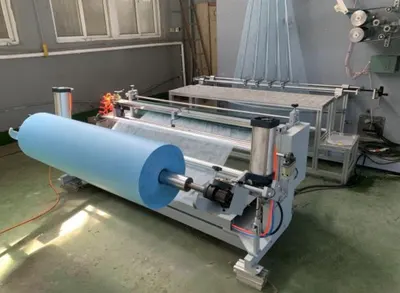

Raw material unwinding: Equipped with an automatic cylinder feeding system, which saves manpower. The magnetic powder tension control system automatically controls the constant tension operation of the roll.

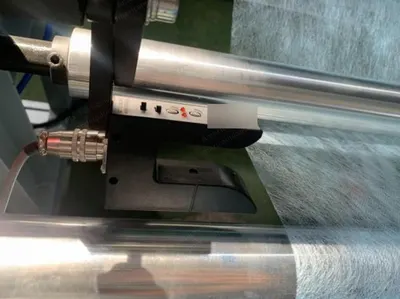

Automatic correction unit: Equipped with a deviation correction device, which can automatically correct materials that are not neatly wound.
Transmission system: Includes a conveyor belt, and is driven by a servo motor and a high-precision synchronous wheel behind it.
Curved support roller: Unique curved roller design ensures smooth and wrinkle-free operation of non-woven fabrics.

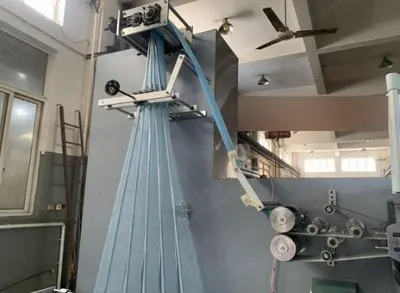

Vertical M-fold: Using multiple folding rods, the folding method is flexible and adjustable.

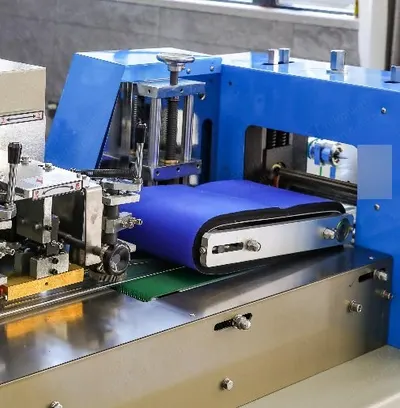

Cutting roller: Servo motor to control cutting roll, the length is flexible and adjustable, and edge is flat.
Horizontal fold: Three consecutive folds in the horizontal direction, the folding parameters can be adjusted in touch screen.
Touch screen: There is a computer touch screen, and the operating interface is simple and clear.

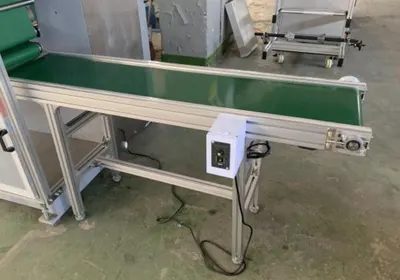

Finished product delivery: Incorporating speed-adjusting conveyor belt, the equipment is equipped with counting function.

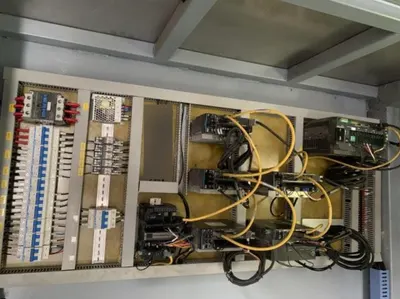

Electric control panel: Independent and safe electric control box, which can be opened and operated quickly and safely.
PLC: PLC and servo driver.
Bath Towel Packing Machine Specifications
Bag packaging type: Back sealing and three side sealing
Packaging product size: length 40-500 mm, width 20-150 mm, height 1-50 mm
Packing film width: (packaging product width + height) x 2 + 30 mm
Bag length: packaging product width + height + 25 mm + sealing width
Max packing film width: ≤ 340 mm
Max diameter of packing film: ≤ 380 mm
Packaging film material: BOPP, composite film, coating paper, aluminum coating, pure aluminum film
Packing speed: about 50-120 bags/min
Power supply: 220 V, 50 Hz, 5.0 kW or as per customer
Machine size: 4600 x 870 x 1350 mm
Machine weight: 700 kg
Packing Machine Advantages

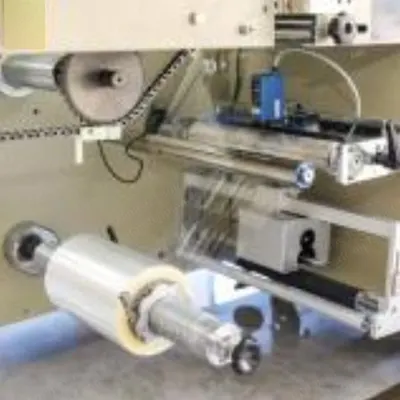

Multiple transition rolls are used to ensure film tension and stability; a coding machine is installed at the film traction position to print batch numbers and production dates.
Double wheel traction lengthens the heat-sealing copper block to ensure good packaging heat sealing.
Fixed traceless molding machine, easy to adjust.
Foam exhaust device ensures sealing effect while emptying the air inside the bag for easy packaging.
Install brushes at the discharge port to ensure orderly discharge of finished products.
Human-machine interface, convenient and quick parameter setting. Supports multiple languages and can be customized according to customer requirements.
