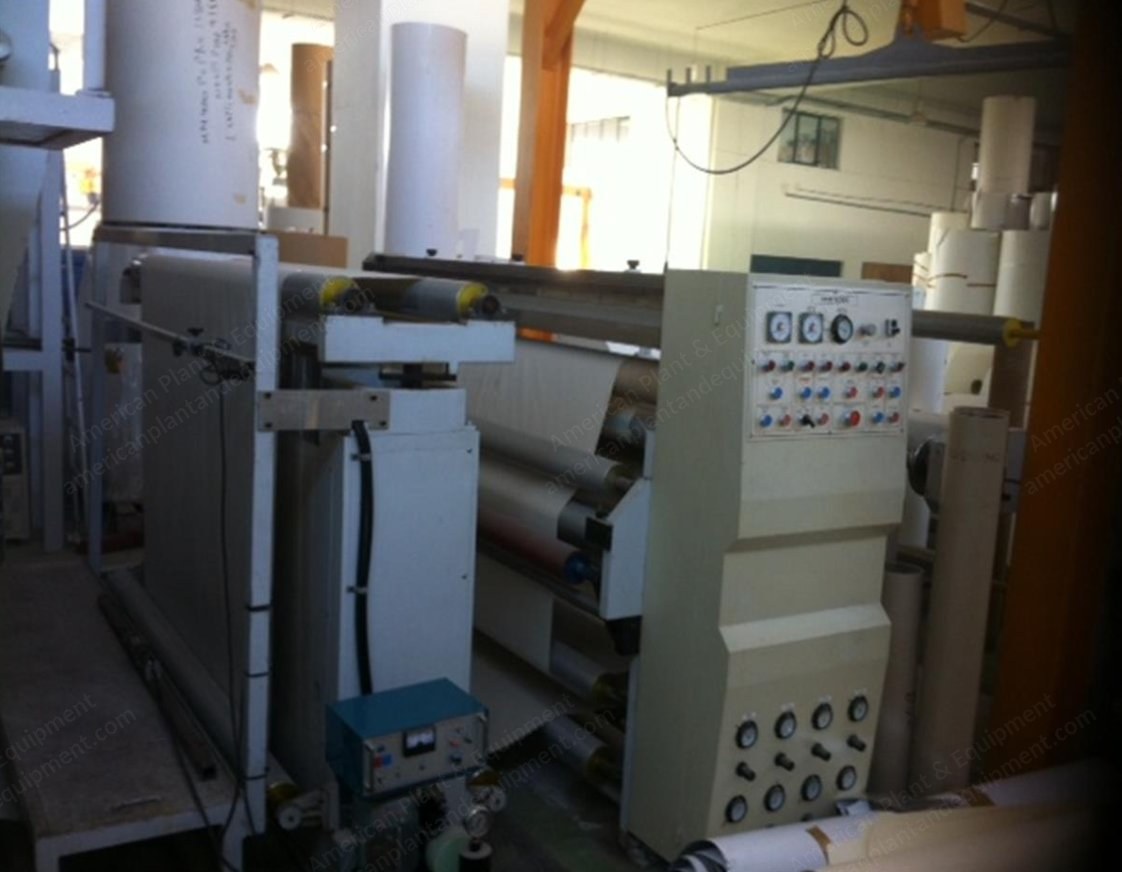

Tecnoconverting, EC31, 2001, 1500mm Width, 1 Rotogravure Primer, 1 Extrusion Coating Unit, 1 Extrusion Lamination Unit

Tecnoconverting, EC31, 2001, 1500mm Width, 1 Rotogravure Primer, 1 Extrusion Coating Unit, 1 Extrusion Lamination Unit

Description

  1. Overview
    1. Coating/lamination line with one rotogravure primer, one extrusion coating unit, and one extrusion lamination unit.
    2. Width: 1500 mm.
    3. Year: 2001.
    4. Speed: 200 mpm.
  2. Coating/Lamination Unit 1: Rotogravure Coating Unit
    1. Two drying hoods, each 2.5 m length.
    2. Drying with two oil heaters.
    3. Each hood with dedicated heater and blower.
  3. Coating/Lamination Unit 2: Extrusion Lamination Unit
    1. Volumetric doser.
    2. Extruder 90 mm diameter.
    3. Extrusion die 1.6 m width with internal deckling for width regulation 500 mm on each side (total 1000 mm).
    4. Chill roller 700 mm diameter.
    5. Lamination nip.
  4. Coating/Lamination Unit 3: Extrusion Coating Unit
    1. Volumetric doser.
    2. Extruder 90 mm diameter.
    3. Extrusion die 1.6 m width with internal deckling for width regulation 500 mm on each side (total 1000 mm).
    4. Chill roller 700 mm diameter.
  5. Treatment
    1. Two corona treatments Mero.
  6. Unwinders
    1. Primary unwinder: turret, max diameter 1000 mm.
    2. Secondary unwinder: double shaft, max diameter 1000 mm.
    3. Third unwinder: turret, max diameter 1000 mm.
  7. Rewinder
    1. Turret non-stop.
  8. Product Structure / Materials
    1. Paper up to 250 gsm.
    2. Film up to 250 micron.
