The machine is composed of motor, hydraulic system, drag hook, pull mouth, body, etc.
The motor drives the hydraulic system and hydraulic cylinder; the drag hook is connected to the pull rod of the oil cylinder.
The action of the oil pump and oil cylinder makes the drag hook reciprocate.

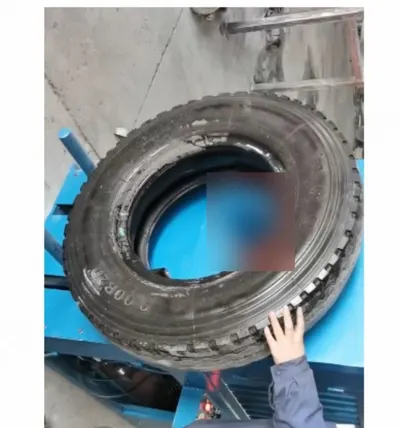

Place the tire on the pull mouth, stretch the pull hook to the pull mouth, hook the steel wire of the inner ring of the tire and press the start button.
Due to the pulling force of the hydraulic cylinder, the rubber is torn on the sidewall and the wire is pulled out of the tire sides due to the effect of the pull mouth, achieving smooth separation.
Instructions For Use
When using the machine, please add hydraulic oil first; the oil tank should be filled up to two-thirds of the oil tank for the best working condition.
When using this machine to pull the steel wire of the inner ring of the tire, remember to pull it forcibly.
When the upper part of the tire is concave during the pulling process, the oil cylinder should be moved back, and the tire is pulled when it returns to the normal state.
Vulnerable Parts
Seals and sealing rings in the hydraulic system.
Technical Specifications
Voltage: 200V/380V/415V/others
Motor power: 15kW
Oil pump flow rate: 120 liters per minute
Oil cylinder size: Φ180mm
Maximum pull force: 120 tons
Working pressure: 18MPa
Operation mode: manual/automatic
Applicable range: Φ650 to 1200mm
Output: about 20 to 50 pieces/hour
Cooling method: air cooling
Dimensions: L 4300 x W 1100 x H 1600mm
Machine weight: 2,000kg

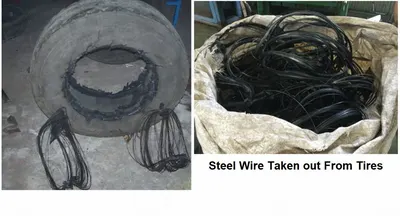

Final Tires Steel Wires After Drawing
Quantity: 1
