Description

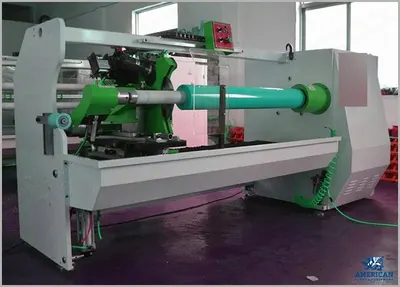

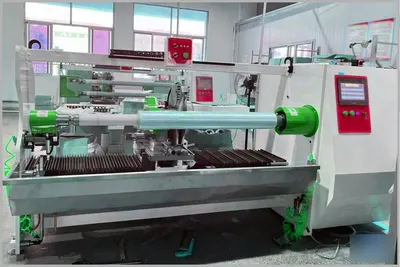

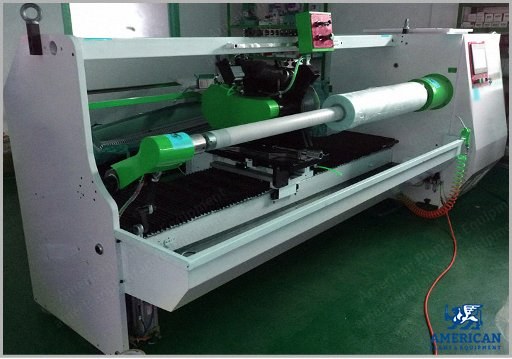

Automatic cutting and baloney slitting machine for adhesive and heavy-duty tapes (single blade for single shaft), cutting width 3mm to 1600mm
Watch the video on YouTube here!
Details:
Introducing our high-performance Automatic Cutting and Baloney Slitting Machine, designed specifically for adhesive and heavy-duty tapes. This versatile machine, featuring a single blade for a single shaft, offers precision cutting widths ranging from 3mm to 1600mm. Perfect for various tapes, including PVC, masking, double-sided, OPP packaging, and foam tapes, this machine ensures efficiency and accuracy for all your slitting needs.
Item | Description | Qty | Amount |
Application | Suitable for various tape such as PVC, masking, double side,OPP packaging and foam tapes…etc. | ||
Specifications | |||
Roller Width | 1700mm | ||
Cutting Width | 3mm to 1600mm | ||
Paper Core I.D. | Min.26mm – max.77mm changeable | ||
Cutting Diameter | Max.400mm | ||

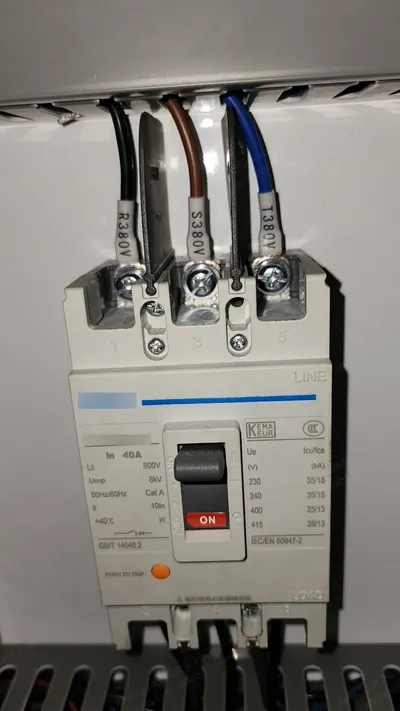

Power | Please advise. Standard is: 440V, 60Hz, 3 phase | ||
Air | 5 kg/cm2 (prepared by user) | ||
Standard Accessories | NSK bearing | ||

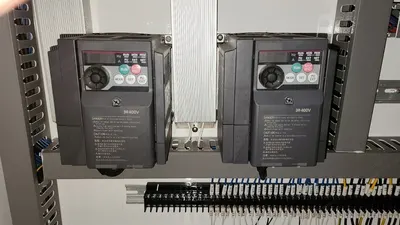

Main Motor | AC 3 HP x 6P inverter control | 1 set | Simen |
Width Setting | Servo motor driven | 1 set | |
Cutter Stand | Ball spline | 2 pcs | |
Ball Screw | 1 pc | PMI | |
Cooling System | Automatic water supply | 1 set | |
Cutting Shaft | For paper core I.D. 3” | 1 pce | |
Shaft Sleeve | PE tube 75.4mm (spare) | 5 pcs | |
Circular Blade | 4mm x 1” I.D. x 350mm O.D (C-type) maxiuam cutting O.D. 300 | 1 pce | |
Knife Holding Plate | 120 / 160 | 1 set | |
Cutter Guard | Connected type movable small plate | 1 set | |
Knife Motor | AC 2 HP x 6P inverter control | 1 set | Japan Mitsubishi |
Knife Angle Adjustment | Angle change by servro motor driven +/- 8 degree | 1 set | |
Shaft Ending Rack | Automatic control | 1 set | |
Cutting System | Servo motor driven | 1 set | |
Maintenance Kit | Tools & instruction | 1 set | |

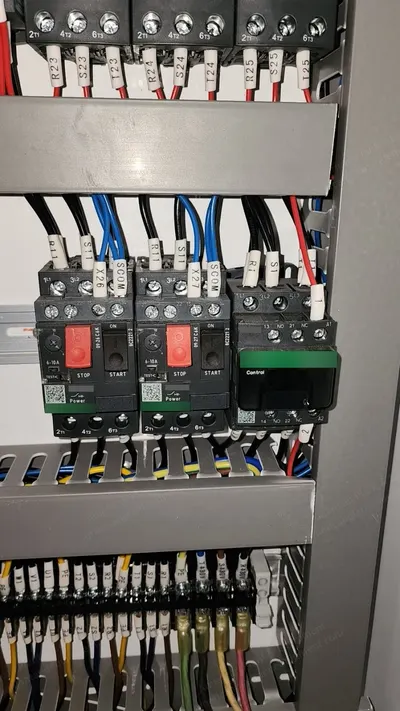

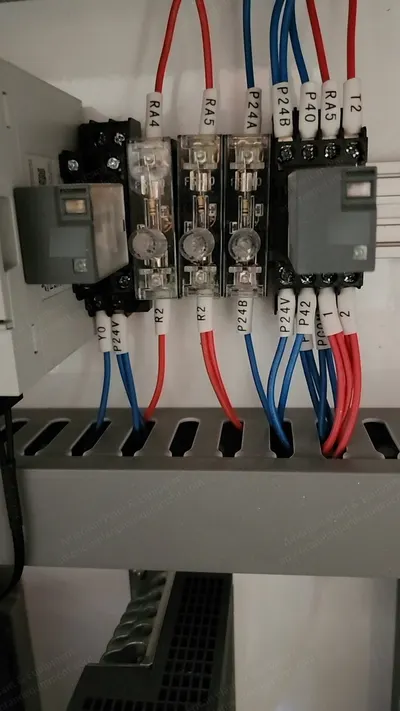

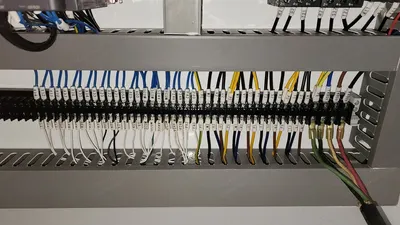

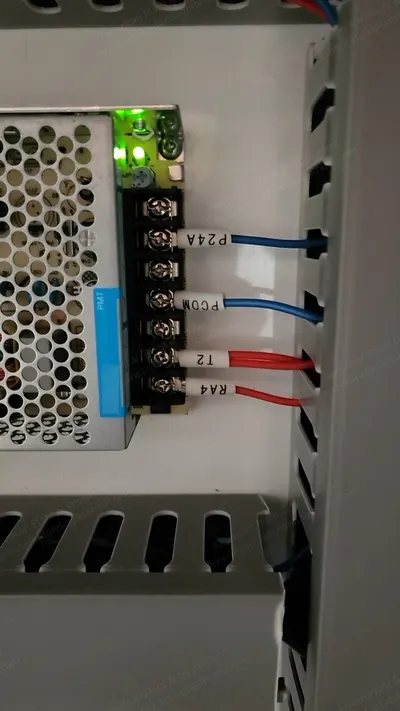

Electricial Section | |||

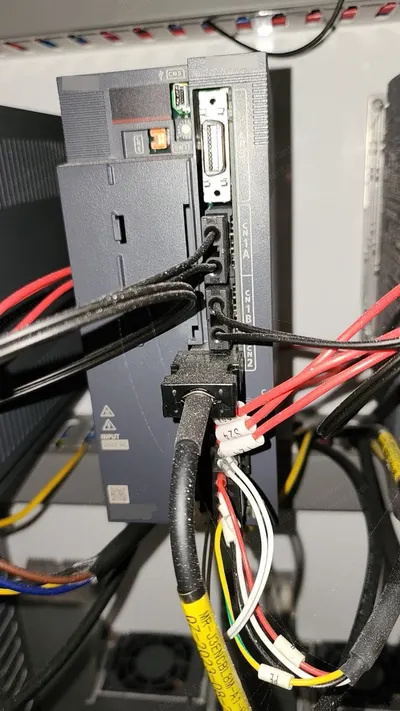

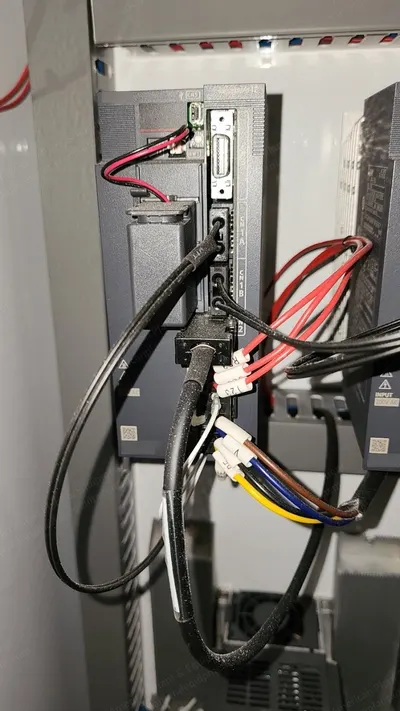

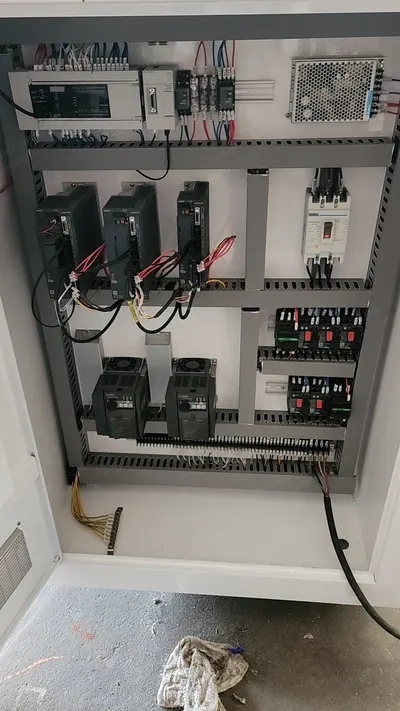

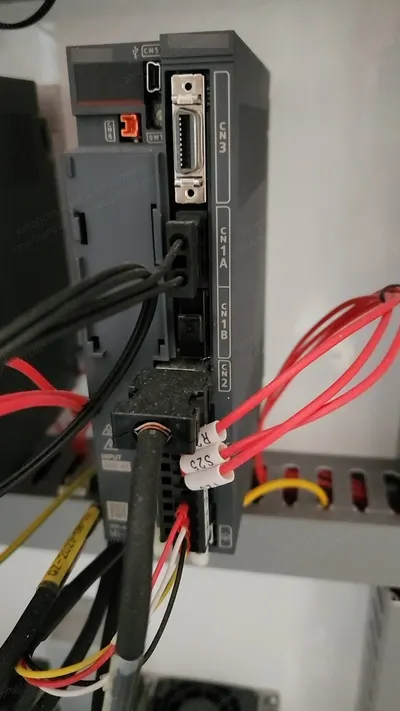

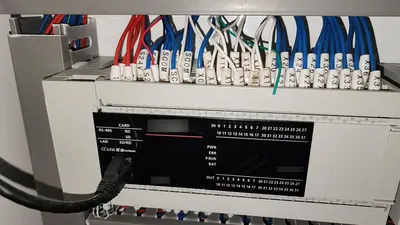

Control System | PLC - 3 servo motor system | 1 set | Japan Mitsubishi 5U |
20 sets of width setting | 1 set | ||
Auto. Error Detective System | 1 set | ||

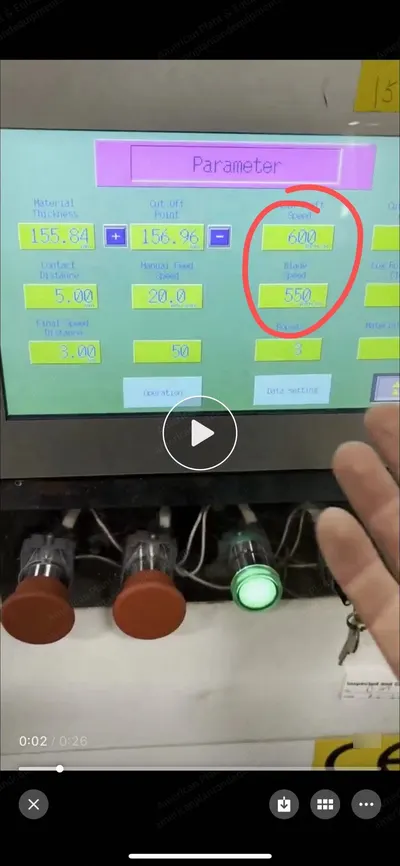

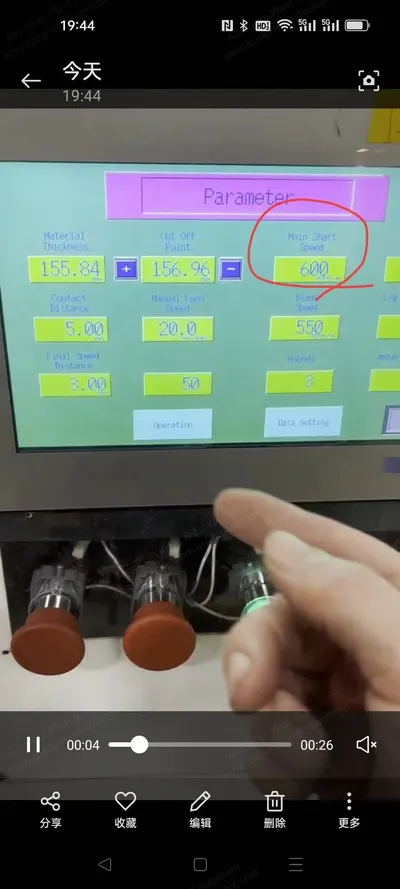

Display Mode | Touch panel screen | 1 set | Janpan Muji |
Length x Width x Height | 3340 x 1450 x 1450 | ||
Weight | N.W 1400kg G.W 1600kg | ||
Total Power | 5.0kW |

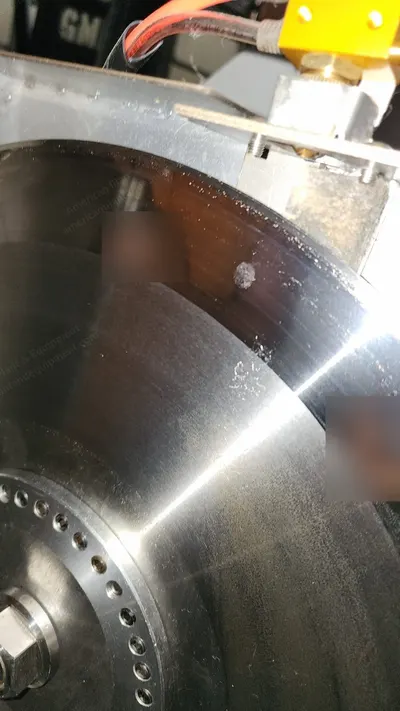

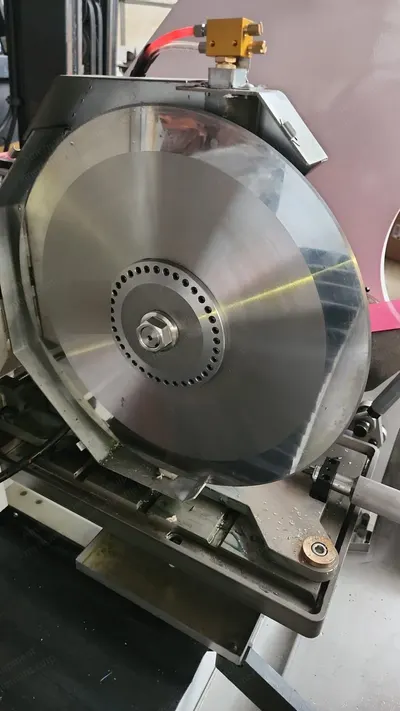

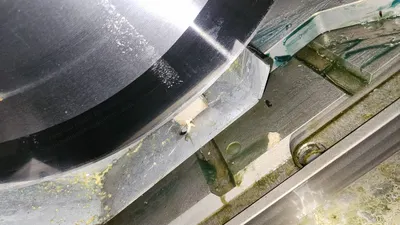

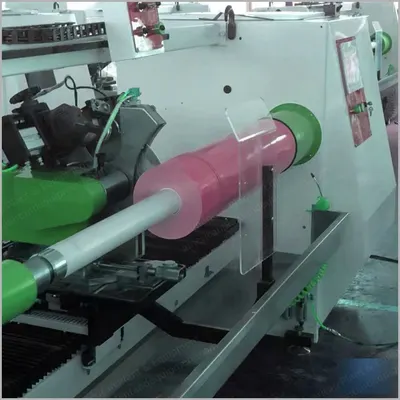

The hose seen on top of the blade in the pictures is for spraying lubricant and also for the blade grinding function.
Our Automatic Cutting and Baloney Slitting Machine is the ideal solution for cutting and slitting adhesive and heavy-duty tapes with exceptional precision. With adjustable cutting widths from 3mm to 1600mm and compatibility with a variety of tape types, this machine enhances productivity and reliability in your tape processing operations. Contact us today for more information, pricing, and pictures using the reference number YY-2698.
Quantity: 1
