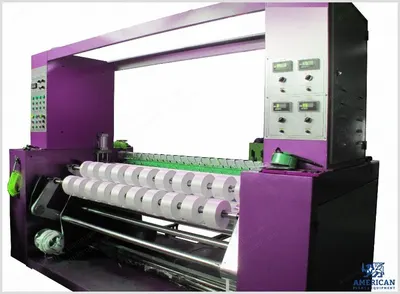

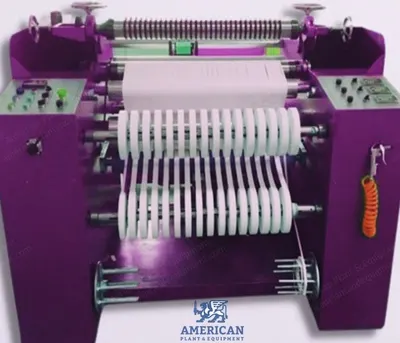

NovaStar, SR289, Slitter Rewinder, 1620mm Slitting Width, Heating and Cold Blades, 120m/min (New)

NovaStar, SR289, Slitter Rewinder, 1620mm Slitting Width, Heating and Cold Blades, 120m/min

Description

  1. Overview

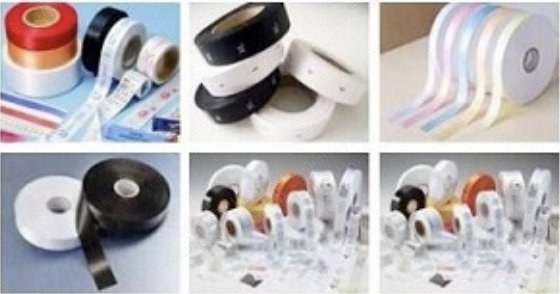

    1. Application: hot blade cutting system for woven labels, cold blade cutting system for non-woven labels
    2. Features: easy operation, stable working and long life
  2. Specifications
    1. Maximum slitting width: 1600mm (can be customized from 800mm to 3000mm)
    2. Minimum slitting width: 10mm
    3. Unwinding diameter: 600mm
    4. Rewinding diameter: 300mm
    5. Maximum slitting speed: 100 m/min
    6. Unwind core shaft: air shaft
    7. Unwinding core size: 25.4mm (1 inch), 40mm (1.5 inch) or 76mm (3 inch)
    8. Unwinding core quantity: 1 pc
    9. Rewinding width: min. 10mm for heat blade, min. 20mm for circle cold blade
    10. Rewinding diameter: 300mm (maximum)
    11. Rewinding core size: 25.4mm (1 inch), 40mm (1.5 inch) or 76mm (3 inch)
    12. Rewinding core type: air shaft
    13. Rewinding core quantity: 2 pcs
    14. Blade type: heating straight blade and circle cold blade
    15. Blade quantity: 40 pcs
    16. Mechanical speed: 120m per min
    17. Working speed: 30 to 80m per min
    18. Power supply: 480V, 3 phases, 0.6Mpa
    19. Machine dimension: 2540mm x 2800mm x 1200mm
    20. Packing dimension: 2700mm x 1550mm x 1910mm
    21. Gross weight: 1.8 tons
    22. Weight: 1800.0
    23. Slitting width: 1620mm
  3. Standard Accessories
    1. Converter: 1 pc
    2. Motor: 1 pc
    3. Magnetic powder brake: 1 pc
    4. Pneumatic element
    5. Heating blade: 40 pcs
    6. Cold circle blade: 40 pcs
    7. Rewinding air shaft: 2 pcs
    8. Unwinding air shaft: 1 pc
    9. Precision bearing: several
    10. Photoelectric edge guide: 1 set
    11. Photoelectric meter counter: 1 pc
    12. Operation manual: 1 pc
    13. Electric element: 1 pc
    14. Blade spacer: 1 set
    15. Light: 2 pcs
    16. Work tool: 1 set
  4. Optional Accessories
    1. Heating straight blade: 1 set
    2. Heating element: 1 pc
    3. Extra cold blade: 1 pc
    4. 25.4mm (1 inch) air shaft: 1 pc
    5. 40mm (1.5 inch) air shaft: 1 pc
    6. 76mm (3 inch) air shaft: 1 pc
