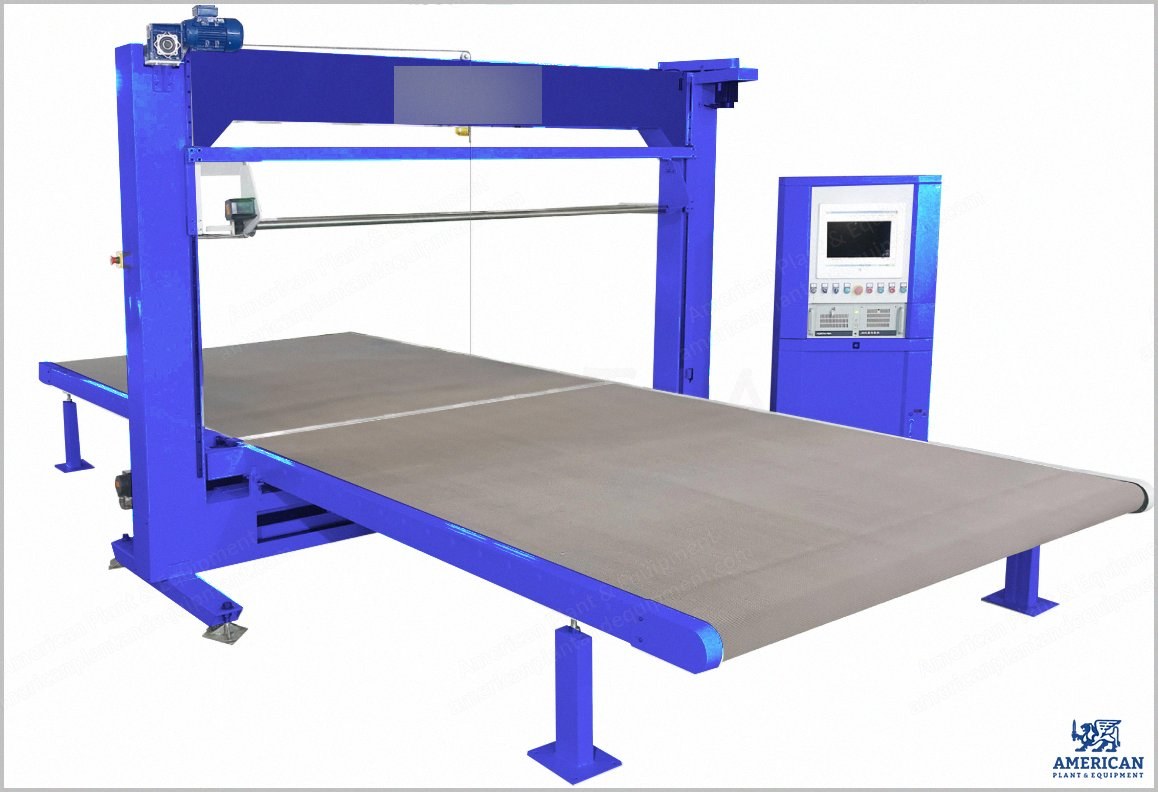

NovaStar, FN524, Vertical Blade Cutter, 1630x3x0.6mm Blade, 3000x2200x1300mm Max Block Size (New)

NovaStar, FN524, Vertical Blade Cutter, 1630x3x0.6mm Blade, 3000x2200x1300mm Max Block Size

Description

  1. Specifications
    1. Power: 5 kW, 380 VAC, 3 phase, 50 Hz (or 220 V, 3 phase, 60 Hz).
    2. Machine size: 6200 mm L x 3250 mm W x 2500 mm H.
    3. Control cabinet size: 760 x 670 x 1800 mm.
    4. Maximum block size: 3000 mm L x 2200 mm W x 1300 mm H.
    5. Blade size: 1630 x 3 x 0.6 mm, teeth blade.
    6. Speed: 0 to 6.3 m/min.
    7. Accuracy: ±1 mm.
    8. Minimal cutting size: 5 mm.
    9. Minimal cutting radius: 10 mm.
    10. Weight: 2100 kg.
  2. Critical Parts
    1. Servo motor: Mitsubishi.
    2. Servo drive: Mitsubishi.
    3. Computer: Advantech industrial computer.
    4. Guide rail and slider: Hiwin.
    5. Contactor, relay: Schneider.
    6. Bearing for critical parts: Nsk.
    7. Limit switch: Omron.
  3. Software and System
    1. System: Licensed Windows 7.
    2. Software for drawing: Licensed Zw cad.
    3. Cutting software: Proprietary.
    4. Autocad drawing with nesting.
  4. Cutting Performance
    1. Cutting speed: 4 to 5 meters/min.
