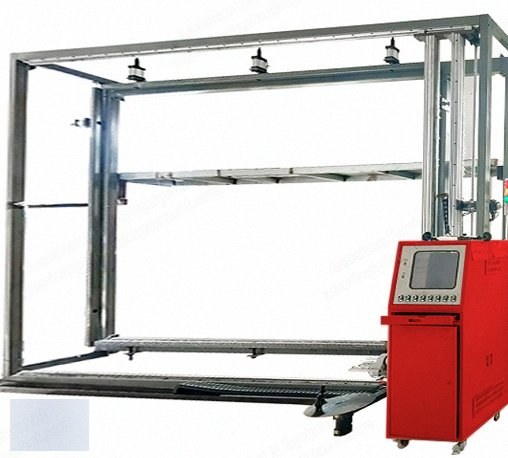

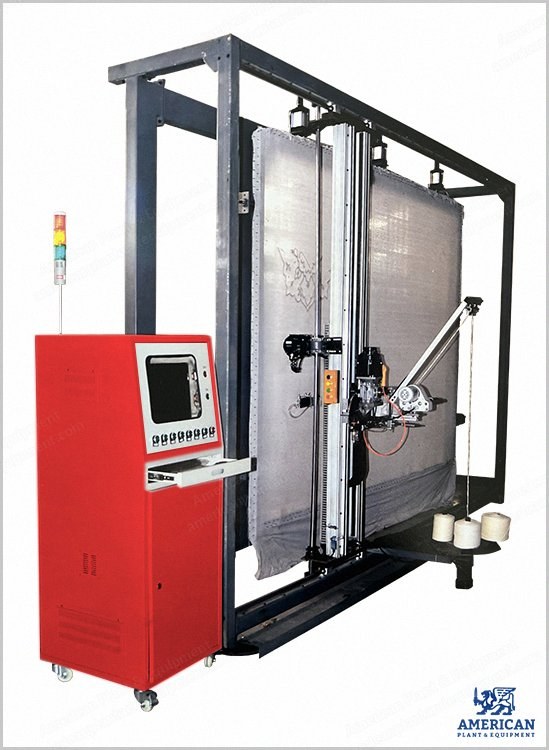

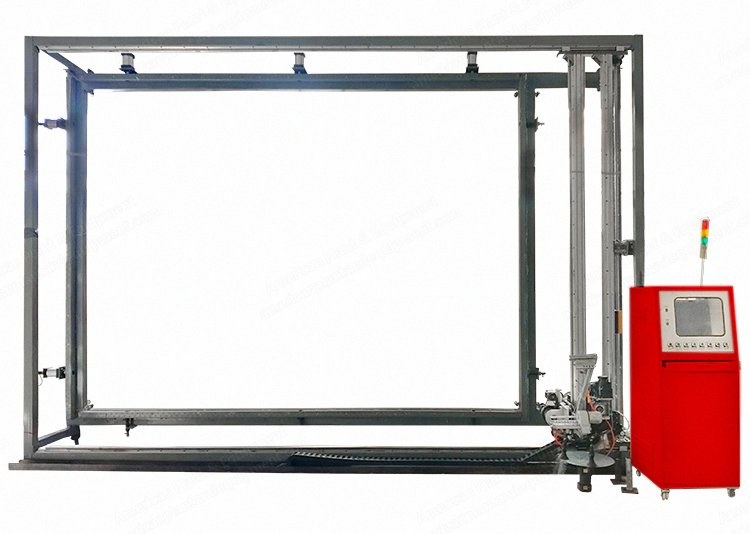

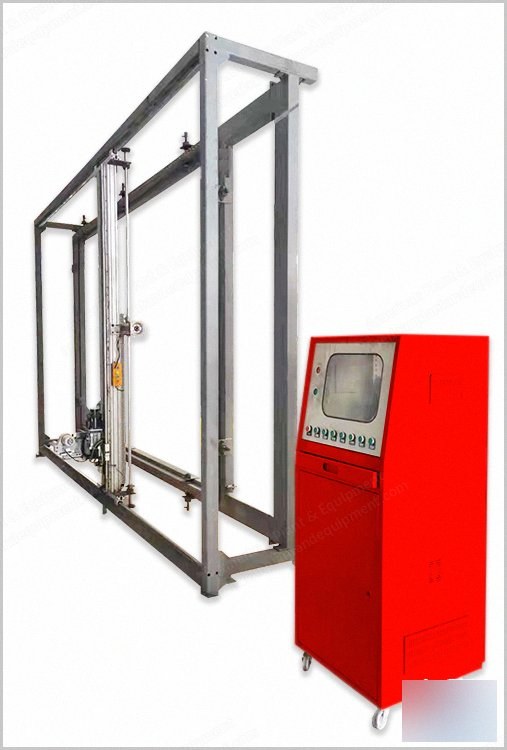

NovaStar, TF114, Robot Carpet Tufting Machine, 9 Colors, Loop and Cut Pile (New)

NovaStar, TF114, Robot Carpet Tufting Machine, 9 Colors, Loop and Cut Pile

Description

  1. Overview
    1. Robot tufting machine is computer controlled
    2. Can do both loop pile and cut pile
    3. Easy to install and operate
  2. Technical Specifications
    1. Power: 220 or 380 V
    2. Frequency: 50 Hz or 60 Hz
    3. Electrical draw: 1500 VA/W
    4. Tufting frame: 1300 x 3000 mm / 800 x 1200 mm / 2500 x 4000 mm, etc.
    5. Drawing format: DST, DSB
    6. For yarns: wool, acrylic, cotton, polyester, PP, artificial grass, etc.
    7. Color changes: 9 colors
    8. Tuft capacity: 1.5 to 2.0 square meters/hour
    9. Control panel: digital panel
    10. Machine size: 650 x 260 x 150 cm / 280 x 210 x 150 cm, etc.
    11. Machine weight: 18000 kgs
  3. Digitizing Panel
    1. Shows the tufting status continuously
    2. Can adjust needle gauge, pile height, tufting speed, etc.
    3. English language
  4. Double Control System
    1. Machine controls to stop or change yarn
    2. Adjust the tuft point, etc.
