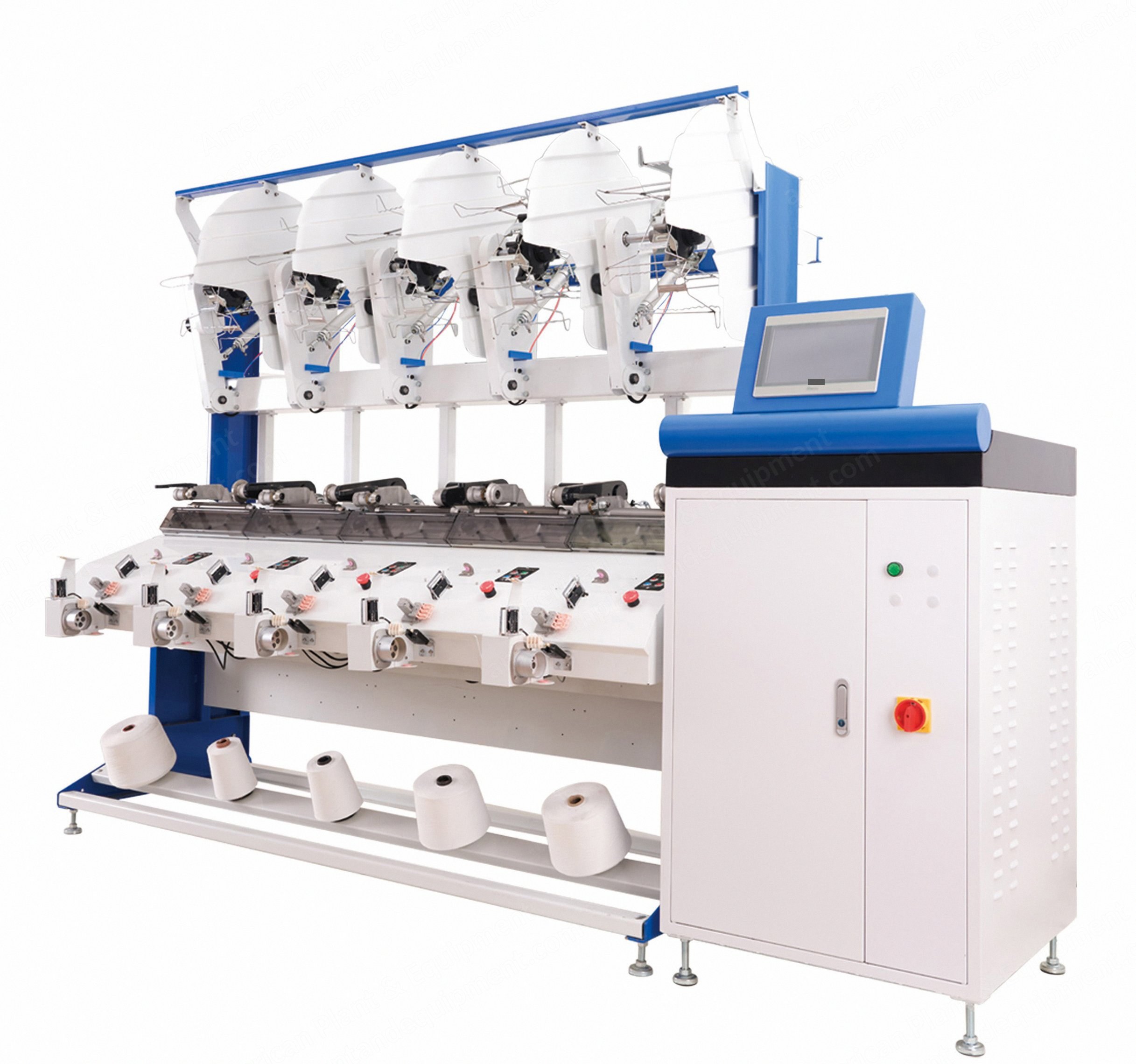

Description Overview Digital precision winding machine (skein to cone or cone to cone) Newly launched yarn winder using advanced active unwinding control technology Incorporates Italian advanced online tension technology Converts passive spinning yarn and cone yarn with independent intelligent winding motor and feed motor drive Optimizes yarn winding speed, tension, pressure, and super feed for uniform yarn Technical Parameters Total controlling panel: computer digital processing terminal Winding type: precision winding/digital winding Machine speed: 1200/min (technology speed depends on technological parameter) Winding form: vertical/bevel edge, amplitude can be adjusted at will Traverse length: 25 to 260 mm, stepless arbitrary setting Packaging diameter: maximum 320 mm Packaging weight: maximum 10 kgs (depends on yarn type) Application yarns: acrylic fibers, polyester, staple fiber, single filament yarn, filament yarn, cotton, linen, stretch yarn, and elastic yarn Layout: single side machine Spindle/section: 4 spindles Minimum/maximum spindles: 4/60 heads Spindle pitch: 500 mm Driving: single spindle dependent driving Power consumption: 150 W/spindle Winding bobbin: bobbin/cone Auxiliary assembly: oil/waxing device Winding density: online arbitrary settings Overall dimensions: (L x W x H) mm 2030 x 920 x 1960
