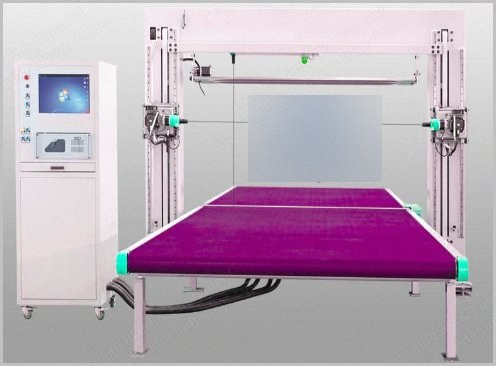

NovaStar, FN528, CNC Horizontal & Vertical Oscillating Blade Cutting Machine, 3000x2200x1300mm Capacity, 11kW (New)

NovaStar, FN528, CNC Horizontal & Vertical Oscillating Blade Cutting Machine, 3000x2200x1300mm Capacity, 11kW

Description

  1. Overview
    1. Maximum processing length: 3.000 mm
    2. Maximum processing width: 2.200 mm
    3. Maximum processing height: 1.300 mm
    4. Processing precision: ±0.5 mm
    5. Minimum cutting radius: 5 mm
    6. Cutting speed: 4 to 5 meters/min
  2. Blade Specifications
    1. Vibration blade speed: 0 to 10 m/min
    2. Horizontal blade size: L2.460 x W3 x T0.6 mm
    3. Vertical blade size: L1.600 x W3 x T0.6 mm
  3. Control and Software
    1. Operation system: IPC + Windows 7
    2. Autocad drawing with nesting
  4. Utilities and Power
    1. Compressed air: 6 bar
    2. Voltage: 220/380/415 V; 50/60 Hz; 3P
    3. Total power: 11 kW
  5. Safety and Diagnostics
    1. Blade break protect: installed
    2. Self-diagnosis system: installed
  6. Physical Specifications
    1. Total weight: 2.500 kg
    2. Machine external size: L6.700 x W3.300 x H2.400 mm
  7. Warranty
    1. Warranty: 1 year
  8. Specifications
    1. Capacity: 3000mm x 2200mm x 1300mm
    2. Weight: 2500
    3. Dimensions: 6700x3300x2400mm
