Wartsila, 12V32E, 1994, 4.15MW, HFO Fuel, 50Hz, 6 Sets

Description

  1. Overview

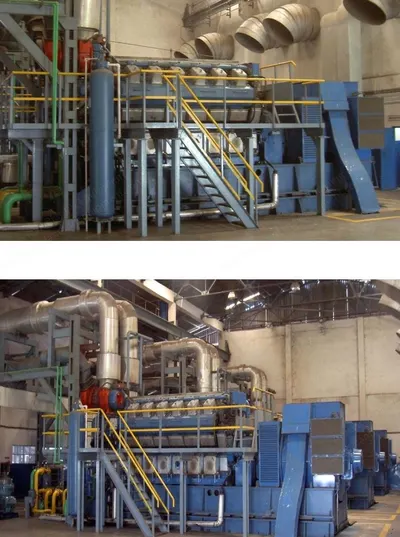

    1. Six Wartsila 12V32E diesel engines
    2. Rated capacity: 4,150 kW each
    3. Fuel: HFO
    4. Specific fuel consumption: 217.56 gms/kWh
    5. Specific lube oil consumption: 1.03 gms/kWh
    6. Current lube oil brand: Shell Argina X 40
    7. Lub oil separator make: Alfa Laval

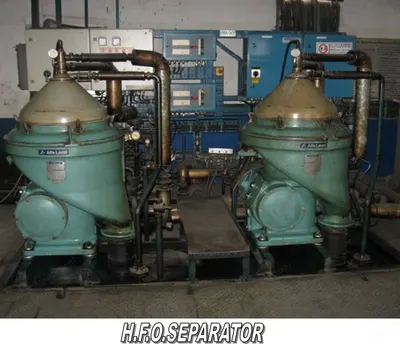

    8. Fuel oil purifier: Alfa Laval
    9. Waste heat recovery boiler: 3 x Thermax 1.82 tph (genset R1, R2, R3)
    10. Cooling towers: Paharpur
    11. Cooling water pumps: Kirloskar, 250 m³/hr
  2. Generator
    1. Generator manufacturer: Leroy Somer
    2. Generator model: LSA58, S6-8P
    3. Voltage: 11,000 V
    4. Frequency: 50 Hz
    5. Speed: 750 rpm
    6. Rating: 5,000 kVA / 4,000 kW
    7. Design ambient: 50 degC
  3. Transformer
    1. Transformer manufacturer: Compton Greaves
    2. Rating: 10 MVA / 8 MW
    3. Date of manufacture: 1995
    4. HV: 83,000
    5. LV: 6,600
    6. MPS HV: 140/175
    7. MPS LV: 750/875
    8. Impedance: 7.16%
    9. Vector: YNd1
    10. Six transformers included

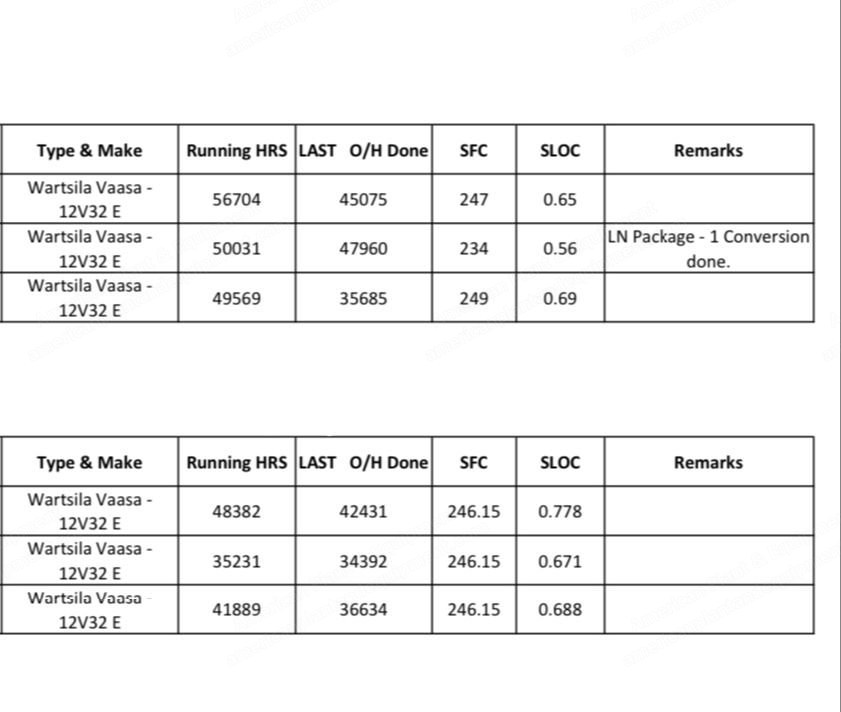

  4. Operation Overview
    1. Engine N1: manufactured 1994, commissioned 1995, 2020 total hours 56,704, last major overhaul at 45,075 hours, next major 32k hour overhaul due at 7,296 hours
    2. Engine N2: manufactured 1994, commissioned 1995, 2020 total hours 50,044, last major overhaul at 47,960 hours, next major 32k hour overhaul due at 13,956 hours
    3. Engine N3: manufactured 1994, commissioned 1997, 2020 total hours 49,570, last major overhaul at 35,686 hours, next major 32k hour overhaul due at 14,430 hours
    4. Engine R1: manufactured 1995, commissioned 1995, 2020 total hours 48,877, last major overhaul at 42,430 hours, next major 32k hour overhaul due at 15,123 hours
    5. Engine R2: manufactured 1995, commissioned 1995, 2020 total hours 35,682, last major overhaul at 33,309 hours, next major 32k hour overhaul due at 28,318 hours
    6. Engine R3: manufactured 1995, commissioned 1996, 2020 total hours 42,101, last major overhaul at 36,636 hours, next major 32k hour overhaul due at 21,899 hours
