Grassi, Sirio 200, 2019, 2200mm Working Width, Automatic Foam Insertion

Grassi, Sirio 200, 2019, 2200mm Working Width, Automatic Foam Insertion

Description

  1. Overview

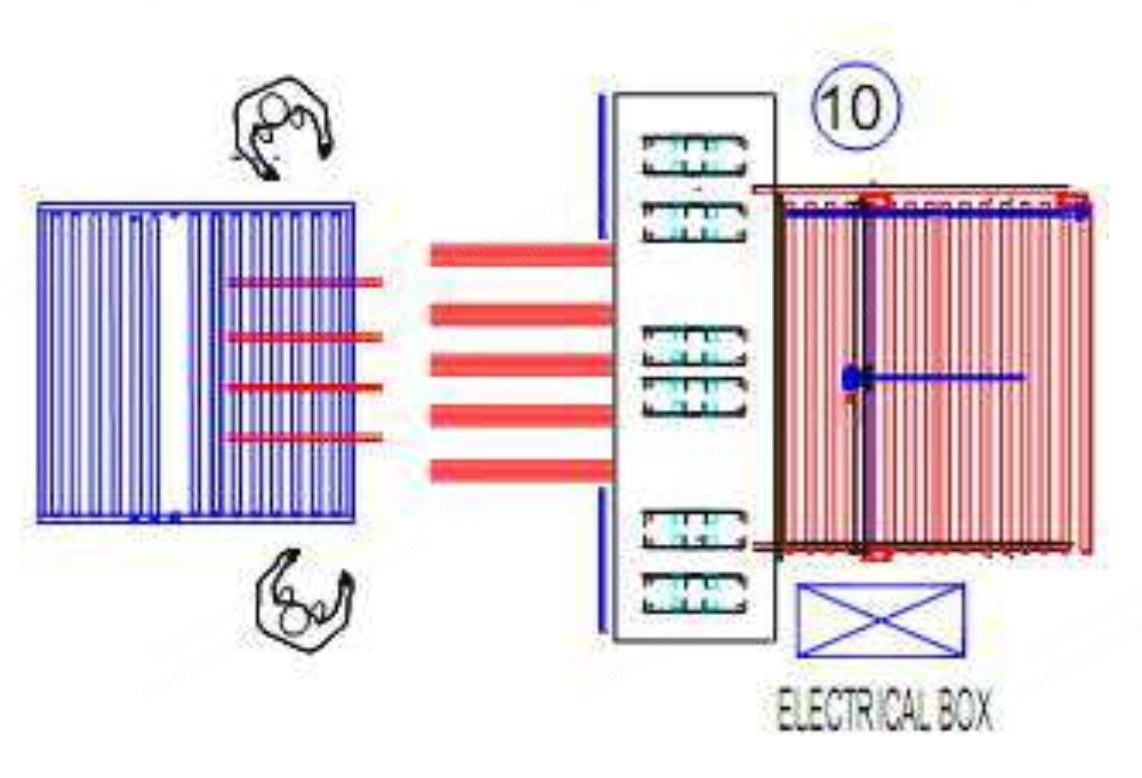

    1. Electronic automatic filling machine for cover and automatic insertion of foam layers into covers, machine n. 10, brand Grassi (Italy), working width 2200 mm (86 inches).
    2. Model Sirio 200.
    3. Innovative automatic filling machine for inserting foam layers into covers closed on 2 or 3 sides.
    4. The special structure composed of motorized conveyor belts and steel bars allows uniform pressure on the entire surface of the foam, completely eliminating friction during insertion of the covers.
    5. The filler machine mod. “Sirio 200” is complete with a loading roller with motorized automatic centering device to facilitate the insertion of slabs of large dimensions and considerable weight.
    6. An extra fixed guide will be installed in the middle to guarantee proper product filling.
    7. The machine is highly reliable and robust, particularly suited to big production and predisposed for work continuously 24 hours a day.
    8. Designed to be rebuilt and inserted in a production line with other machinery.
  2. Specifications
    1. Year: 2019.
    2. Voltage: 480 V, 60 Hz.
    3. Power: 13 kW.
    4. Phases: 3+T.
    5. Weight: 2200 kg.
    6. Maximum working area: from 700 mm to 2200 mm.
    7. Maximum height: from 5 cm to 40 cm.
    8. Kind of materials: any kind of foam layers.
    9. Production: 2 cycles per minute.
    10. Dimensions: 3500 x 3500 x H2200 mm (with all optional).
    11. Weight: 3250 kg.
    12. Power: 8 kW.
    13. Power supply: 480 V AC, 60 Hz, 3 phases.
    14. Air pressure: 6/8 bar.
    15. Serial number: 1279.004.19
  3. Included Components
    1. Electronic automatic filling machine for tricot, model Sirio 200.
    2. Motorized modular conveyor 2 way, model Z 200 S.
  4. Features
    1. Introducer and centering: roller conveyor for introducer and centering foam; automatic sizes control and full self-managing; predisposed for being connected in line with other machines.
    2. Filler module: automatic filler module to insert foam layers in covers with full autonomy operation; special tapes for uniform pressing over the entire surface; pressing system translating with self-alignment of the measures; module for predisposition of cover closed on 2 or 3 sides and automatic penetration filling-out.
    3. General control panel: control panel featuring a touch-screen monitor to select and customize production time, program control, and set all functions of the machine; switch on/off for internet connection and remote control.
    4. Tele-assistance modem: modem for total remote control with tele-assistance; switch on/off on touch-screen monitor.
  5. Operation
    1. The operators load covers closed on 2 or 3 sides and foam layers arriving from other machines are directly filled.
    2. Press “start button” or “automatic photocells control” for centering and positioning of the foam.
    3. Automatic impulsion of the foam inside the material with managing of the side on the whole surface.
    4. The machine automatically introduces layers inside the cover and extracts the finished product, ready to be packed.
