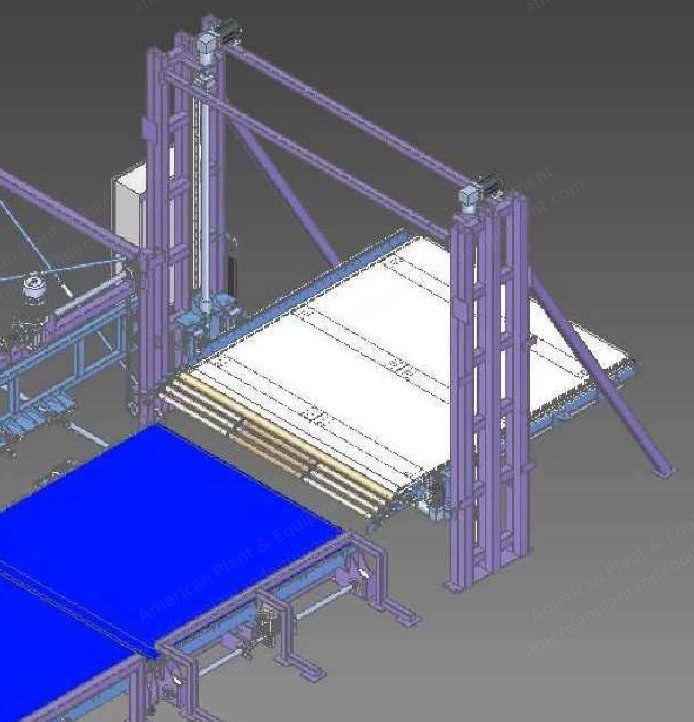

Grassi, G220PRO, Automatic Unstacker for Foam Layers, Working Width 2200mm, Motorized 2-Way

Grassi, G220PRO, Automatic Unstacker for Foam Layers, Working Width 2200mm, Motorized 2-Way

Description

  1. Overview
    1. Automatic unstacker for foam layers, motorized 2-way, with integrated belt for fast alignment.
    2. Machine number: 1.
    3. Brand: Grassi (Italy).
    4. Working width: 2200 mm (86 inches).
    5. Model: G220PRO.
    6. Automatic programmable stacker/unstacker for foam layers suitable to move different types of products.
    7. Working cycle controlled by photocells with automatic selection of layers according to production receipt setup.
    8. 2-way passage – entry to exit.
    9. Possibility to unstack several layers at once (up to max. 40 cm global height).
    10. Possibility to unstack 2 mattresses on the same layer (2 single size mattresses on one double size pallet) and feed them separately to downstream machine.
    11. Optical system for the recognition of measures with full autonomy unloading from one side to another.
    12. Special rollers/belted in order to grip properly material in full-automatic/independent operation.
    13. Sophisticated lifting and lowering system with recirculating ball screws to guarantee precision and rapidity, equipped on both sides.
    14. Control panel with display touch-screen 15" color multi-function with graphical interface and intuitive, complete with USB port to import/export data.
    15. Operating system: Windows.
    16. Operator control panel to set automatic or manual switching of layers, set programs.
    17. Production counters.
    18. High standard quality and useful flexibility increase production to your line.
  2. Machine G 220 Pro Realize
    1. Stack foam layers from one side to another / one on another.
    2. Stack foam layers on single / double pallet.
    3. Unstack foam layers from conveyors / belt / chains.
    4. Unstack foam layers from single / double pallet.
    5. Stack and position foam layers.
    6. Unstack and position foam layers.
    7. Feed assembling lines from one direction to another.
  3. Specifications
    1. Production: 30 second/cycle.
    2. Working surface: min. 600 x 1600 mm / max. 2200 x 2200 mm.
    3. Height: min. 20 mm / max. 400 mm.
    4. Weight of foam: from 10 kg to 100 kg.
    5. Height of stack: from 15 cm to 250 cm.
    6. Dimensions: standard 3.50 x 4.60 x h 3.50 m.
    7. Power: 6 kW.
    8. Power supply: 480 V – AC – 60 Hz – 3 phases.
    9. Air pressure: 6/8 bar.
