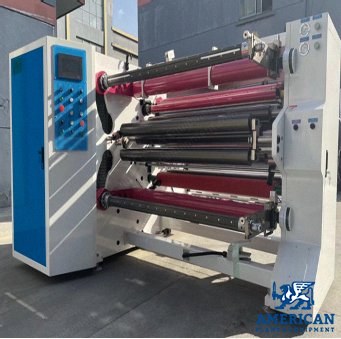

NovaStar, SR290, Double Shaft Slitting & Rewinding Machine, 2200mm Width, 300 m/min Speed (New)

NovaStar, SR290, Double Shaft Slitting & Rewinding Machine, 2200mm Width, 300 m/min Speed

Description

  1. Unwind Section
    1. Unwind base: integral shaft type movable base, 1 set
    2. Unwind shaft: pneumatic compressed shaft 3", 1 set
    3. Unwind brake: electromagnetic brake 20 kg, 1 set
    4. Unwind web tension: PLC diameter auto calculation, 1 set
  2. Rewind Section
    1. Rewind driver system: 3 motors in a system to control tension, 1 set, Japan Mitsubishi
    2. Rewind motor: A.C. motor 5 HP control by tension inverter, 1 set, Siemens
    3. Rewind system: pneumatic compressed shaft 3", 2 sets
    4. Rewind gap roller: position auto activating by PLC control, 1 set
    5. Trim remove device: strong blower tube with motor A.C. 5 HP, 1 set
    6. Spread roller: adjustable bowed roller 100 mm, 1 set
    7. Maintenance kit: tools & instruction, 1 set
  3. Electrical Section
    1. Control system: PLC programmable unit and Schneider inverter bus system, 1 set, Japan Mitsubishi
    2. Control panel: touch screen (for setting, tension, length, etc.), 1 set, French Schneider
    3. Rewind tension control: ultra-sonic detect diameter into PLC, to control E/A converter output tension, 2 sets
    4. Control panel box: connected control frame with, 1 set
  4. Slitting Knife
    1. Shear cutter: male knife stand roller, 1 set; female knife stand roller, 1 set
    2. Male knife set: male knife set 105 x 60 x 20T (movable), 20 sets
    3. Female knife: female knife sleeve O.D. 105 x I.D. 80 x T30 (movable), 20 sets
  5. Dimensions and Weight
    1. Length x width x height: 4000 x 1900 x 1600
    2. Net weight: 2200 kg; gross weight: 2400 kg
    3. Total power: 15 kW
  6. Specifications
    1. Voltage: Customized
    2. Capacity: 300 m/min
    3. Rewind diameter: 450mm
    4. Unwind diameter: 1000mm
