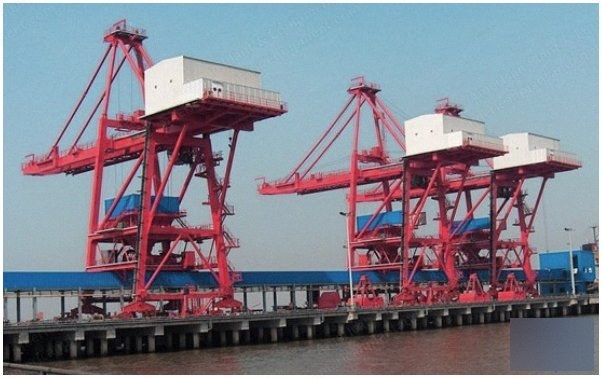

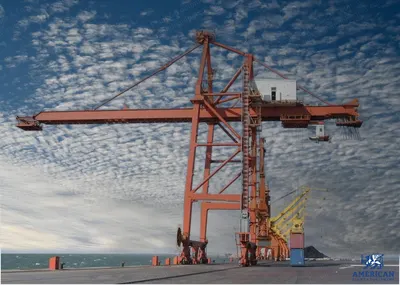

NovaStar, CI109, 120 Ton Capacity, 73m Outreach, 54m Lifting Height (New)

NovaStar, CI109, 120 Ton Capacity, 73m Outreach, 54m Lifting Height

Description

  1. Overview
    1. Quayside container gantry Crane system
    2. 120 ton lifting weight under lift spreader
    3. Lifting height above rail: 54 m
    4. Lifting height below rail: m
    5. Rail gauge: 50 m
    6. Base distance: m
    7. Outreach: 73 m
    8. Backreach: m
    9. Clear height of portal: 12 m
    10. Working class: A8
    11. Crane self-weight: 2000 t
  2. Rated Speeds
    1. Hoisting with full load: 90 m/min
    2. Hoisting only with spreader: 180 m/min
    3. Trolley traveling: 240 m/min
    4. Crane traveling: 45 m/min
    5. Boom hoist time: ≤ 5 min
  3. Wheels And Power
    1. Wheel number: 48
    2. Wheel load: 80 t sea side, 70 t land side
    3. Power sources: 3.3 kV / 50 Hz, 3 phase AC
    4. Control methods: cabin control with air conditioner
  4. Hoist Mechanism
    1. Hoist speed: 90 m/min
    2. Motor model: 1LE0001-3BC63-3 (Siemens)
    3. Motor power: 250 kW x 2
    4. Motor rotation: 990 rpm
    5. Reducer model: M L3PSF120-35.5 (1 set) SEW
    6. Reducer center distance: 1204 mm
    7. Brake: YP2-ED2000-60-500X30 (4 sets)
    8. Wire rope: 30NAT6 x 36W S+IW RC1770ZS/SZ
    9. Drum diameter: 960 mm (2 sets)
  5. Luffing Mechanism
    1. Luffing time: 5 min
    2. Motor model: 1LE0001-3AC53-3 (Siemens)
    3. Motor power: 110 kW
    4. Motor rotation: 985 rpm
    5. Reducer model: M 4PSF90-112 SEW
    6. Reducer center distance: 1047 mm
    7. Brake: YP2-ED800-60-500X30 (2 sets)
    8. Wire rope: 36NAT6 x 36W S+IW RC1770ZS/SZ
    9. Drum diameter: 1100 mm
  6. Trolley Travel
    1. Trolley speed: 240 m/min
    2. Motor model: 1LE0001-3AC03-3 (Siemens)
    3. Motor power: 75 kW
    4. Motor rotation: 986 rpm
    5. Reducer model: M 3PSF50-22.5 SEW
    6. Reducer center distance: 628 mm
    7. Brake: YP2-ED500-60-500X30 (3 sets)
    8. Wire rope: 20NAT6 x 36W S+IW RC1770ZS/SZ
    9. Drum diameter: 900 mm
  7. Crane Travel
    1. Crane speed: 45 m/min
    2. Motor model: KA107DRE180M 4 SEW
    3. Motor power: 15 kW x 8
    4. Motor rotation: 35 rpm
  8. Inverter Standard
    1. Hoisting mechanism: model 6SL3224-0CG41-3UA0, 1 set, CU250S-2
    2. Lifting mechanism: model 6SL3224-0CG41-3UA0, 1 set, CU250S-2
    3. Trolley mechanism: model 6SL3224-0CG38-8UA0, 1 set, CU240E-2
    4. Crane mechanism: model 6SL3224-0CG41-6UA0, 1 set, CU240E-2
    5. Voltage module: 1TE41-8AA3, 1 set
    6. Control unit: CU320-2, 6 sets
    7. Motor module: 1TE37-5AA3, 2 sets, hoisting
    8. Motor module: 1TE33-1AA3, 1 set, luffing
    9. Motor module: 1TE32-1AA3, 1 set, trolley
    10. Motor module: 1TE32-1AA3, 2 sets, Crane
  9. PLC Standard
    1. Input module: 6ES7 321-1FH00-0AA0, 3 units, Siemens
    2. Output module: 6ES7 322-1HH01-0AA0, 2 units, Siemens
    3. Voltage module: 6ES7 307-1KA01-0AA0 10A, 1 unit, Siemens
    4. Slave station: BT200M, 6ES7 153-1AA03-0XB0, 1 unit, Siemens
    5. 20 pin front connector
  10. Specifications
    1. Weight: 2000000
